Carbide end mills are essential tools in the world of machining, known for their durability and precision in cutting various materials. While the base material of these tools is already impressive, the application of coatings can significantly enhance their performance, longevity, and versatility. In this comprehensive guide, we will explore the world of coatings for carbide end mills, discussing their benefits, types, and how to choose the best coating for specific applications.

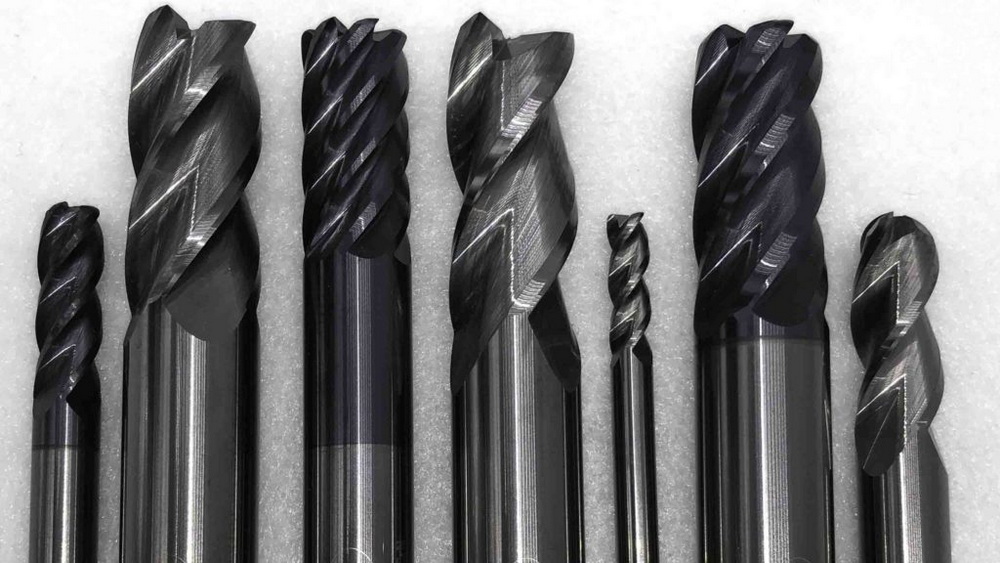

Before delving into coatings, it's essential to understand what carbide end mills are and why they are so widely used in machining operations. Carbide end mills are cutting tools made from cemented carbide, a material known for its exceptional hardness and wear resistance. The hardness of these tools typically ranges between 88 and 96 HRA degrees, making them suitable for a wide range of machining applications.
Carbide end mills come in various shapes, sizes, and configurations, each designed for specific cutting operations. They are used in milling machines to remove material from a workpiece, creating precise shapes, slots, and contours. The performance of these tools can be significantly enhanced by applying the right coating.
Coatings play a crucial role in improving the performance and lifespan of carbide end mills. Here are some key benefits of using coated end mills:
1. Increased Hardness: Coatings can significantly increase the surface hardness of the tool, making it more resistant to wear and abrasion.
2. Heat Resistance: Many coatings provide a thermal barrier, allowing the tool to withstand higher temperatures during machining operations.
3. Reduced Friction: Coatings can lower the coefficient of friction between the tool and the workpiece, resulting in smoother cutting and less heat generation.
4. Improved Chip Evacuation: Some coatings help prevent the build-up of material on the cutting edges, facilitating better chip evacuation.
5. Extended Tool Life: By protecting the carbide substrate, coatings can significantly extend the life of the end mill.
6. Higher Cutting Speeds: The improved performance allows for increased cutting speeds and feed rates, boosting productivity.
7. Versatility: Different coatings can optimize the tool for specific materials or applications, making it more versatile.
There are several types of coatings used on carbide end mills, each with its own set of characteristics and benefits. Let's explore some of the most common and effective coatings:
TiN is one of the most widely used coatings for carbide end mills. It offers a good balance of hardness and toughness, making it suitable for a variety of applications. TiN coatings are characterized by their distinctive gold color and provide:
◆ Increased surface hardness
◆ Good wear resistance
◆ Reduced friction
◆ Heat resistance up to about 600°C
TiN-coated tools are particularly effective when machining carbon steels, alloy steels, and cast iron.
TiAlN is a high-performance coating that has gained popularity in recent years. It offers superior heat resistance and hardness compared to TiN. Key features of TiAlN coatings include:
◆ Excellent high-temperature stability (up to 800°C)
◆ High hardness
◆ Good oxidation resistance
◆ Ability to form a protective aluminum oxide layer during machining
TiAlN-coated end mills are ideal for high-speed machining of hardened steels, stainless steels, and aerospace alloys.
AlTiN is a variation of TiAlN with a higher aluminum content. This coating offers:
◆ Even higher heat resistance (up to 900°C)
◆ Increased hardness
◆ Excellent wear resistance
◆ Superior performance in dry machining applications
AlTiN-coated tools are particularly effective when working with hard materials like tool steels and nickel-based alloys.
TiCN combines the properties of TiN and TiC (Titanium Carbide) to create a coating with:
◆ High toughness
◆ Good wear resistance
◆ Reduced friction
◆ Improved chip evacuation
TiCN coatings are often used for machining abrasive materials and in applications requiring high feed rates.
DLC coatings offer unique properties that make them ideal for specific applications:
◆ Extremely low coefficient of friction
◆ High hardness
◆ Good chemical inertness
◆ Excellent wear resistance
DLC-coated end mills are particularly effective when machining non-ferrous metals like aluminum, copper, and brass.
ZrN coatings provide:
◆ Good adhesion to the carbide substrate
◆ High toughness
◆ Resistance to built-up edge formation
◆ A distinctive light gold color
ZrN-coated tools are often used for machining non-ferrous metals and plastics.
AlCrN is a relatively new coating that offers:
◆ Excellent oxidation resistance
◆ High hot hardness
◆ Good thermal stability
◆ Superior performance in high-temperature applications
AlCrN-coated end mills are particularly effective for machining hard materials and in high-speed cutting operations.
Selecting the best coating for a carbide end mill depends on various factors, including:
1. Workpiece Material: Different coatings perform better with specific materials. For example, TiAlN and AlTiN are excellent for hard steels, while DLC is ideal for non-ferrous metals.
2. Cutting Conditions: Consider factors like cutting speed, feed rate, and whether you'll be using coolant or cutting dry.
3. Tool Life Requirements: Some coatings offer longer tool life but may be more expensive. Consider the trade-off between initial cost and long-term savings.
4. Machining Operation: The type of milling operation (e.g., roughing, finishing, high-speed machining) can influence the choice of coating.
5. Cost Considerations: While coated tools are generally more expensive than uncoated ones, the improved performance and longer life often justify the investment.
6. Environmental Factors: Some coatings are more environmentally friendly than others, which may be a consideration for some operations.
To help guide your choice, here are some recommendations for specific applications:
◆ For general-purpose steel machining: TiN or TiCN
◆ For hardened steels: TiAlN or AlTiN
◆ For high-speed machining of tool steels: AlCrN
◆ TiAlN or AlTiN for their high heat resistance and hardness
◆ TiN or TiCN for their good wear resistance and chip evacuation properties
◆ DLC or ZrN for their low friction and resistance to built-up edge formation
◆ AlTiN or AlCrN for their high-temperature stability and wear resistance
◆ TiAlN, AlTiN, or AlCrN for their excellent heat resistance and hardness at high temperatures
◆ AlTiN or AlCrN for their ability to form protective oxide layers at high temperatures
When using coated carbide end mills, it's important to adjust your machining parameters to take full advantage of the coating's properties. In general, coated tools allow for:
1. Higher Cutting Speeds: The improved heat resistance and reduced friction of coated tools often allow for increased cutting speeds. For example, a TiAlN-coated end mill might run 20-30% faster than an uncoated carbide tool.
2. Increased Feed Rates: The enhanced wear resistance and toughness of coated tools can support higher feed rates, improving overall productivity.
3. Extended Tool Life: Proper use of coated tools can significantly extend tool life, reducing downtime for tool changes and lowering overall tooling costs.
4. Dry Machining: Some coatings, particularly AlTiN and AlCrN, perform exceptionally well in dry machining conditions, potentially eliminating the need for coolant in certain applications.
5. Improved Surface Finish: The reduced friction and better chip evacuation provided by coatings can lead to improved surface finishes on the workpiece.
To maximize the benefits of coated carbide end mills, proper maintenance and care are essential:
1. Proper Storage: Store coated tools in a dry, clean environment to prevent damage to the coating.
2. Careful Handling: Avoid dropping or mishandling coated tools, as this can chip or damage the coating.
3. Regular Inspection: Periodically inspect the cutting edges for signs of wear or coating failure.
4. Regrinding Considerations: If regrinding is necessary, be aware that it will remove the coating from the cutting edges. Some coatings can be reapplied after regrinding, while others cannot.
5. Cleaning: Clean tools properly after use, following manufacturer recommendations to avoid damaging the coating.
The field of tool coatings is continuously evolving, with ongoing research and development aimed at creating even more effective and specialized coatings. Some trends to watch for include:
1. Nano-structured Coatings: These coatings offer improved hardness and toughness at the nanoscale level.
2. Multi-layer Coatings: Combining different coating materials in layers to achieve optimal performance characteristics.
3. Self-lubricating Coatings: Developments in coatings that release lubricants during machining, further reducing friction and heat generation.
4. Environmentally Friendly Coatings: As environmental concerns grow, there's a push towards developing coatings with less environmental impact.
5. Application-Specific Coatings: More specialized coatings designed for very specific materials or machining conditions.
Choosing the best coating for carbide end mills is a critical decision that can significantly impact machining performance, tool life, and overall productivity. While there isn't a single "best" coating that suits all applications, understanding the properties and benefits of different coatings allows machinists and engineers to make informed decisions based on their specific needs.
TiAlN and AlTiN coatings stand out for their versatility and high-performance characteristics, making them excellent choices for a wide range of applications, particularly when machining harder materials or in high-speed cutting operations. For non-ferrous metals, DLC coatings offer unparalleled performance. Meanwhile, traditional coatings like TiN and TiCN continue to provide reliable performance for general-purpose machining.
As machining technologies advance and new materials are developed, the importance of selecting the right coating for carbide end mills will only increase. By staying informed about coating technologies and carefully considering the specific requirements of each machining operation, manufacturers can optimize their processes, improve product quality, and ultimately achieve greater success in their machining endeavors.
Remember, the best coating for your carbide end mills will depend on your unique combination of workpiece materials, machining conditions, and performance requirements. Don't hesitate to consult with tooling experts or conduct trials to find the optimal coating for your specific applications. With the right coating, your carbide end mills can achieve new levels of performance, productivity, and cost-effectiveness in your machining operations.
