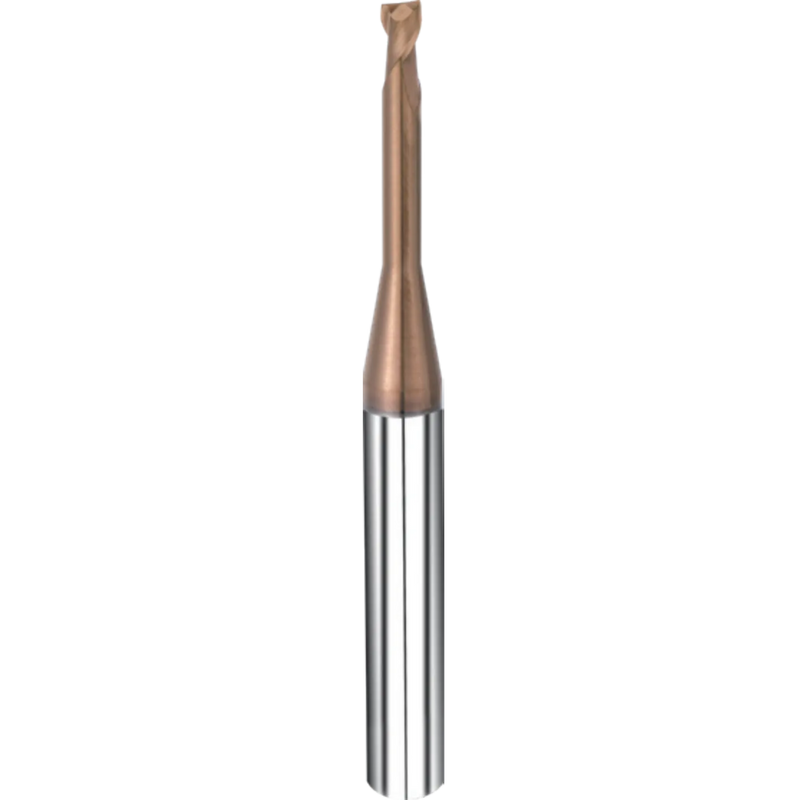

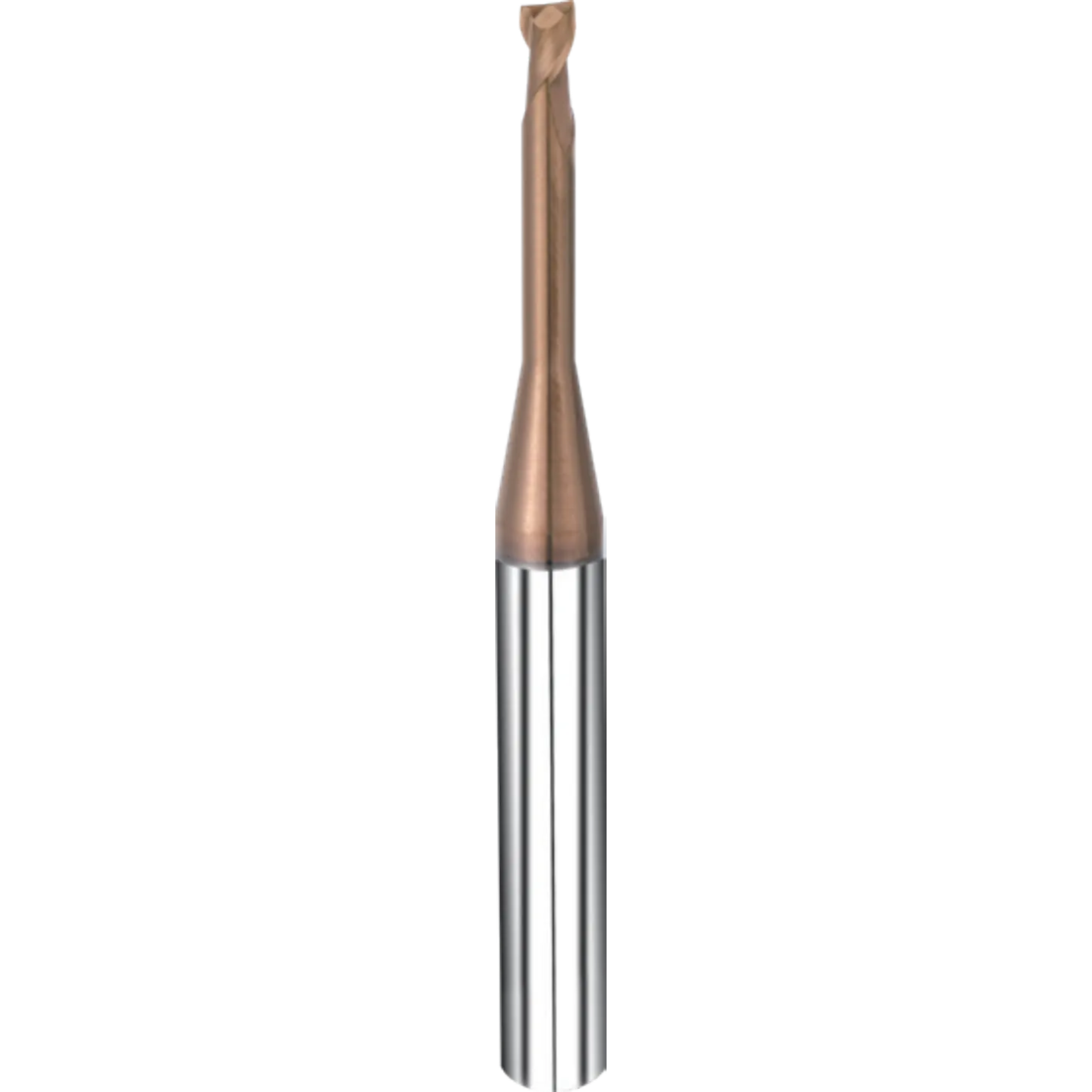

VS680 Small Diameter is suitable for high-speed machining of hardened steel (S136/SKD61/SKD11/DC53) and other high-hardness materials after heat treatment.
Outer Diameter (D) | Ball Nose Blade | Flat Blade Length (H) | Ball Nose Blade Length (H) | Shank Diameter (D) | Full Length (L) | （Blade Length + Clearance） | VS680 for steel |
0.2 | R0.1 | 0.3 | 0.2 | 4 | 50 | 1,2 | 73.5 |
0.3 | R0.15 | 0.5 | 0.3 | 4 | 50 | 1,2,3 | 72.8 |
0.4 | R0.2 | 0.6 | 0.4 | 4 | 50 | 2,3,4,6 | 72.8 |
0.5 | R0.25 | 0.7 | 0.5 | 4 | 50 | 2,3,4,5,6,8 | 72.8 |
0.6 | R0.3 | 0.9 | 0.6 | 4 | 50 | 3,4,5,6,8 | 72.8 |
0.7 | R0.35 | 1.0 | 0.7 | 4 | 50 | 3,4,5,6,8,10 | 72.8 |
0.8 | R0.4 | 1.2 | 0.8 | 4 | 50 | 3,4,5,6,8,10 | 72.8 |
0.9 | R0.45 | 1.5 | 0.9 | 4 | 50 | 3,4,5,6,8,10 | 72.8 |
VS680 Small Diameter is suitable for high-speed machining of hardened steel (S136/SKD61/SKD11/DC53) and other high-hardness materials after heat treatment.
Outer Diameter (D) | Ball Nose Blade | Flat Blade Length (H) | Ball Nose Blade Length (H) | Shank Diameter (D) | Full Length (L) | （Blade Length + Clearance） | VS680 for steel |
0.2 | R0.1 | 0.3 | 0.2 | 4 | 50 | 1,2 | 73.5 |
0.3 | R0.15 | 0.5 | 0.3 | 4 | 50 | 1,2,3 | 72.8 |
0.4 | R0.2 | 0.6 | 0.4 | 4 | 50 | 2,3,4,6 | 72.8 |
0.5 | R0.25 | 0.7 | 0.5 | 4 | 50 | 2,3,4,5,6,8 | 72.8 |
0.6 | R0.3 | 0.9 | 0.6 | 4 | 50 | 3,4,5,6,8 | 72.8 |
0.7 | R0.35 | 1.0 | 0.7 | 4 | 50 | 3,4,5,6,8,10 | 72.8 |
0.8 | R0.4 | 1.2 | 0.8 | 4 | 50 | 3,4,5,6,8,10 | 72.8 |
0.9 | R0.45 | 1.5 | 0.9 | 4 | 50 | 3,4,5,6,8,10 | 72.8 |
