Carbide end mills are essential tools in the world of machining, known for their durability and precision in cutting various materials. However, like all cutting tools, they eventually lose their sharp edge, affecting their performance and the quality of your work. While professional sharpening services are available, many machinists and hobbyists wonder if it's possible to sharpen carbide end mills effectively at home. In this comprehensive guide, we'll explore the techniques, tools, and best practices for sharpening carbide end mills in a home workshop setting.

Understanding Carbide End Mills

Before diving into the sharpening process, it's crucial to understand what carbide end mills are and why they require special care. Carbide end mills are cutting tools made from tungsten carbide, a compound known for its extreme hardness and wear resistance. These tools are used in milling machines to remove material from workpieces, creating precise shapes and features in metals, plastics, and other materials.

Carbide end mills come in various shapes and sizes, each designed for specific applications. They typically have multiple flutes (cutting edges) that spiral around the tool's body. The number of flutes, their geometry, and the overall design of the end mill affect its cutting performance and the type of operations it's best suited for.

The Importance of Proper Sharpening

Sharpening carbide end mills is a delicate process that requires precision and care. Improper sharpening can lead to several issues:

1. Reduced tool life

2. Poor cutting performance

3. Inconsistent machining results

4. Potential tool failure during operation

Given these risks, many professionals recommend sending carbide end mills to specialized sharpening services. However, with the right knowledge, tools, and techniques, it is possible to sharpen these tools effectively at home, especially for those who frequently use end mills and want to maintain them between professional sharpenings.

Assessing Your End Mills

Before attempting to sharpen your carbide end mills, it's essential to assess their condition:

1. Visual Inspection: Examine the cutting edges for signs of wear, chipping, or breakage. Minor wear is suitable for home sharpening, but significant damage may require professional attention.

2. Performance Evaluation: If you notice a decrease in cutting efficiency, increased heat generation during use, or poor surface finish on your workpieces, it may be time to sharpen your end mills.

3. Measurement: Use precision measuring tools to check the diameter and length of your end mills. Sharpening will slightly reduce these dimensions, so it's important to know your starting point.

Tools and Equipment for Home Sharpening

To sharpen carbide end mills at home, you'll need some specialized equipment:

1. Diamond Grinding Wheels: Carbide is extremely hard, so traditional abrasives won't work. Diamond grinding wheels are essential for sharpening carbide tools.

2. Tool and Cutter Grinder: While professional-grade machines are ideal, there are smaller, more affordable options suitable for home use. Some machinists even create DIY setups using existing equipment.

3. End Mill Holders: These fixtures hold the end mill securely during the sharpening process, ensuring precise and consistent results.

4. Magnification: A magnifying glass or microscope is crucial for inspecting the cutting edges before and after sharpening.

5. Coolant System: Proper cooling is essential to prevent overheating, which can damage the carbide.

6. Safety Equipment: Always wear safety glasses, hearing protection, and a dust mask when grinding carbide.

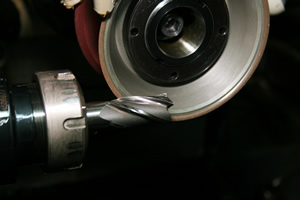

Step-by-Step Sharpening Process

While the exact process may vary depending on your equipment and the specific end mill you're sharpening, here's a general guide to sharpening carbide end mills at home:

1. Preparation:

◆ Clean the end mill thoroughly to remove any debris or cutting fluid.

◆ Inspect the cutting edges under magnification to identify wear patterns.

◆ Measure and record the current dimensions of the end mill.

2. Setup:

◆ Mount the diamond grinding wheel on your grinder.

◆ Secure the end mill in the appropriate holder.

◆ Set up your coolant system to ensure proper cooling during grinding.

3. Primary Relief Grinding:

◆ Begin with the primary relief angle, which is the angle behind the cutting edge.

◆ Adjust your grinder to the correct angle (typically between 8-12 degrees for most end mills).

◆ Carefully grind each flute, maintaining consistent pressure and movement.

4. Secondary Relief Grinding:

◆ If your end mill has a secondary relief angle, grind this next.

◆ This angle is usually a few degrees steeper than the primary relief.

5. End Grinding:

◆ Sharpen the end of the mill if it's a center-cutting type.

◆ This requires precise angle settings and careful grinding to maintain the correct geometry.

6. Flute Sharpening:

◆ Carefully grind along the flutes to restore their sharpness.

◆ This step requires a steady hand and attention to detail to maintain the correct helix angle.

7. Gash Grinding:

◆ For end mills with gashes (the spaces between flutes at the end), carefully grind these areas to restore proper chip evacuation.

8. Inspection and Measurement:

◆ After sharpening, inspect the cutting edges under magnification.

◆ Measure the end mill to check for any significant reduction in diameter or length.

9. Testing:

◆ Perform a test cut on a piece of scrap material to ensure the end mill cuts efficiently and produces a good surface finish.

Best Practices for Home Sharpening

To achieve the best results when sharpening carbide end mills at home, keep these tips in mind:

1. Maintain Consistency: Use consistent pressure and movement when grinding to ensure even sharpening across all flutes.

2. Keep It Cool: Overheating can damage the carbide, so use plenty of coolant and take breaks to prevent heat buildup.

3. Start with Simpler Tools: If you're new to sharpening, begin with two-flute end mills before moving on to more complex geometries.

4. Preserve Geometry: Pay close attention to maintaining the original geometry of the end mill, including relief angles and helix angles.

5. Regular Maintenance: Implement a schedule for inspecting and sharpening your end mills based on their usage. Regular maintenance prolongs their lifespan and ensures consistent cutting performance.

6. Know Your Limits: Some complex or severely damaged end mills may be better left to professional sharpening services.

7. Practice on Old Tools: Before sharpening your valuable end mills, practice on worn-out or damaged ones to hone your skills.

Challenges and Considerations

While sharpening carbide end mills at home is possible, it comes with several challenges:

1. Precision Requirements: Carbide end mills require extremely precise grinding to maintain their cutting geometry. Even small errors can significantly impact performance.

2. Equipment Cost: Quality grinding equipment suitable for carbide can be expensive, which may not be cost-effective for occasional users.

3. Skill Development: Developing the skills to sharpen end mills effectively takes time and practice. It's not a task to be undertaken lightly.

4. Material Specificity: Carbide requires specific grinding wheels and techniques different from those used for high-speed steel (HSS) tools.

5. Risk of Damage: Improper sharpening can irreparably damage expensive end mills, potentially costing more than professional sharpening services.

Alternatives to Home Sharpening

If home sharpening seems too challenging or risky, consider these alternatives:

1. Professional Sharpening Services: Many companies specialize in sharpening carbide tools with high-precision equipment.

2. Tool Exchange Programs: Some manufacturers offer programs where you can exchange worn tools for newly sharpened ones.

3. Regrinding Services: These services not only sharpen but can also modify or recoat your end mills for improved performance.

4. New Tool Purchase: For hobbyists or occasional users, it may be more cost-effective to replace worn end mills with new ones.

Conclusion

Sharpening carbide end mills at home is a skill that can save time and money for frequent users of these tools. With the right equipment, techniques, and practice, it's possible to maintain your end mills effectively between professional sharpenings. However, it's crucial to approach this task with caution and respect for the precision required.

Remember that sharpening is just one aspect of end mill maintenance. Proper use, storage, and cleaning also play significant roles in extending the life of your tools. Whether you choose to sharpen your carbide end mills at home or rely on professional services, regular maintenance will ensure that these valuable tools continue to perform at their best, delivering the precision and quality your projects demand.

By understanding the process, challenges, and best practices of sharpening carbide end mills, you can make informed decisions about tool maintenance that best suit your needs, skills, and budget. Whether you're a professional machinist or a dedicated hobbyist, the ability to maintain your tools effectively is a valuable skill that can enhance your work and save resources in the long run.
