Especially suitable for P20, H13, S136, 718H, NAK80, SKD61, S136, cast iron, stainless steel, and other materials for efficient processing.
Outer Diameter (D) | Blade Length (H) | Shank Diameter (D) | Full Length (L) | Flat Blade | Round Nose Blade |
1.0 | 2.5 | 4 | 50 | 25 | 34.6 |
1.5 | 4.5 | 4 | 50 | 25 | 34.6 |
2.0 | 5 | 4 | 50 | 25 | 34.6 |
2.5 | 6 | 4 | 50 | 25 | 34.6 |
3.0 | 8 | 4 | 50 | 25 | 34.6 |
4.0 | 10 | 4 | 50 | 25 | 34.6 |
6.0 | 15 | 6 | 50 | 46 | 59.4 |
8.0 | 20 | 8 | 60 | 90 | 116.3 |
4.0 | 16 | 4 | 75 | 72 | 93 |
6.0 | 24 | 6 | 75 | 130 | 168 |
8.0 | 30 | 8 | 75 | 99.4 | 128.4 |
10.0 | 25 | 10 | 75 | 130 | 168 |
12.0 | 30 | 12 | 75 | 168 | 217.1 |
8.0 | 35 | 8 | 100 | 132 | 170.6 |
10.0 | 40 | 10 | 100 | 176 | 227.4 |
12.0 | 45 | 12 | 100 | 238 | 307.5 |
14.0 | 45 | 14 | 100 | 322 | 416.1 |
16.0 | 45 | 16 | 100 | 400 | 516.9 |
18.0 | 45 | 18 | 100 | 490 | 633.1 |
20.0 | 45 | 20 | 100 | 586 | 757.2 |
1. Using a high-quality, very fine-particle carbide matrix coated with an imported nanocomposite coating extends the tool's service life.
2. Special molding groove design, same rigidity, larger tool chip space, can achieve large depth of cut, large feed, and efficient machining.

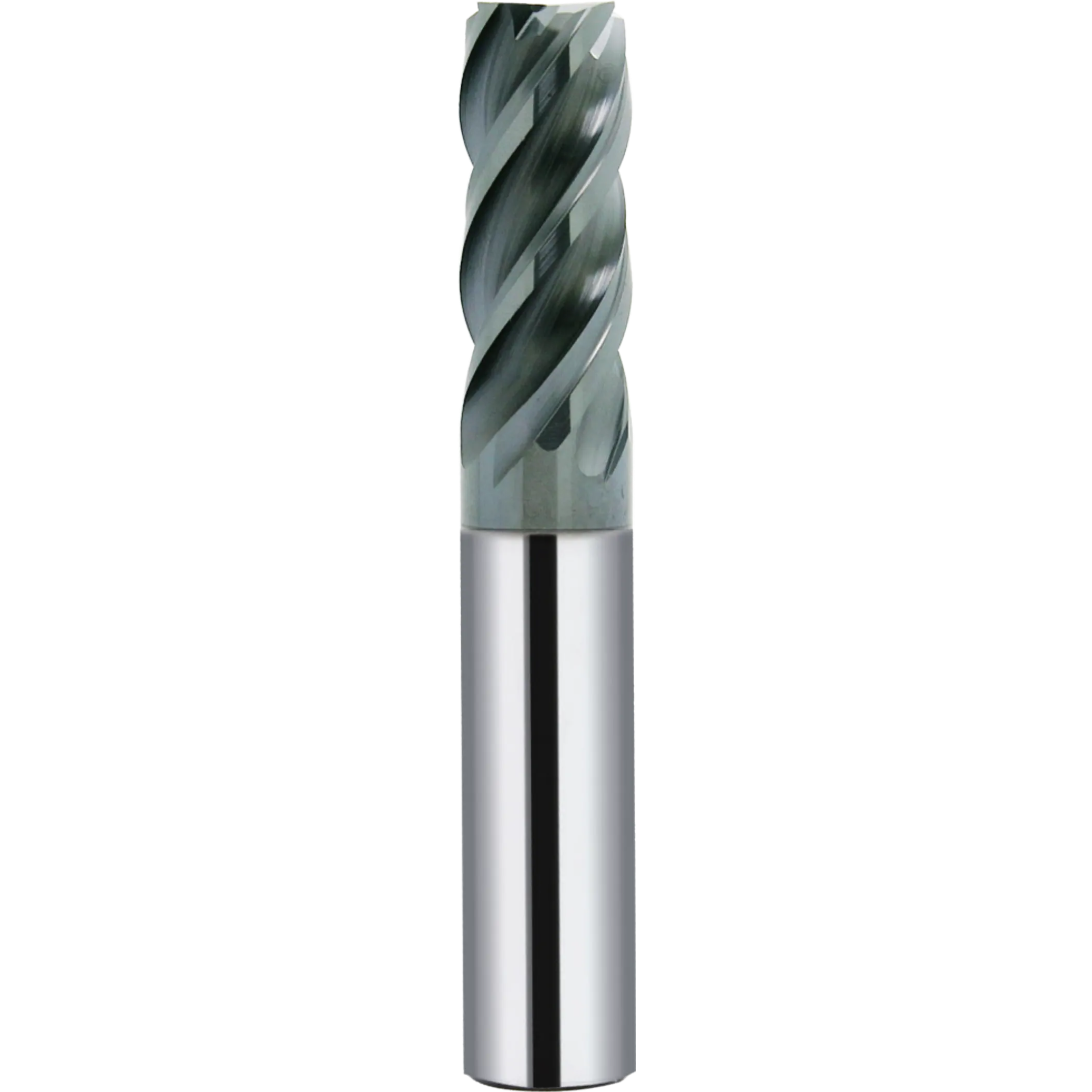

3. The unequal spiral structure improves tool vibration resistance, delays tool chipping, and increases tool stability.
Especially suitable for P20, H13, S136, 718H, NAK80, SKD61, S136, cast iron, stainless steel, and other materials for efficient processing.
Outer Diameter (D) | Blade Length (H) | Shank Diameter (D) | Full Length (L) | Flat Blade | Round Nose Blade |
1.0 | 2.5 | 4 | 50 | 25 | 34.6 |
1.5 | 4.5 | 4 | 50 | 25 | 34.6 |
2.0 | 5 | 4 | 50 | 25 | 34.6 |
2.5 | 6 | 4 | 50 | 25 | 34.6 |
3.0 | 8 | 4 | 50 | 25 | 34.6 |
4.0 | 10 | 4 | 50 | 25 | 34.6 |
6.0 | 15 | 6 | 50 | 46 | 59.4 |
8.0 | 20 | 8 | 60 | 90 | 116.3 |
4.0 | 16 | 4 | 75 | 72 | 93 |
6.0 | 24 | 6 | 75 | 130 | 168 |
8.0 | 30 | 8 | 75 | 99.4 | 128.4 |
10.0 | 25 | 10 | 75 | 130 | 168 |
12.0 | 30 | 12 | 75 | 168 | 217.1 |
8.0 | 35 | 8 | 100 | 132 | 170.6 |
10.0 | 40 | 10 | 100 | 176 | 227.4 |
12.0 | 45 | 12 | 100 | 238 | 307.5 |
14.0 | 45 | 14 | 100 | 322 | 416.1 |
16.0 | 45 | 16 | 100 | 400 | 516.9 |
18.0 | 45 | 18 | 100 | 490 | 633.1 |
20.0 | 45 | 20 | 100 | 586 | 757.2 |
1. Using a high-quality, very fine-particle carbide matrix coated with an imported nanocomposite coating extends the tool's service life.
2. Special molding groove design, same rigidity, larger tool chip space, can achieve large depth of cut, large feed, and efficient machining.
3. The unequal spiral structure improves tool vibration resistance, delays tool chipping, and increases tool stability.
