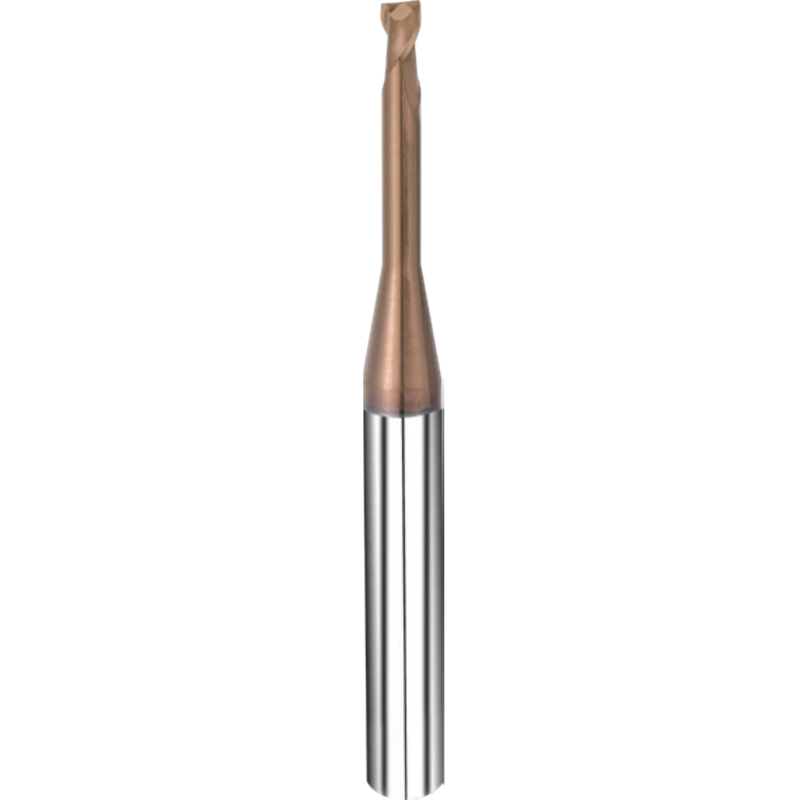

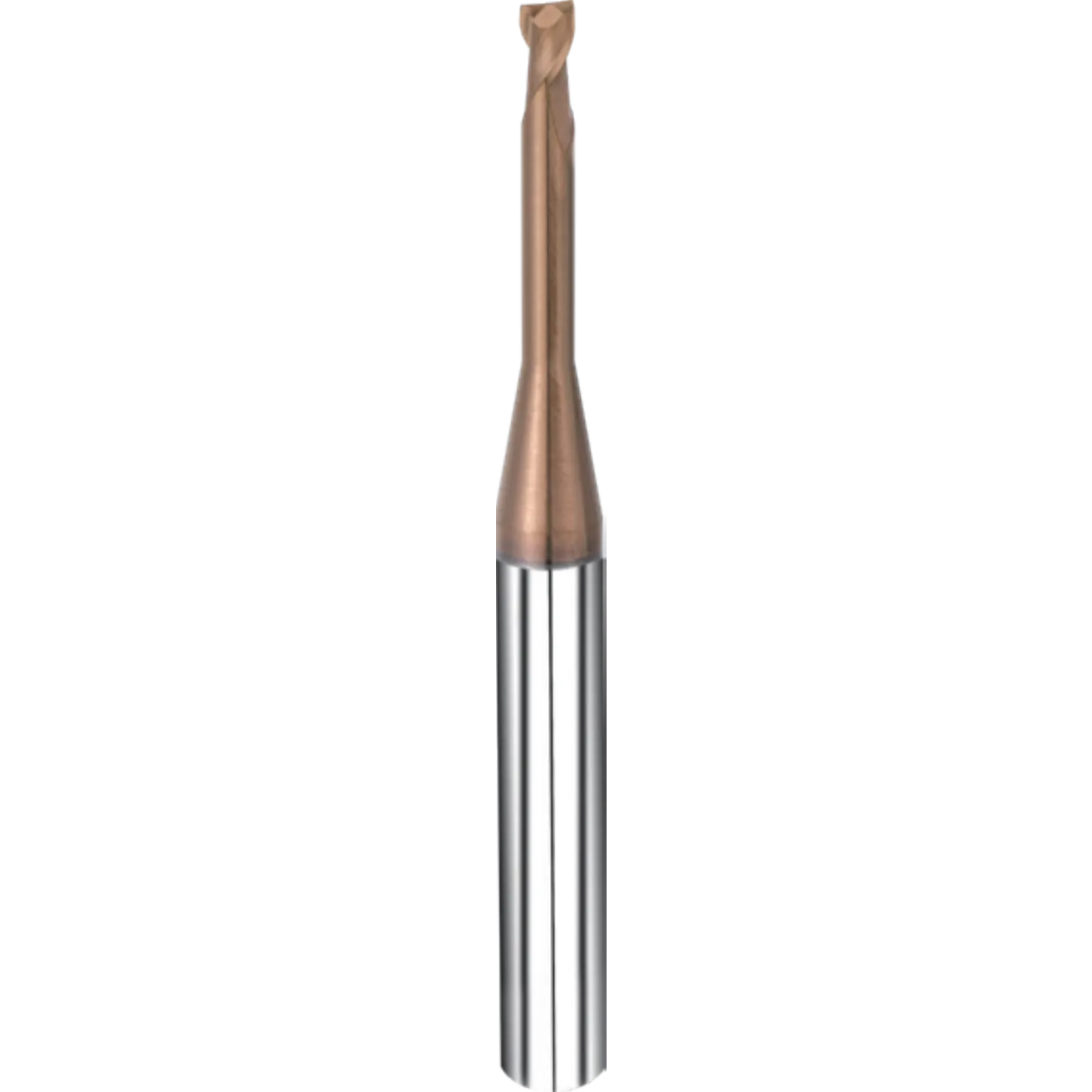

ES600 Small Diameter is suitable for mold steel, pre-hardened steel, cast iron, and impervious steel.
| Outer Diameter (D) | Ball Nose Blade | Flat Blade Length (H) | Ball Nose Blade Length (H) | Shank Diameter (D) | Full Length (L) | （Blade Length + Clearance） | ES600 for Steel | ES600 Bull Nose Cutter for Steel |
| 1 | R0.5 | 1.5 | 1 | 4 | 50 | 1,2 | 37 | 40 |
| 1.5 | R0.75 | 2.3 | 1.5 | 4 | 50 | 1,2,3 | 37 | 40 |
| 2 | R1 | 3 | 2 | 4 | 50 | 2,3,4,6 | 37 | 40 |
| 2.5 | 3.8 | 4 | 50 | 2,3,4,5,6,8 | 37 | 40 | ||
| 3 | R1.5 | 4.5 | 3 | 4 | 50 | 3,4,5,6,8 | 37 | 40 |
| 4 | R2 | 6 | 4 | 4 | 50 | 3,4,5,6,8,10 | 37 | 40 |
| 3 | R1.5 | 4.5 | 3 | 6 | 60 | 3,4,5,6,8,10 | 70 | 76 |
| 4 | R2 | 6 | 4 | 6 | 60 | 3,4,5,6,8,10 | 70 | 76 |
| 3 | R1.5 | 4.5 | 3 | 6 | 75 | 12,16,20,26,30 | 90 | 96 |
| 4 | R2 | 6 | 4 | 6 | 75 | 16,20,26,30 | 90 | 96 |
ES600 Small Diameter is suitable for mold steel, pre-hardened steel, cast iron, and impervious steel.
| Outer Diameter (D) | Ball Nose Blade | Flat Blade Length (H) | Ball Nose Blade Length (H) | Shank Diameter (D) | Full Length (L) | （Blade Length + Clearance） | ES600 for Steel | ES600 Bull Nose Cutter for Steel |
| 1 | R0.5 | 1.5 | 1 | 4 | 50 | 1,2 | 37 | 40 |
| 1.5 | R0.75 | 2.3 | 1.5 | 4 | 50 | 1,2,3 | 37 | 40 |
| 2 | R1 | 3 | 2 | 4 | 50 | 2,3,4,6 | 37 | 40 |
| 2.5 | 3.8 | 4 | 50 | 2,3,4,5,6,8 | 37 | 40 | ||
| 3 | R1.5 | 4.5 | 3 | 4 | 50 | 3,4,5,6,8 | 37 | 40 |
| 4 | R2 | 6 | 4 | 4 | 50 | 3,4,5,6,8,10 | 37 | 40 |
| 3 | R1.5 | 4.5 | 3 | 6 | 60 | 3,4,5,6,8,10 | 70 | 76 |
| 4 | R2 | 6 | 4 | 6 | 60 | 3,4,5,6,8,10 | 70 | 76 |
| 3 | R1.5 | 4.5 | 3 | 6 | 75 | 12,16,20,26,30 | 90 | 96 |
| 4 | R2 | 6 | 4 | 6 | 75 | 16,20,26,30 | 90 | 96 |
