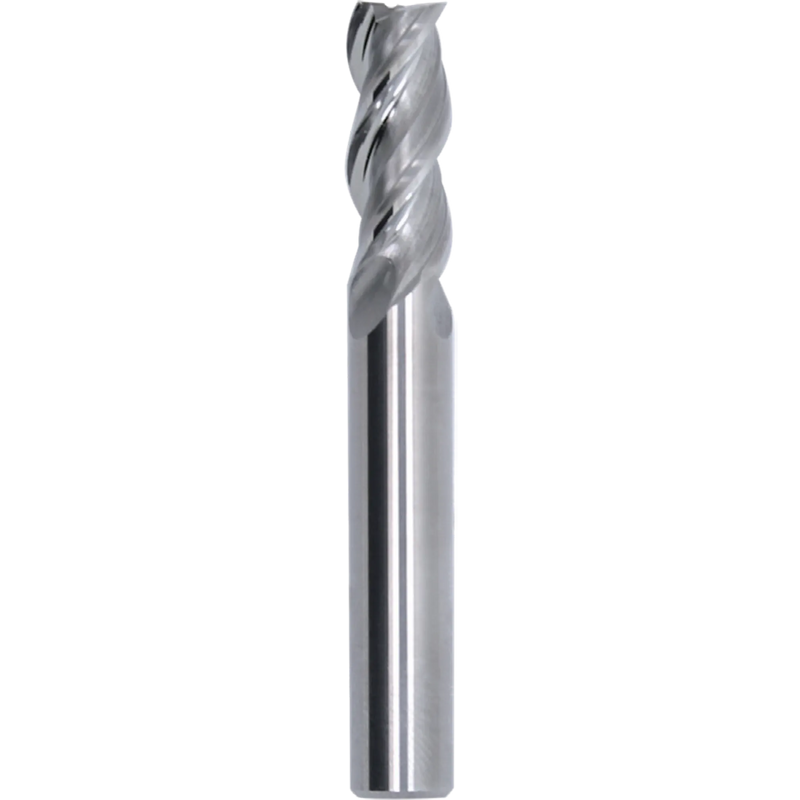

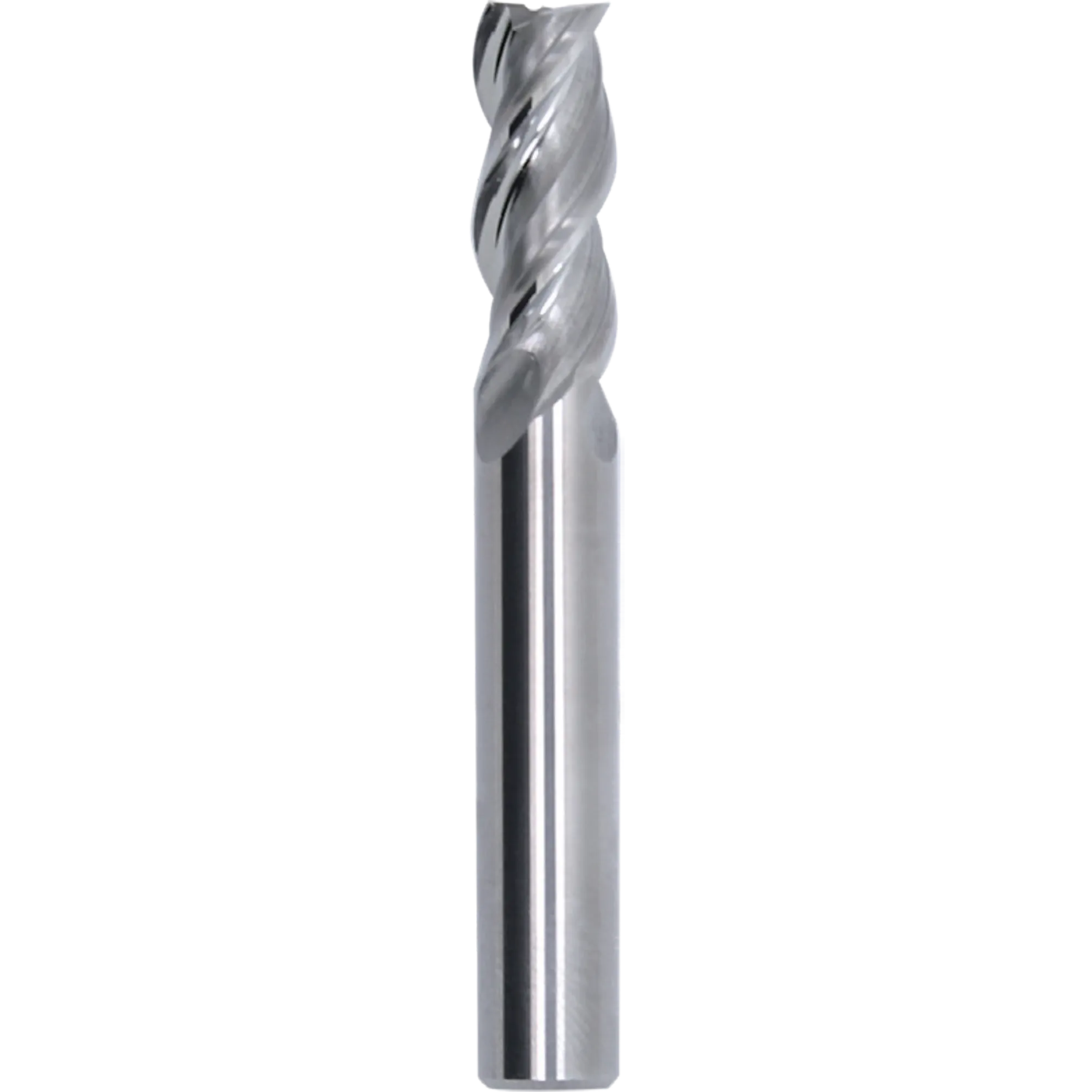

UA380G is suitable for highly efficient die-cast aluminum and aluminum alloy machining.
| Outer Diameter (D) | Blade Length (H) | Shank Diameter (D) | Full Length (L) | UA380G |
| 1.0 | 3 | 4 | 50 | |
| 1.5 | 4.5 | 4 | 50 | |
| 2.0 | 6 | 4 | 50 | |
| 2.5 | 7.5 | 4 | 50 | |
| 3.0 | 9 | 4 | 50 | 38 |
| 4.0 | 12 | 4 | 50 | 38 |
| 5.0 | 15 | 5 | 50 | 68 |
| 5.0 | 15 | 6 | 50 | 68 |
| 6.0 | 18 | 6 | 50 | 68 |
| 8.0 | 24 | 8 | 60 | 108 |
| 10.0 | 30 | 10 | 75 | 176 |
| 12.0 | 36 | 12 | 75 | 238 |
| 14.0 | 45 | 14 | 100 | |
| 16.0 | 45 | 16 | 100 | |
| 18.0 | 45 | 18 | 100 | |
| 20.0 | 45 | 20 | 100 | |
| 4.0 | 16 | 4 | 75 | |
| 5.0 | 20 | 5 | 75 | 96 |
| 5.0 | 20 | 6 | 75 | 96 |
| 6.0 | 24 | 6 | 75 | 96 |
| 8.0 | 30 | 8 | 75 | 150 |
| 4.0 | 20 | 4 | 100 | |
| 5.0 | 25 | 5 | 100 | 124 |
| 5.0 | 25 | 6 | 100 | 124 |
| 6.0 | 30 | 6 | 100 | 124 |
| 8.0 | 35 | 8 | 100 | 182 |
| 10.0 | 45 | 10 | 100 | 246 |
| 12.0 | 45 | 12 | 100 | 328 |
| 6.0 | 45 | 6 | 150 | |
| 8.0 | 50 | 8 | 150 | |
| 10.0 | 60 | 10 | 150 | |
| 12.0 | 60 | 12 | 150 | |
| 14.0 | 70 | 14 | 150 | |
| 16.0 | 75 | 16 | 150 | |
| 18.0 | 75 | 18 | 150 | |
| 20.0 | 75 | 20 | 150 |
Main characteristics:
1. Adopting a domestic high-quality ultra-fine grain carbide matrix.
2. Adopting a unique groove design and polishing the surface edge of the front blade to increase the performance of discharging.
