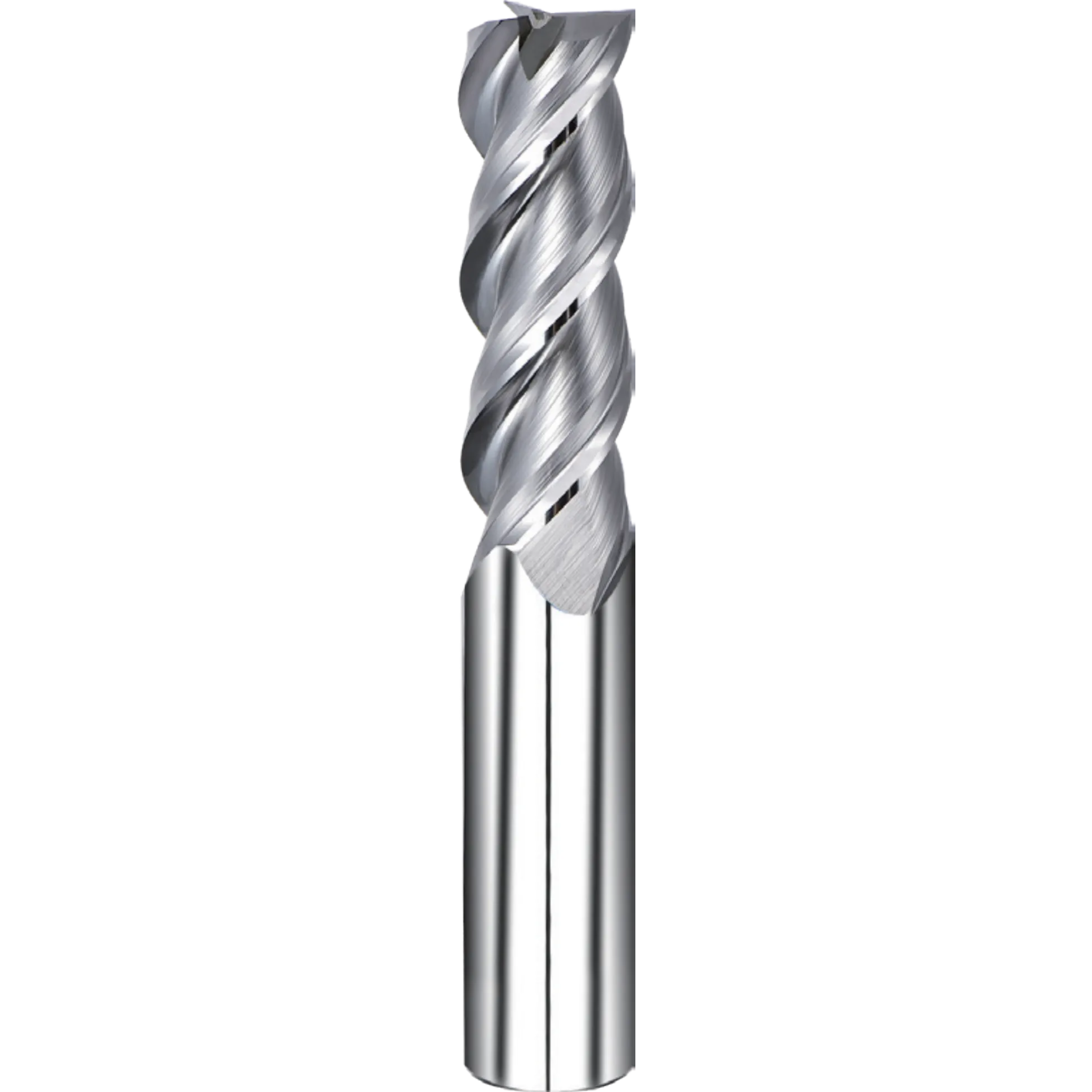

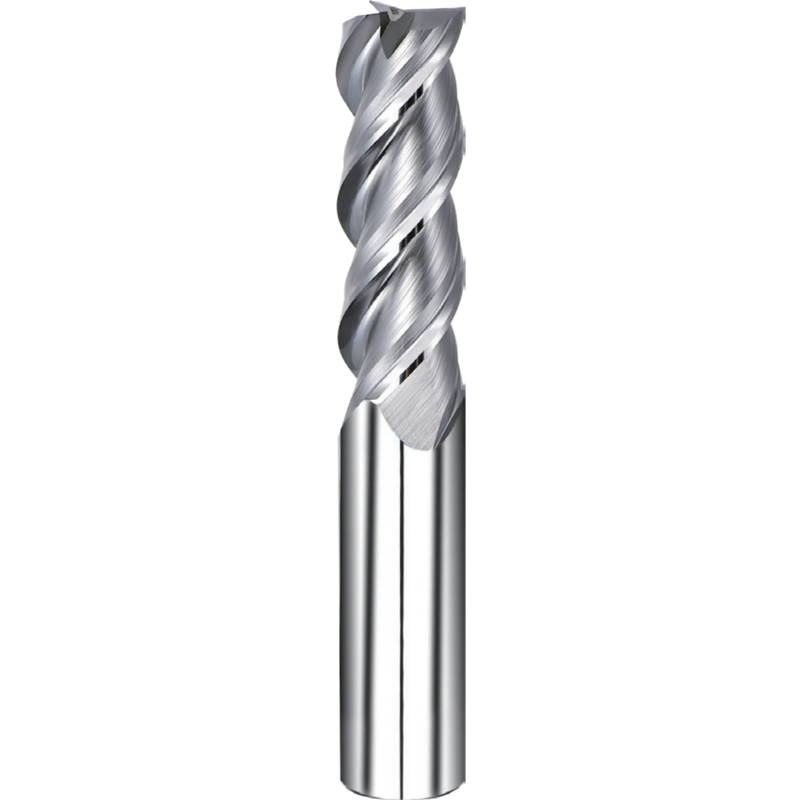

A380G is suitable for the following applications: die-casting aluminum, aluminum alloy, no shaded or unshaven surface, and high finish.
Outer Diameter (D) | Blade Length (H) | Shank Diameter (D) | Full Length (L) | A380G | |
Flat Blade | Ball Nose Blade | ||||
1.0 | 3 | 4 | 50 | 21.6 | 21.6 |
1.5 | 4.5 | 4 | 50 | 21.6 | 21.6 |
2.0 | 6 | 4 | 50 | 21.6 | 21.6 |
2.5 | 7.5 | 4 | 50 | 21.6 | 21.6 |
3.0 | 9 | 4 | 50 | 21.6 | 21.6 |
4.0 | 12 | 4 | 50 | 21.6 | 21.6 |
5.0 | 15 | 5 | 50 | 37 | 37 |
5.0 | 15 | 6 | 50 | 37 | 37 |
6.0 | 18 | 6 | 50 | 37 | 37 |
8.0 | 24 | 8 | 60 | 69 | 69 |
10.0 | 30 | 10 | 75 | 109 | 109 |
12.0 | 36 | 12 | 75 | 151 | 151 |
14.0 | 45 | 14 | 100 | 272 | 272 |
16.0 | 45 | 16 | 100 | 342 | 342 |
18.0 | 45 | 18 | 100 | 440 | 440 |
20.0 | 45 | 20 | 100 | 490 | 490 |
4.0 | 16 | 4 | 75 | 30.4 | 30.4 |
5.0 | 20 | 5 | 75 | 53 | 53 |
5.0 | 20 | 6 | 75 | 53 | 53 |
6.0 | 24 | 6 | 75 | 53 | 53 |
8.0 | 30 | 8 | 75 | 88 | 88 |
4.0 | 20 | 4 | 100 | 35 | 35 |
5.0 | 25 | 5 | 100 | 64.4 | 64.4 |
5.0 | 25 | 6 | 100 | 64.4 | 64.4 |
6.0 | 30 | 6 | 100 | 64.4 | 64.4 |
8.0 | 35 | 8 | 100 | 109 | 109 |
10.0 | 45 | 10 | 100 | 142 | 142 |
12.0 | 45 | 12 | 100 | 197 | 197 |
6.0 | 45 | 6 | 150 | 98 | 98 |
8.0 | 50 | 8 | 150 | 159.2 | 159.2 |
10.0 | 60 | 10 | 150 | 218 | 218 |
12.0 | 60 | 12 | 150 | 288 | 288 |
14.0 | 70 | 14 | 150 | 440 | 440 |
16.0 | 75 | 16 | 150 | 525 | 525 |
18.0 | 75 | 18 | 150 | 624 | 624 |
20.0 | 75 | 20 | 150 | 785.4 | 785.4 |
Main characteristics:
1. Adopting a domestic high-quality ultra-fine grain carbide matrix.
2. Adopting a unique groove design and polishing the surface edge of the front blade to increase the performance of discharging.
