Applicable: Stainless steel 303, 304, 316L/F, high-temperature alloys Inconel 718/713, Ti-6AI-4V Precision, semi-finish, and rough machining.
Outer Diameter (D) | Blade Length (H) | Shank Diameter (D) | Full Length (L) | Flat Blade |
1.0 | 3 | 4 | 50 | 39.2 |
1.5 | 4 | 4 | 50 | 39.2 |
2.0 | 6 | 4 | 50 | 39.2 |
2.5 | 8 | 4 | 50 | 39.2 |
3.0 | 9 | 4 | 50 | 39.2 |
4.0 | 10 | 4 | 50 | 39.2 |
6.0 | 15 | 6 | 50 | 77.3 |
8.0 | 20 | 8 | 60 | 100 |
4.0 | 15 | 4 | 75 | 51.6 |
6.0 | 20 | 6 | 75 | 84 |
8.0 | 25 | 8 | 75 | 128 |
10.0 | 25 | 10 | 75 | 186 |
12.0 | 30 | 12 | 75 | 239.5 |
8.0 | 30 | 8 | 100 | 160 |
10.0 | 40 | 10 | 100 | 226 |
12.0 | 40 | 12 | 100 | 301 |
14.0 | 45 | 14 | 100 | 391 |
16.0 | 45 | 16 | 100 | 524 |
18.0 | 45 | 18 | 100 | 643.6 |
20.0 | 45 | 20 | 100 | 773 |

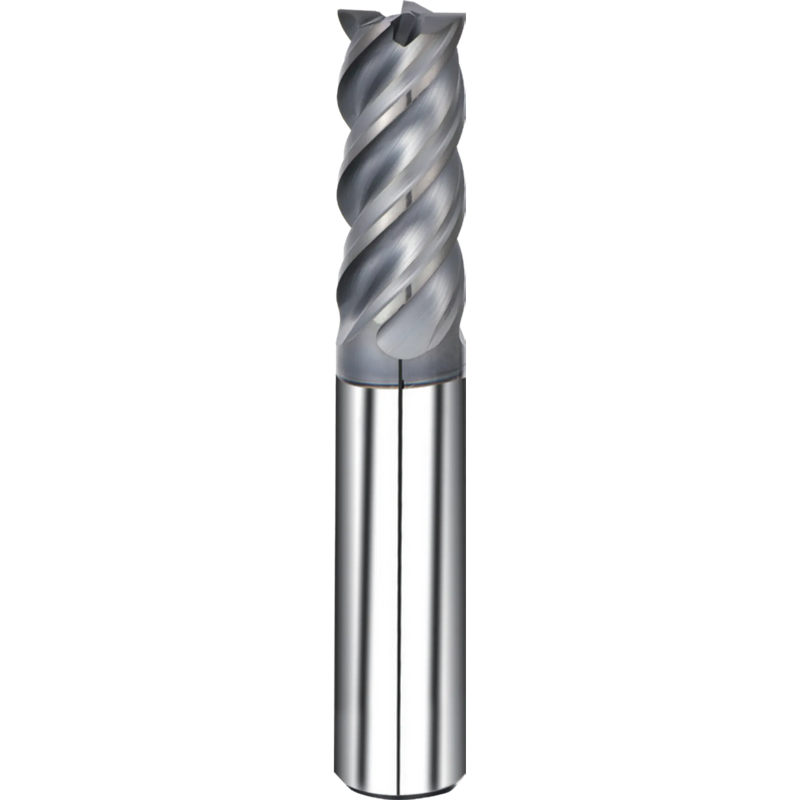

Main characteristics:
1. Adopting an extremely fine-grained cemented carbide matrix, coated with imported stainless steel special composite coating.
2. Adopting variable lead to unequal design, resisting vibration, and effectively improving the quality of machined surfaces.
3. Superior fine grinding of the cutting edge, realizing the high gloss of the products.
Applicable: Stainless steel 303, 304, 316L/F, high-temperature alloys Inconel 718/713, Ti-6AI-4V Precision, semi-finish, and rough machining.
Outer Diameter (D) | Blade Length (H) | Shank Diameter (D) | Full Length (L) | Flat Blade |
1.0 | 3 | 4 | 50 | 39.2 |
1.5 | 4 | 4 | 50 | 39.2 |
2.0 | 6 | 4 | 50 | 39.2 |
2.5 | 8 | 4 | 50 | 39.2 |
3.0 | 9 | 4 | 50 | 39.2 |
4.0 | 10 | 4 | 50 | 39.2 |
6.0 | 15 | 6 | 50 | 77.3 |
8.0 | 20 | 8 | 60 | 100 |
4.0 | 15 | 4 | 75 | 51.6 |
6.0 | 20 | 6 | 75 | 84 |
8.0 | 25 | 8 | 75 | 128 |
10.0 | 25 | 10 | 75 | 186 |
12.0 | 30 | 12 | 75 | 239.5 |
8.0 | 30 | 8 | 100 | 160 |
10.0 | 40 | 10 | 100 | 226 |
12.0 | 40 | 12 | 100 | 301 |
14.0 | 45 | 14 | 100 | 391 |
16.0 | 45 | 16 | 100 | 524 |
18.0 | 45 | 18 | 100 | 643.6 |
20.0 | 45 | 20 | 100 | 773 |

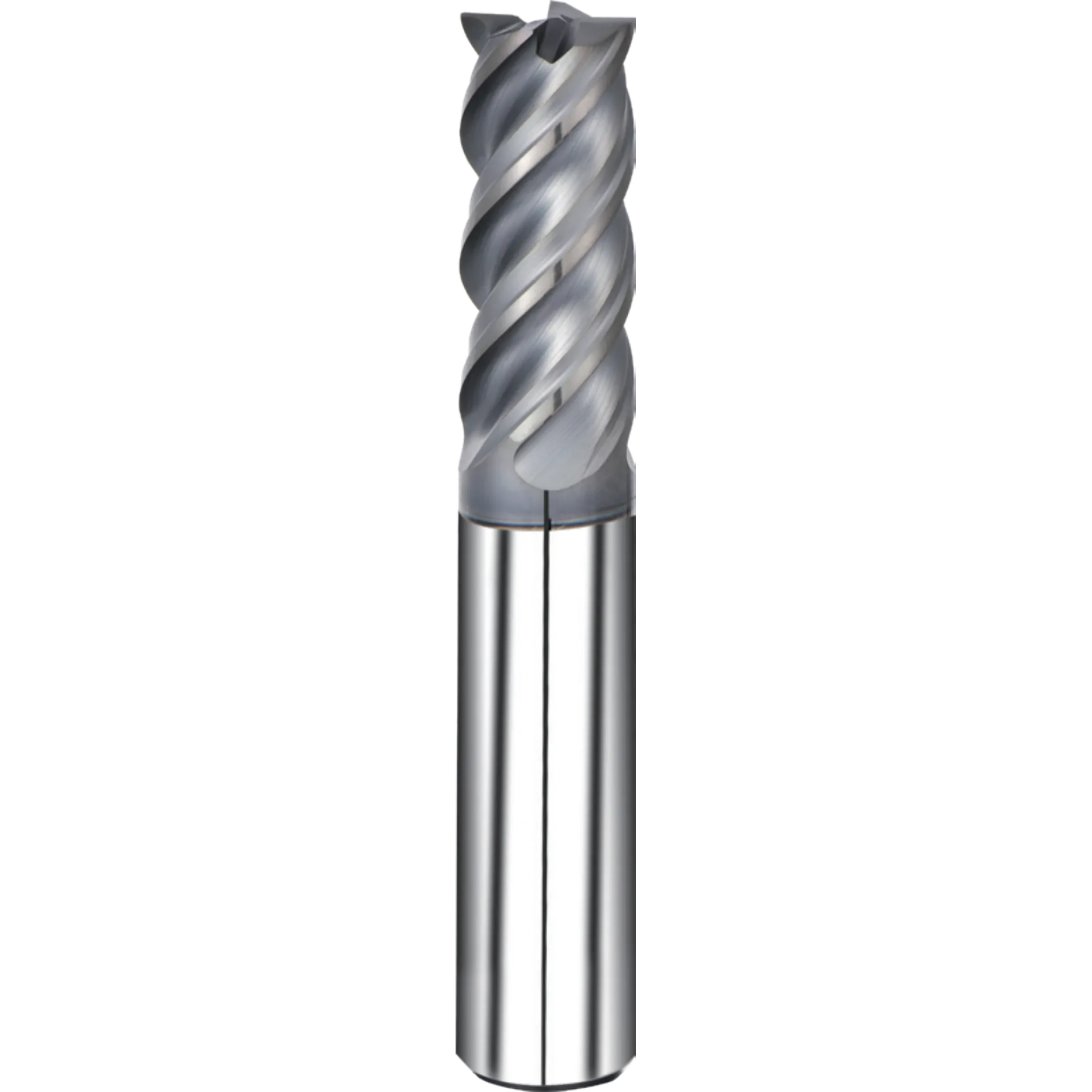

Main characteristics:
1. Adopting an extremely fine-grained cemented carbide matrix, coated with imported stainless steel special composite coating.
2. Adopting variable lead to unequal design, resisting vibration, and effectively improving the quality of machined surfaces.
3. Superior fine grinding of the cutting edge, realizing the high gloss of the products.
