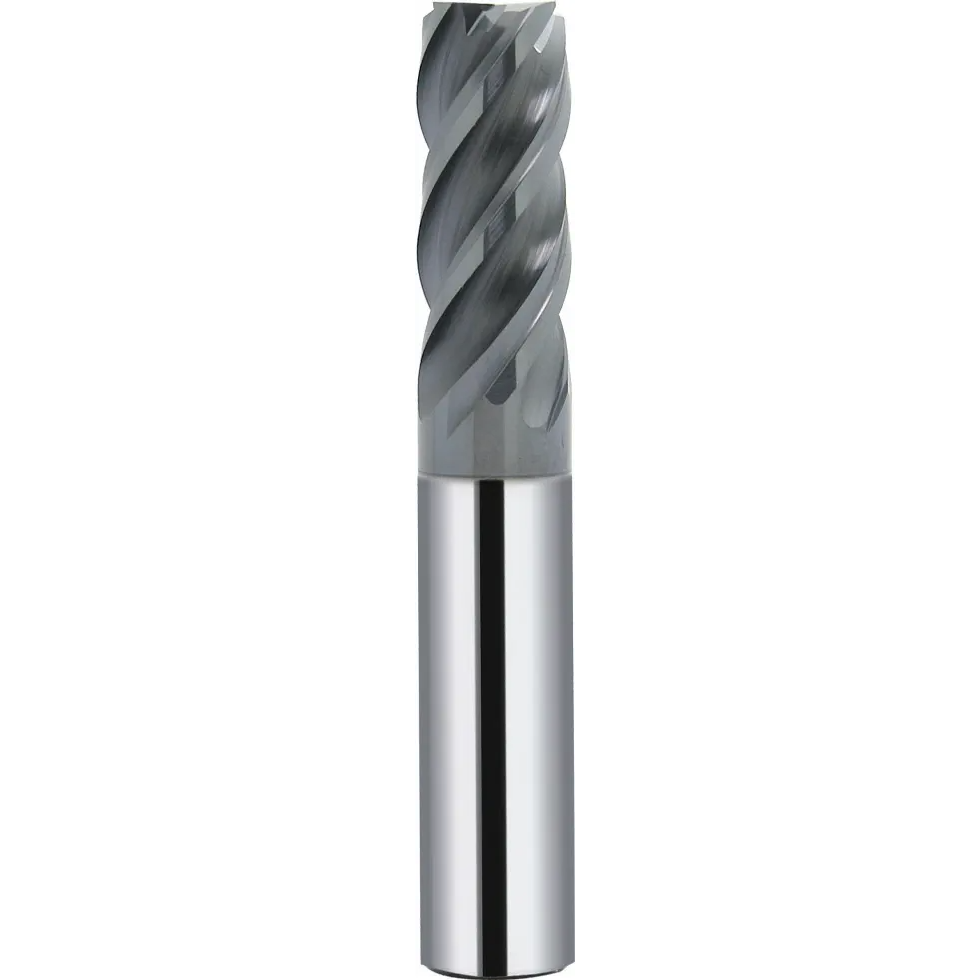

Suitable for roughing and semi-finishing stainless steel 303, 304, 316L/F, high-temperature alloys Inconel 718/713, Ti-6AI-4V, A3/45# steel and alloy, and mold steel and other materials.
Outer Diameter (D) | Blade Length (H) | Shank Diameter (D) | Full Length (L) | Flat Blade |
3.0 | 8 | 4 | 50 | 36 |
4.0 | 10 | 4 | 50 | 36 |
6.0 | 15 | 6 | 50 | 60 |
8.0 | 20 | 8 | 60 | 100 |
4.0 | 16 | 4 | 75 | 52 |
6.0 | 20 | 6 | 75 | 84 |
8.0 | 25 | 8 | 75 | 128 |
10.0 | 25 | 10 | 75 | 162 |
12.0 | 30 | 12 | 75 | 200 |
8.0 | 25 | 8 | 100 | 148 |
10.0 | 30 | 10 | 100 | 206 |
12.0 | 35 | 12 | 100 | 262 |
14.0 | 35 | 14 | 100 | 364 |
16.0 | 40 | 16 | 100 | 512 |
18.0 | 40 | 18 | 100 | 642 |
20.0 | 45 | 20 | 100 | 772 |
Main characteristics:
1. The tool's life is extended by using an imported high-quality special tungsten steel base material coated with an imported stainless steel special composite coating.
2. Special molding groove design, the same rigidity, the tool chip space is larger, can realize large depth of cut, large feed efficient machining. 3. unequal spiral structure, greatly improves tool vibration resistance performance, effectively delays tool chipping, and extends tool life.
