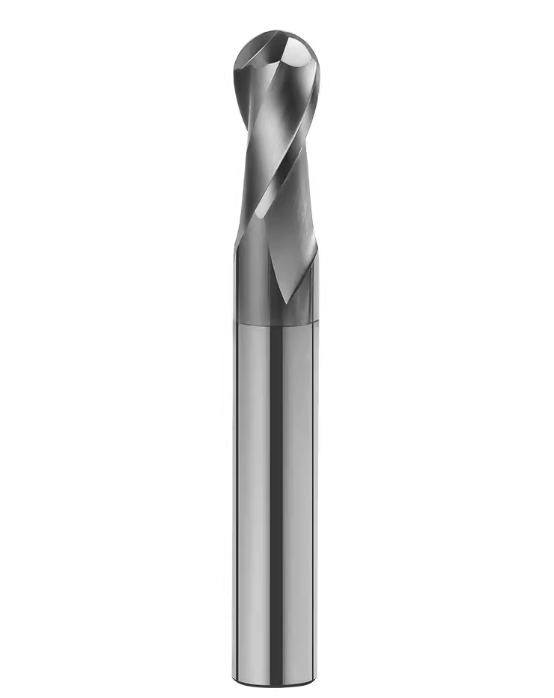

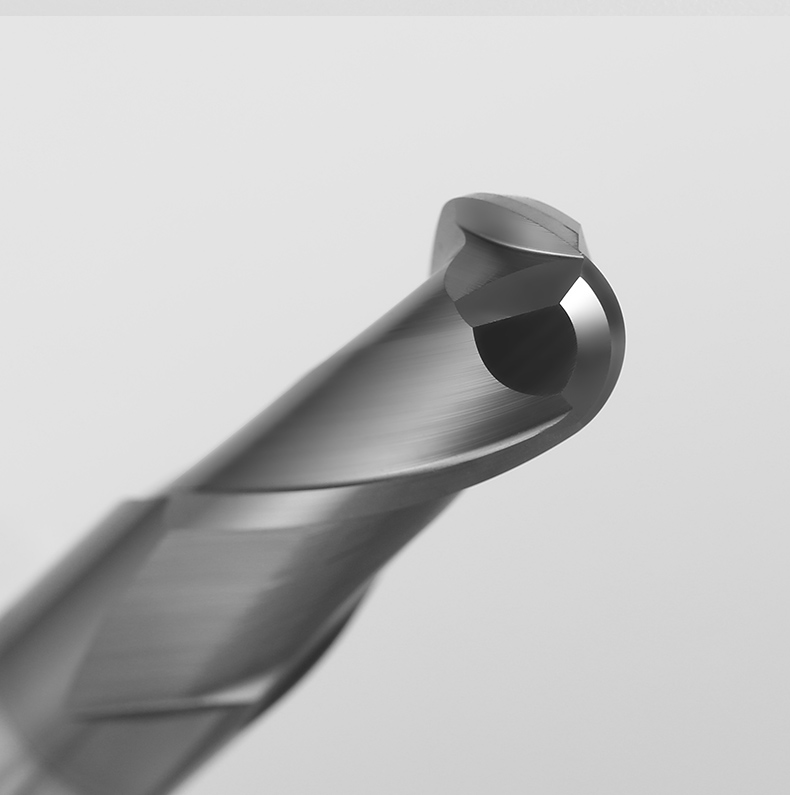

70° Tungsten Steel Ball End Mill

Suitable for the following materials:

Stainless Steel

Mold Steel

Heat-Resistant Alloys

Steel Parts of 65°-55°

Alloys

Ordinary Steel Parts

Milling Cutter Usage Precautions:

1. Before using the cutter, please check the cutter's runout. If the runout accuracy exceeds 0.01MM, please correct it before cutting;

2. The shorter the projection of the cutter from the chuck, the better. If the projection is long, it is necessary to reduce the spindle speed, feed rate, or cutting depth;

3. In case of abnormal vibrations or noise during cutting, please lower the spindle speed and feed rate until the situation improves;

4. For cooling of steel materials, spray or jet cooling methods are preferred, which can effectively enhance the milling cutter's performance and lifespan.

70° Milling Cutter Performance Indicators:

Slot Type: Specialized Slot

Helix Angle: Unequal Helix

Maximum Processing: HRC70

Processing Mode: Rough and Finish Integrated

Wear Resistance Index: Highly Wear-Resistant

Stable Processing: HRC60°

Highly Suitable For: Finishing and roughing of difficult-to-machine materials such as stainless steel, quenched alloy, and other challenging steel components.
