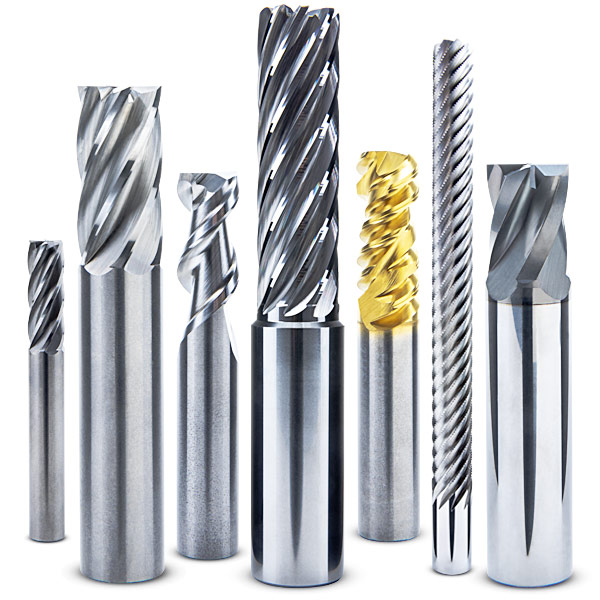

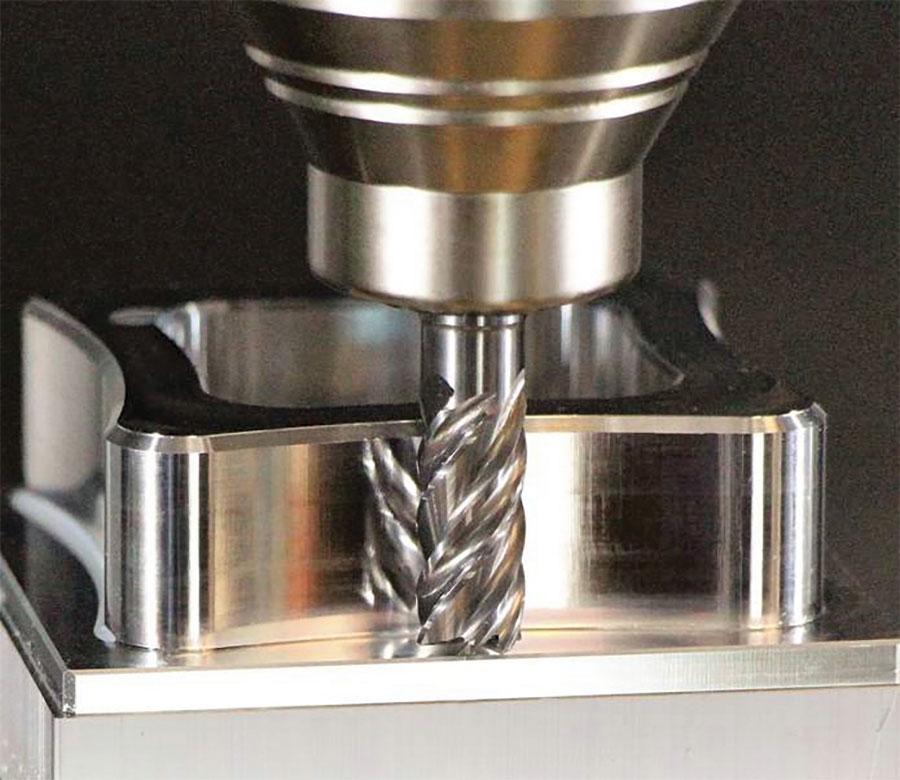

Carbide end mills are essential cutting tools widely used in the manufacturing industry for various machining operations, including milling, drilling, and boring. These versatile tools are capable of working with a wide range of materials, from metals and plastics to wood and composites. The production of carbide end mills is a complex process that combines advanced technology, precision engineering, and skilled craftsmanship. In this article, we will explore the fascinating journey of how carbide end mills are made, from raw materials to the finished product.
The first step in creating carbide end mills is selecting the right materials. Carbide end mills are typically made from tungsten carbide, a compound of tungsten and carbon. This material is chosen for its exceptional hardness, wear resistance, and ability to withstand high temperatures. The specific grade of tungsten carbide used can vary depending on the intended application of the end mill.
To create the carbide material, manufacturers start with tungsten carbide powder and mix it with a binding agent, usually cobalt. The ratio of tungsten carbide to cobalt can be adjusted to achieve different levels of hardness and toughness. Generally, a higher cobalt content results in a tougher but slightly less hard material, while a lower cobalt content produces a harder but more brittle end mill.
Once the tungsten carbide and cobalt powders are mixed in the desired ratio, they undergo a process called powder metallurgy. This involves several steps:
1. Mixing: The powders are thoroughly blended to ensure a uniform distribution of particles.
2. Pressing: The mixed powder is then compressed into a near-net shape of the end mill using high-pressure hydraulic presses. This process is known as cold isostatic pressing.
3. Pre-sintering: The compressed shape is heated to a temperature below the melting point of cobalt. This step removes any lubricants used in the pressing process and begins to bond the particles together.
4. Machining: At this stage, the pre-sintered blank is machined to create the basic shape of the end mill, including the shank and flute areas.
5. Sintering: The machined blank is then subjected to high temperature (typically around 1400°C) in a controlled atmosphere. This process, called sintering, causes the cobalt to melt and flow between the tungsten carbide particles, binding them together and creating a solid, dense material.
While the material is being prepared, engineers use advanced computer-aided design (CAD) software to create precise 3D models of the end mills. These designs take into account various factors such as the number of flutes, helix angle, rake angle, and overall geometry of the tool. The design process is crucial as it determines the performance characteristics of the end mill, including its cutting efficiency, chip evacuation, and durability.
Once the design is finalized, it is transferred to computer-aided manufacturing (CAM) software. This software translates the 3D model into a set of instructions that will guide the CNC (Computer Numerical Control) grinding machines in shaping the carbide blank into the final end mill form.
The grinding process is where the carbide blank truly takes shape as an end mill. This stage involves several precise grinding operations:
1. OD (Outside Diameter) Grinding: The outer diameter of the tool is ground to the exact specifications required.
2. Flute Grinding: CNC grinding machines cut the flutes into the carbide blank. The number of flutes can vary, with common configurations including 2, 3, or 4 flutes. Each flute is carefully ground to ensure proper chip formation and evacuation during use.

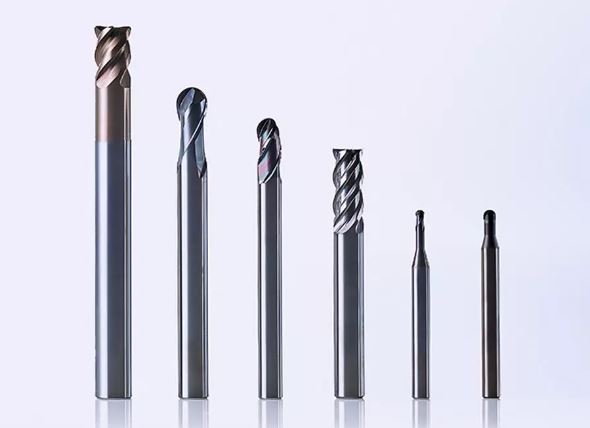

3. End Face Grinding: The end face of the tool is ground to create the cutting edges and to establish the correct end geometry, which can be flat, ball-nosed, or have a corner radius depending on the design.
4. Gash Grinding: This process creates the gash or gullet at the end of each flute, which is crucial for chip formation and evacuation, especially when the end mill is used for plunging operations.
5. Relief Grinding: The relief behind the cutting edges is ground to provide clearance and reduce friction during cutting operations.
After the main grinding operations, the cutting edges of the end mill undergo a process called edge preparation. This can involve micro-blasting, brushing, or honing to remove any microscopic imperfections and to create a consistent edge quality along the cutting surfaces. Edge preparation is crucial for enhancing the tool's performance and longevity.

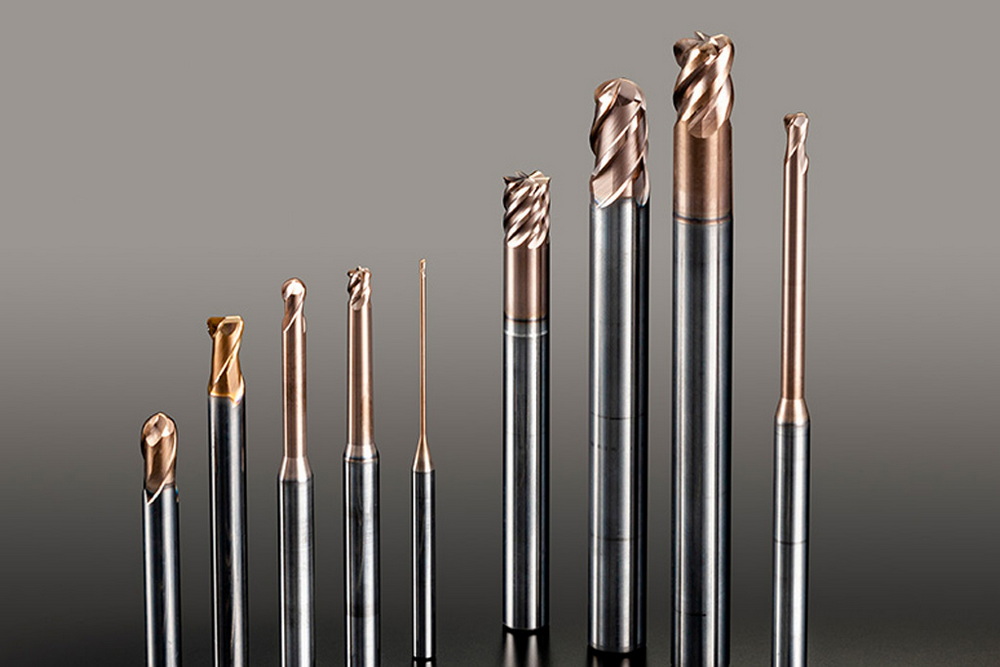

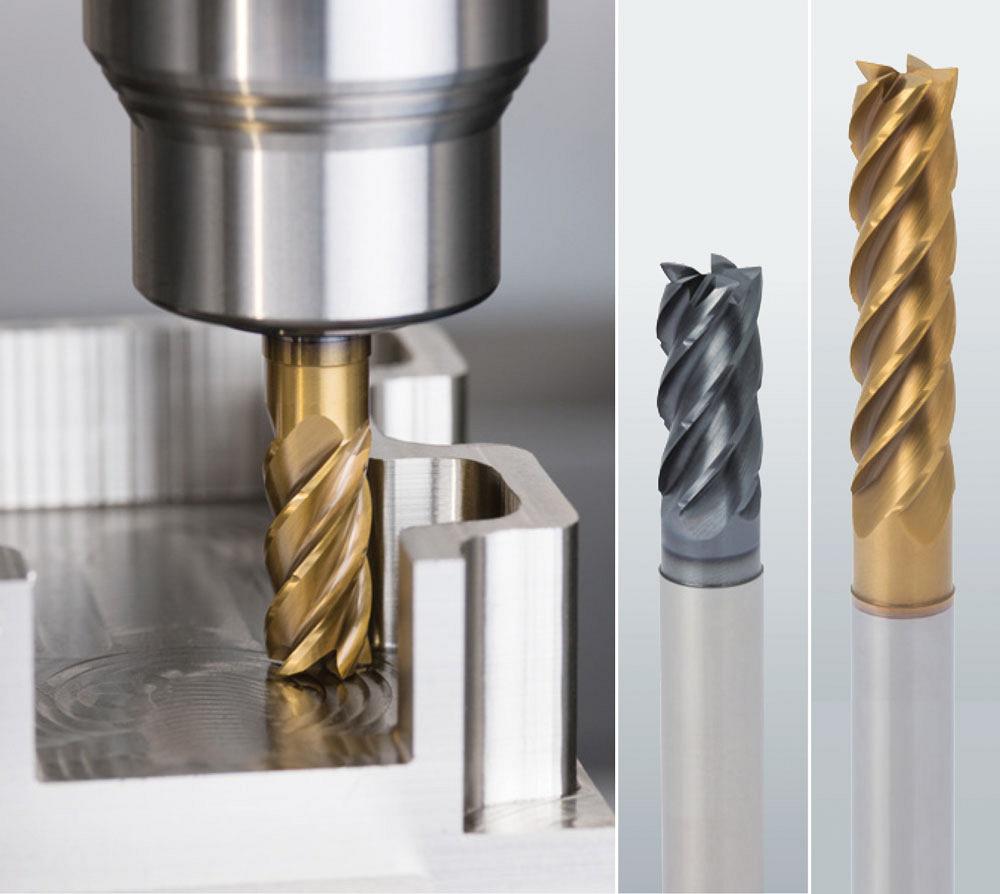

Many carbide end mills receive a special coating to further enhance their performance. Common coating materials include Titanium Nitride (TiN), Titanium Aluminum Nitride (TiAlN), and Diamond-Like Carbon (DLC). These coatings are applied using processes such as Physical Vapor Deposition (PVD) or Chemical Vapor Deposition (CVD).
The coating serves multiple purposes:
◆ Increases surface hardness
◆ Reduces friction during cutting
◆ Improves heat resistance
◆ Enhances chip evacuation
◆ Increases wear resistance
The choice of coating depends on the intended application of the end mill, such as the materials it will be cutting and the machining conditions it will face.
Throughout the manufacturing process, carbide end mills undergo rigorous quality control checks. After the final grinding and coating processes, each tool is subjected to a series of inspections:
◆ Dimensional Inspection: High-precision measuring equipment is used to verify that all dimensions of the end mill meet the specified tolerances.
◆ Geometry Inspection: The flute geometry, helix angle, and other critical features are checked to ensure they conform to the design specifications.
◆ Surface Finish Inspection: The surface quality of the cutting edges and flutes is examined to ensure smoothness and consistency.
◆ Hardness Testing: The hardness of the carbide material is tested to confirm it meets the required specifications.
◆ Runout Inspection: The tool is checked for any deviation from its central axis when rotated, as minimal runout is crucial for precision machining.
Once an end mill passes all quality control checks, it is carefully packaged to protect it during shipping and storage. Each tool is typically labeled with important information such as its dimensions, number of flutes, coating type (if any), and recommended cutting parameters.
The manufacturing process for carbide end mills is continually evolving. Manufacturers invest in research and development to improve tool designs, develop new coatings, and enhance manufacturing techniques. This ongoing innovation aims to produce end mills that can machine more efficiently, last longer, and tackle increasingly challenging materials and applications.
Some areas of recent advancement include:
◆ Micro-grain carbide formulations for improved wear resistance and edge strength
◆ Variable helix and variable pitch designs for reduced chatter and improved stability
◆ Advanced PVD coatings that offer better heat resistance and longer tool life
◆ Optimized flute geometries for improved chip evacuation in deep pocketing operations
The production of carbide end mills is a sophisticated process that combines material science, precision engineering, and advanced manufacturing technologies. From the careful selection and preparation of tungsten carbide powder to the final quality control inspections, each step in the manufacturing process is crucial in creating tools that can meet the demanding requirements of modern machining operations.
As manufacturing technologies continue to advance, we can expect to see further innovations in carbide end mill design and production. These improvements will likely focus on enhancing tool performance, extending tool life, and addressing the challenges posed by new materials and increasingly complex part geometries.
The next time you see a carbide end mill in action, cutting through metal with precision and efficiency, you'll have a deeper appreciation for the intricate process and advanced technology that went into its creation. These small but mighty tools are a testament to human ingenuity and the relentless pursuit of manufacturing excellence.
