The Versatile World of Carbide End Mills: Precision Tools Revolutionizing Manufacturing

Content Menu

● Understanding Carbide End Mills

● Applications Across Industries

● Types of Carbide End Mills and Their Uses

● Advantages of Carbide End Mills

● Optimizing Performance with Carbide End Mills

● Emerging Trends and Future Outlook

● Conclusion

Carbide end mills have become indispensable tools in the world of modern manufacturing, offering unparalleled precision, durability, and versatility across a wide range of industries. These cutting-edge tools have revolutionized machining processes, enabling manufacturers to achieve intricate designs, tight tolerances, and superior surface finishes in various materials. In this comprehensive exploration, we'll delve into the multifaceted applications of carbide end mills, their unique characteristics, and the impact they've had on the manufacturing landscape.

Understanding Carbide End Mills

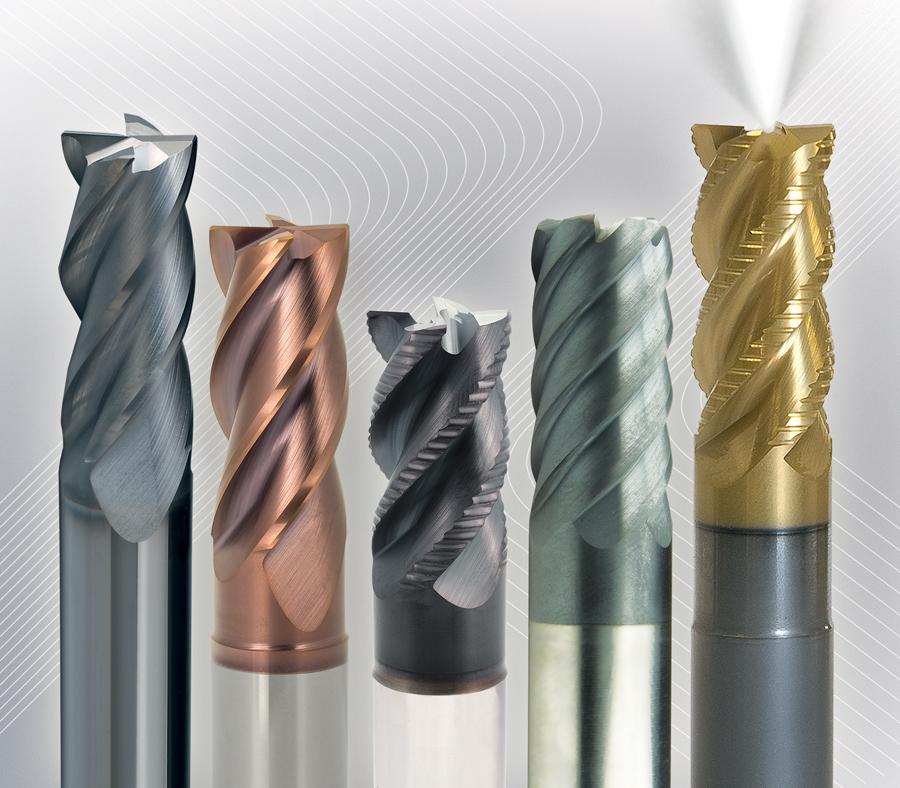

Carbide end mills are cutting tools primarily used in milling applications, where they remove material from a workpiece to create desired shapes and features. What sets these tools apart is their composition – they are made from tungsten carbide, a compound known for its exceptional hardness and wear resistance. This unique material allows carbide end mills to maintain their sharp cutting edges even under demanding conditions, making them ideal for high-speed machining and working with tough materials.

Applications Across Industries

The versatility of carbide end mills has led to their widespread adoption across numerous industries:

1. Automotive Manufacturing: In the automotive sector, carbide end mills play a crucial role in producing complex engine components, transmission parts, and chassis elements. Their ability to machine hard materials with high precision contributes to the production of lightweight yet durable parts, essential for modern, fuel-efficient vehicles.

2. Aerospace: The aerospace industry relies heavily on carbide end mills for manufacturing critical components that require exceptional accuracy and surface finish. From turbine blades to structural elements, these tools enable the creation of parts that can withstand extreme conditions while maintaining tight tolerances.

3. Medical Device Manufacturing: In the medical field, carbide end mills are used to produce intricate implants, surgical instruments, and diagnostic equipment. Their ability to work with biocompatible materials like titanium and create complex geometries is invaluable in this high-precision industry.

4. Mold and Die Making: Carbide end mills excel in creating molds and dies for various manufacturing processes. Their durability and ability to produce fine details make them ideal for machining hardened steels and other tough materials used in mold-making.

5. Electronics: The electronics industry utilizes carbide end mills for manufacturing circuit boards, heat sinks, and other components that require precise machining of materials like aluminum and copper.

Types of Carbide End Mills and Their Uses

Carbide end mills come in various types, each designed for specific applications:

1. Square End Mills: These are the most common type, used for general-purpose milling, slotting, and profiling. They create sharp corners and flat bottoms in cavities and slots.

2. Ball Nose End Mills: Ideal for 3D contouring and creating rounded profiles, these tools are extensively used in the mold and die industry for sculpting complex surfaces.

3. Corner Radius End Mills: These combine features of square and ball nose end mills, offering a rounded corner that adds strength to the cutting edge. They're excellent for general milling and profiling where a small radius is desired.

4. Tapered End Mills: Used for creating angled surfaces and tapered walls, these tools are crucial in industries like aerospace for manufacturing turbine blades.

5. Roughing End Mills: Designed with serrated edges, these tools quickly remove large amounts of material in the initial stages of machining, preparing the workpiece for finishing operations.

Advantages of Carbide End Mills

The popularity of carbide end mills stems from several key advantages:

1. Superior Hardness and Wear Resistance: Carbide's inherent hardness allows these tools to maintain their cutting edge for extended periods, even when machining abrasive materials.

2. High-Speed Capability: Carbide end mills can operate at significantly higher speeds than their high-speed steel (HSS) counterparts, leading to increased productivity and shorter machining times.

3. Excellent Heat Resistance: The thermal properties of carbide allow these tools to withstand the high temperatures generated during high-speed machining without losing their structural integrity.

4. Precision and Surface Finish: The rigidity and sharpness of carbide end mills contribute to achieving tight tolerances and superior surface finishes, reducing the need for secondary finishing operations.

5. Versatility in Material Compatibility: From soft aluminum to hardened steels and exotic alloys, carbide end mills can effectively machine a wide range of materials.

Optimizing Performance with Carbide End Mills

To maximize the benefits of carbide end mills, manufacturers must consider several factors:

1. Cutting Parameters: Proper selection of cutting speed, feed rate, and depth of cut is crucial for optimal performance and tool life. These parameters vary depending on the material being machined and the specific end mill design.

2. Coolant Strategy: Effective coolant application helps manage heat generation, extend tool life, and improve surface finish. High-pressure coolant systems are particularly beneficial when working with carbide end mills.

3. Tool Holder Selection: Using high-quality tool holders with minimal runout is essential for achieving the best results with carbide end mills. This ensures consistent cutting performance and reduces tool wear.

4. Workpiece Fixturing: Proper workpiece clamping and fixturing minimize vibration and deflection, allowing carbide end mills to perform at their best and produce accurate results.

5. Tool Path Optimization: Advanced CAM software can generate optimized tool paths that leverage the full capabilities of carbide end mills, ensuring efficient material removal and consistent tool engagement.

Emerging Trends and Future Outlook

The world of carbide end mills continues to evolve, driven by technological advancements and changing manufacturing needs:

1. Advanced Coatings: New coating technologies are being developed to further enhance the wear resistance and performance of carbide end mills, allowing for even higher cutting speeds and extended tool life.

2. Micro-Machining: As industries demand ever-smaller components, carbide end mills are being produced in increasingly minute sizes to facilitate micro-machining operations.

3. Additive Manufacturing Integration: Carbide end mills are finding new roles in hybrid manufacturing processes that combine additive manufacturing with traditional machining, enabling the production of complex geometries with high precision.

4. Smart Tools: The integration of sensors and monitoring systems into carbide end mills is on the horizon, allowing for real-time performance tracking and predictive maintenance.

5. Sustainable Manufacturing: Efforts are being made to develop more sustainable production methods for carbide end mills, including the use of recycled materials and more energy-efficient manufacturing processes.

Conclusion

Carbide end mills have undoubtedly transformed the landscape of modern manufacturing. Their unparalleled combination of hardness, wear resistance, and precision has made them indispensable tools across a wide spectrum of industries. From automotive and aerospace to medical devices and electronics, these versatile cutting tools continue to push the boundaries of what's possible in machining.

As technology advances and manufacturing challenges evolve, carbide end mills will undoubtedly continue to play a pivotal role in shaping the future of production. Their ability to machine complex geometries, work with challenging materials, and deliver exceptional results positions them at the forefront of innovation in manufacturing processes.

For manufacturers and machinists alike, understanding the capabilities and optimal use of carbide end mills is crucial for staying competitive in today's fast-paced industrial environment. By leveraging the strengths of these remarkable tools and staying abreast of emerging trends, businesses can unlock new levels of efficiency, precision, and innovation in their manufacturing operations.

As we look to the future, it's clear that carbide end mills will remain at the cutting edge of manufacturing technology, continually adapting to meet the ever-increasing demands for precision, speed, and quality in the production of components across all industries.
