In the realm of precision machining and manufacturing, few tools are as indispensable and versatile as the carbide end mill. These cutting-edge instruments have revolutionized the way industries approach material removal, shaping, and finishing processes. From aerospace to automotive, medical to mold-making, carbide end mills have found their place in a wide array of applications, offering unparalleled performance and efficiency. In this comprehensive exploration, we will delve into the multifaceted world of carbide end mills, uncovering their uses, benefits, and the latest innovations that continue to push the boundaries of machining capabilities.

Understanding Carbide End Mills

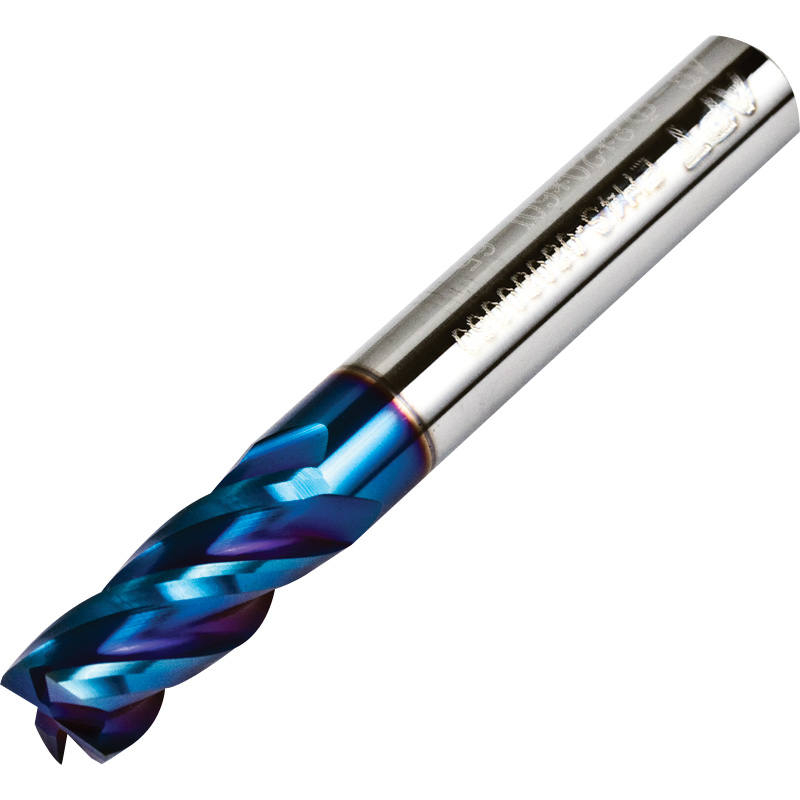

Before we dive into the myriad applications of carbide end mills, it's essential to understand what sets these tools apart. Carbide end mills are cutting tools primarily used in milling operations, designed to remove material from a workpiece by their rotary cutting motion. What makes them special is their composition – they are crafted from carbide, a compound of carbon and metal (typically tungsten) that offers exceptional hardness and wear resistance.

The anatomy of a carbide end mill is a marvel of engineering. Each component plays a crucial role in its performance:

1. Cutting edges: The sharp, precisely ground surfaces that perform the actual cutting.

2. Flutes: The deep grooves that allow for chip evacuation and coolant flow.

3. Helix angle: The angle at which the flutes twist around the tool, affecting chip removal and cutting forces.

4. Shank: The portion of the tool that is held in the machine's spindle.

5. End geometry: Can be flat, ball-nosed, or tapered, depending on the application.

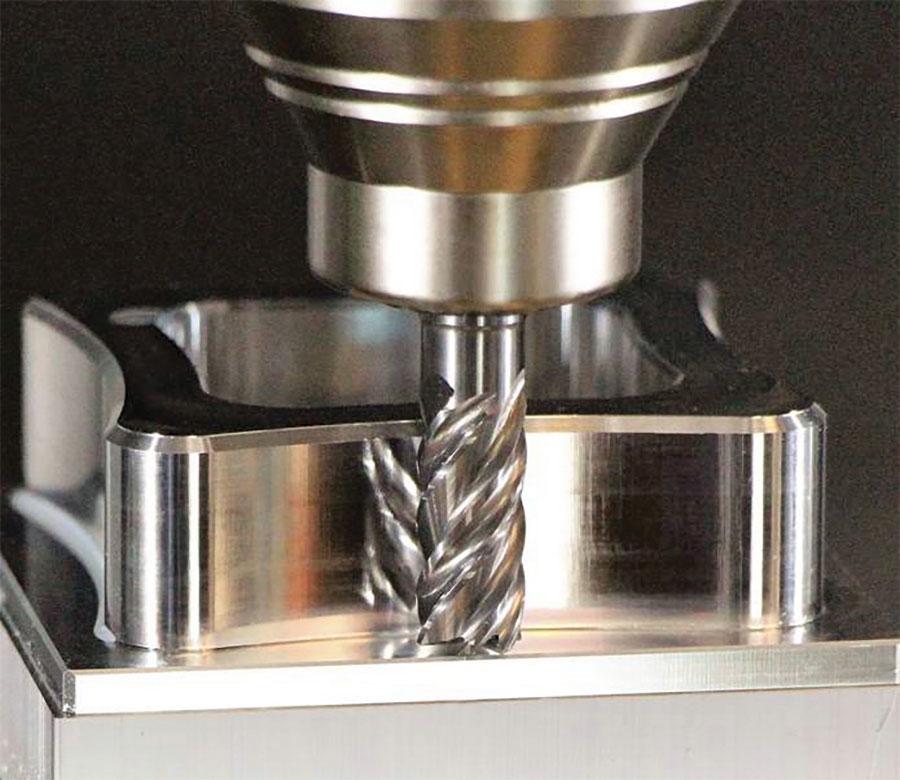

Applications Across Industries

Carbide end mills find their way into numerous industries, each leveraging the tool's unique capabilities to achieve specific manufacturing goals.

1. Aerospace Industry: In aerospace, where precision and reliability are paramount, carbide end mills are used to machine complex components from tough materials like titanium alloys and heat-resistant superalloys. They are employed in creating turbine blades, structural components, and intricate parts for aircraft engines. The high-speed cutting capabilities and excellent wear resistance of carbide end mills make them ideal for maintaining tight tolerances in these critical applications.

2. Automotive Sector: The automotive industry relies heavily on carbide end mills for manufacturing engine components, transmission parts, and molds for various vehicle parts. These tools are used in both prototyping and mass production processes, allowing for the creation of lightweight yet strong components that contribute to improved fuel efficiency and performance.

3. Medical Device Manufacturing: In the medical field, carbide end mills play a crucial role in producing implants, surgical instruments, and diagnostic equipment. Their ability to machine materials like titanium and stainless steel with high precision is essential for creating orthopedic implants, dental prosthetics, and intricate components for medical devices.

4. Mold and Die Industry: Mold makers and die manufacturers depend on carbide end mills for creating complex cavities and intricate details in hardened steels. These tools are used for roughing operations to remove large amounts of material quickly, as well as for finishing processes that require exceptional surface quality and dimensional accuracy.

5. Electronics and Semiconductor Industry: In the production of electronic components and semiconductor devices, carbide end mills are used to machine materials like copper, aluminum, and various plastics. They are essential for creating circuit boards, heat sinks, and precision components for electronic devices.

6. General Machining and Job Shops: For general machining applications, carbide end mills are the go-to tools for a wide range of operations. They are used for slotting, profiling, pocketing, and contouring in materials ranging from soft aluminum to hardened steels. Their versatility makes them indispensable in job shops that handle diverse projects and materials.

Advantages of Carbide End Mills

The widespread adoption of carbide end mills across industries is a testament to their numerous advantages:

1. Superior Hardness and Wear Resistance: Carbide's inherent hardness allows these end mills to maintain their cutting edge for extended periods, even when machining abrasive or hard materials. This translates to longer tool life and reduced downtime for tool changes.

2. High-Speed Cutting Capabilities: The thermal stability of carbide enables these end mills to operate at much higher speeds compared to their high-speed steel (HSS) counterparts. This increased cutting speed leads to higher productivity and shorter machining times.

3. Excellent Heat Resistance: Carbide end mills can withstand the high temperatures generated during high-speed machining processes without losing their structural integrity or cutting effectiveness.

4. Precision and Accuracy: The rigidity of carbide allows for the creation of end mills with very precise geometries, resulting in highly accurate cuts and superior surface finishes.

5. Versatility: Carbide end mills can be designed with various flute configurations, helix angles, and end geometries to suit a wide range of materials and cutting conditions.

6. Coolant-Through Options: Many carbide end mills are designed with internal coolant channels, allowing for efficient cooling and chip evacuation, especially in deep pocket milling and drilling operations.

Innovations in Carbide End Mill Technology

The field of carbide end mill technology is continuously evolving, with manufacturers and researchers pushing the boundaries of what these tools can achieve. Some of the latest innovations include:

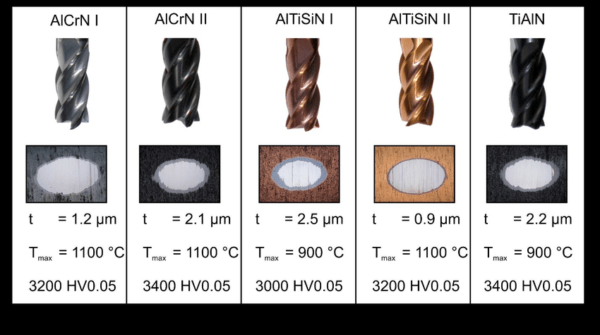

1. Advanced Coatings: New coating technologies, such as AlTiN (Aluminum Titanium Nitride) and nanocomposite coatings, are being developed to further enhance the wear resistance and thermal properties of carbide end mills. These coatings can significantly extend tool life and allow for even higher cutting speeds.

2. Optimized Geometries: Cutting edge preparation techniques and complex flute geometries are being refined to improve chip evacuation, reduce cutting forces, and enhance overall performance. Variable helix and variable pitch designs are becoming more common to reduce vibration and chatter during machining.

3. Micro-Grain Carbide: The development of ultra-fine grain carbide substrates allows for the creation of end mills with even sharper cutting edges and improved toughness, ideal for micro-machining applications.

4. Additive Manufacturing Integration: Some manufacturers are exploring the use of additive manufacturing techniques to create carbide end mills with complex internal structures, such as optimized coolant channels or variable material composition throughout the tool.

5. Smart Tools: The integration of sensors and monitoring systems into carbide end mills is an emerging trend, allowing for real-time data collection on tool wear, cutting forces, and machining conditions.

Best Practices for Using Carbide End Mills

To maximize the benefits of carbide end mills and ensure optimal performance, it's crucial to follow best practices:

1. Proper Tool Selection: Choose the right end mill for the specific material and operation. Consider factors such as the number of flutes, helix angle, and coating type based on the workpiece material and desired outcome.

2. Cutting Parameters: Use recommended cutting speeds, feed rates, and depths of cut for the specific carbide end mill and material being machined. Adhering to these parameters can significantly extend tool life and improve part quality.

3. Tool Holding: Ensure rigid and precise tool holding to minimize runout and vibration. Consider using shrink-fit or hydraulic tool holders for optimal performance.

4. Workpiece Fixturing: Secure the workpiece properly to prevent movement and vibration during machining, which can lead to poor surface finish and reduced tool life.

5. Coolant Management: Use appropriate coolant or cutting fluid, and ensure proper delivery to the cutting zone. This is crucial for heat dissipation and chip evacuation, especially in high-speed machining applications.

6. Tool Path Strategies: Implement modern tool path strategies such as trochoidal milling or dynamic milling to maintain consistent chip loads and extend tool life.

7. Regular Inspection and Maintenance: Inspect carbide end mills regularly for signs of wear or damage. Implement a tool management system to track usage and performance.

Future Trends and Challenges

As manufacturing technologies continue to advance, the future of carbide end mills looks promising, with several trends and challenges on the horizon:

1. Sustainability: There is a growing focus on developing more sustainable manufacturing processes, including the recycling and reuse of carbide tools. Manufacturers are exploring ways to reclaim and repurpose worn carbide end mills to reduce waste and conserve resources.

2. Artificial Intelligence and Machine Learning: The integration of AI and machine learning algorithms into CNC machining processes is expected to optimize the use of carbide end mills further. These technologies can predict tool wear, suggest optimal cutting parameters, and even adapt machining strategies in real-time.

3. Hybrid Manufacturing: The combination of additive manufacturing and traditional machining processes presents new opportunities and challenges for carbide end mill applications. Tools may need to be adapted to work effectively with materials produced through 3D printing.

4. Miniaturization: As products in industries like electronics and medical devices continue to shrink, there is an increasing demand for micro and nano-scale machining capabilities. This drives the development of even smaller and more precise carbide end mills.

5. New Material Challenges: The development of new, advanced materials in aerospace and other high-tech industries will require ongoing innovation in carbide end mill design and composition to effectively machine these materials.

Conclusion

Carbide end mills have revolutionized the machining industry, offering unparalleled performance, precision, and versatility across a wide range of applications. From aerospace components to medical implants, these tools continue to play a crucial role in shaping the products that define our modern world. As technology advances and new challenges emerge, the evolution of carbide end mills shows no signs of slowing down. Manufacturers, engineers, and machinists who stay abreast of the latest developments in this field will be well-positioned to leverage these powerful tools to their fullest potential, driving innovation and efficiency in their respective industries.

The journey of carbide end mills from their inception to their current state of technological sophistication is a testament to human ingenuity and the relentless pursuit of excellence in manufacturing. As we look to the future, it's clear that these versatile tools will continue to be at the forefront of machining technology, enabling the creation of ever more complex and precise components that push the boundaries of what's possible in modern manufacturing.
