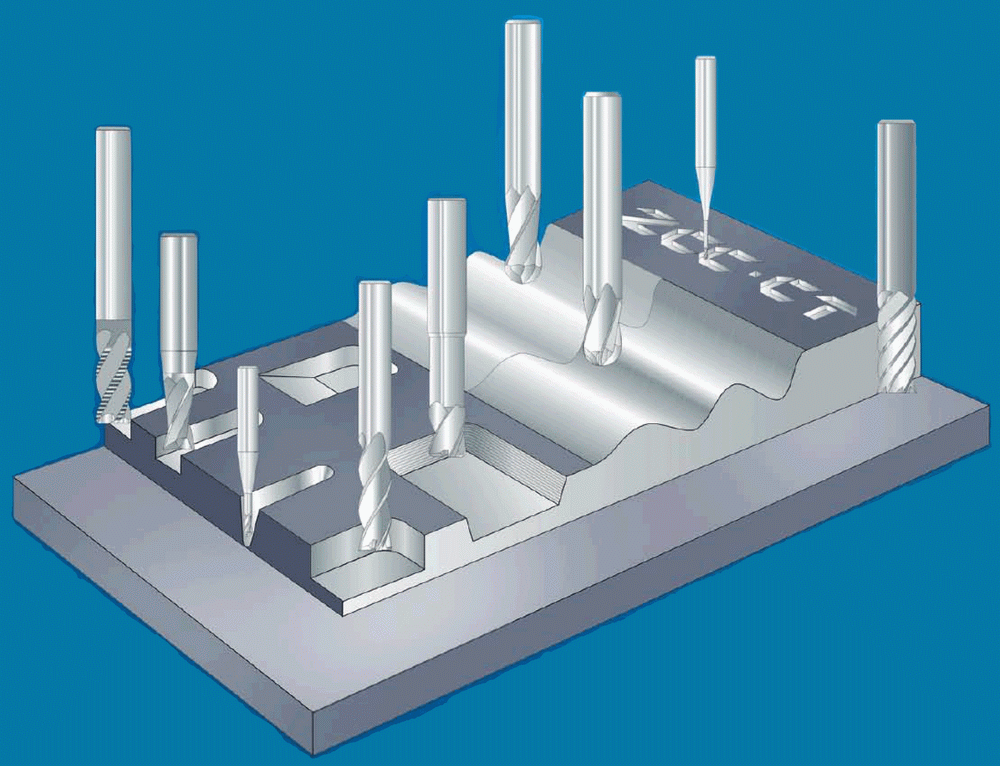

Carbide end mills are essential tools in the world of precision machining, playing a crucial role in various industries such as aerospace, automotive, and medical device manufacturing. These cutting tools are known for their exceptional hardness, wear resistance, and ability to maintain sharp edges even under extreme conditions. But have you ever wondered how these remarkable tools are made? Let's delve into the fascinating process of manufacturing carbide end mills, exploring the materials, techniques, and technologies that bring these indispensable cutting tools to life.
At the heart of every carbide end mill lies its primary material: tungsten carbide. This remarkable compound is created by combining tungsten and carbon atoms in a precise ratio, typically around 6% to 30% carbon and 70% to 94% tungsten. The result is a material that boasts an impressive combination of hardness and toughness, making it ideal for cutting tools that must withstand high temperatures and abrasive conditions.
The manufacturing process begins with the careful selection and preparation of tungsten carbide powder. This powder is not used in its pure form but is mixed with a binding agent, usually cobalt. The addition of cobalt is crucial as it acts as a cementing agent, holding the tungsten carbide particles together and providing the necessary toughness to prevent the tool from being too brittle.
Once the tungsten carbide and cobalt powders are precisely measured and mixed, the next step in the manufacturing process involves powder metallurgy techniques. This process allows for the creation of complex shapes with high dimensional accuracy, which is essential for producing end mills with specific geometries and cutting characteristics.
The mixed powder is poured into molds that have been carefully designed to create the desired shape of the end mill blank. These molds are typically made from materials that can withstand the high pressures and temperatures involved in the subsequent steps of the manufacturing process.
After the powder is in the mold, it undergoes a process called cold isostatic pressing. This technique involves subjecting the powder to extremely high pressure from all directions, compacting it into a solid form known as a "green" compact. At this stage, the material is still relatively soft and can be easily machined if necessary.
The next crucial step is sintering, a heat treatment process that transforms the compacted powder into a dense, solid material. During sintering, the green compact is heated to temperatures just below the melting point of tungsten carbide, typically around 1400°C to 1500°C. This intense heat causes the cobalt to melt and flow between the tungsten carbide particles, binding them together as it cools and solidifies. The result is a blank that is incredibly hard and wear-resistant, ready for the next stages of manufacturing.

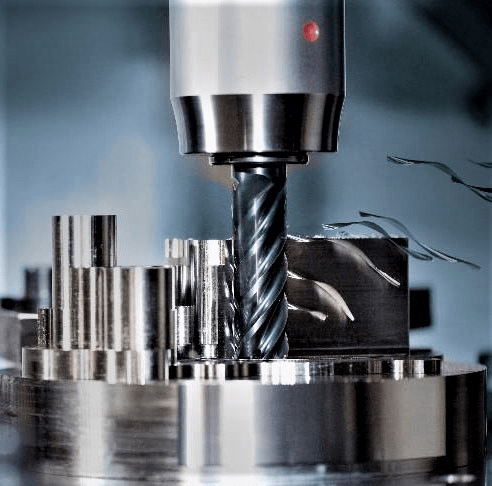

With the blank now formed, the process of shaping it into a functional end mill begins. This is where the true artistry of tool making comes into play, as skilled machinists and advanced CNC (Computer Numerical Control) grinding machines work in tandem to create the intricate geometries that define a carbide end mill's performance.
The grinding process starts with the creation of the tool's basic shape. High-precision grinding wheels, often made of diamond or other super-abrasive materials, are used to remove material from the blank, forming the tool's diameter, length, and general profile. This step requires extreme precision, as even the slightest deviation can affect the tool's performance and longevity.
Next comes the formation of the flutes – the spiral grooves that run along the length of the end mill. These flutes are critical for chip evacuation during cutting operations and play a significant role in the tool's efficiency. The number of flutes, their depth, and their helix angle are all carefully calculated and ground to optimize the end mill for specific materials and cutting conditions.
The cutting edges of the end mill are then ground to their final shape. This includes creating the primary and secondary relief angles, which reduce friction during cutting, and the rake angle, which affects how the tool cuts into the material. For more complex end mills, additional features such as variable flute spacing or differential pitch may be incorporated to reduce vibration and improve surface finish quality.
As manufacturing technologies have advanced, so too has the level of precision achievable in carbide end mill production. Today, manufacturers pay close attention to what's known as the tool's micro-geometry – the minute details of the cutting edge that can have a significant impact on performance.
This includes edge preparation techniques such as honing or creating a specific edge radius. These processes help to strengthen the cutting edge, reducing the likelihood of chipping and extending the tool's life. Some manufacturers also incorporate chip-breaker geometries or special surface treatments to improve chip control and reduce cutting forces.

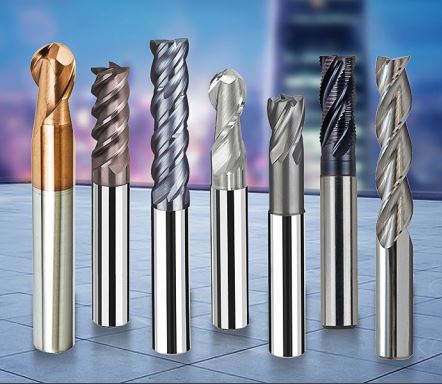

While carbide itself is an exceptionally hard material, many end mills receive an additional layer of protection in the form of specialized coatings. These coatings, often just a few micrometers thick, can significantly enhance the tool's performance and longevity.
Common coating materials include titanium nitride (TiN), titanium aluminum nitride (TiAlN), and diamond-like carbon (DLC). Each type of coating offers different benefits, such as increased hardness, improved heat resistance, or reduced friction. The choice of coating depends on the intended application of the end mill and the materials it will be cutting.
The coating process itself is a high-tech operation, typically involving physical vapor deposition (PVD) or chemical vapor deposition (CVD) techniques. In these processes, the coating material is vaporized and then deposited onto the surface of the end mill in a controlled environment. This results in an extremely thin, uniform layer that adheres strongly to the carbide substrate.
Throughout the manufacturing process, carbide end mills undergo rigorous quality control checks. This includes dimensional inspections using high-precision measuring equipment, such as coordinate measuring machines (CMMs) and optical comparators. The geometry of the flutes, the accuracy of the cutting edges, and the overall dimensions of the tool are all verified to ensure they meet the specified tolerances.
Surface finish is another critical aspect that is carefully monitored. The smoothness of the flutes and the sharpness of the cutting edges can significantly impact the tool's performance and the quality of the machined surfaces it produces. Advanced imaging techniques, including electron microscopy, may be used to inspect the micro-geometry of the cutting edges and the quality of the coating application.

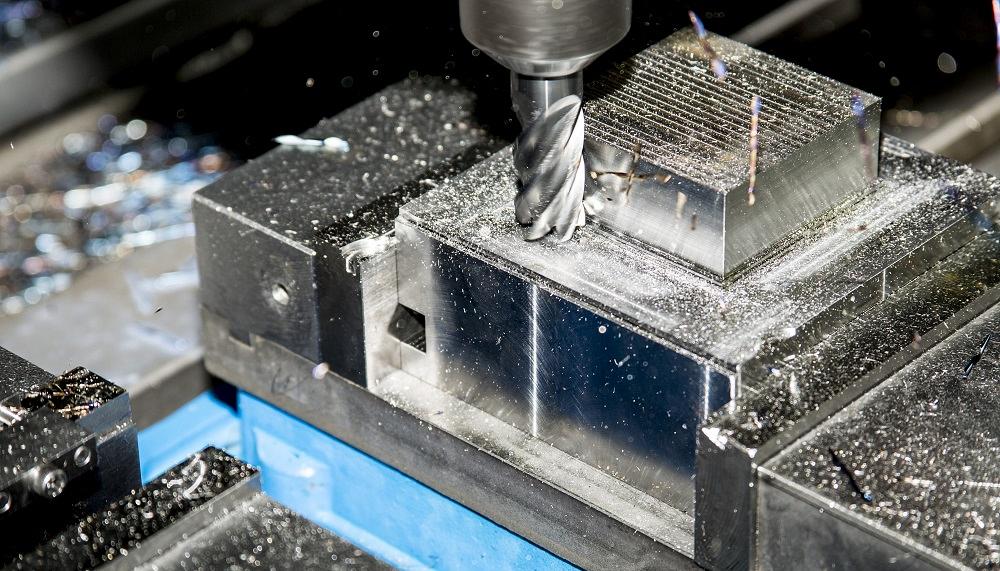

Many manufacturers also conduct performance testing on sample tools from each production batch. This might involve using the end mills to machine test pieces under controlled conditions, measuring factors such as cutting forces, tool wear, and the quality of the machined surface. These tests help to ensure that the end mills will perform as expected in real-world applications.
While there are standard designs for carbide end mills, the manufacturing process also allows for a high degree of customization. Engineers and tooling specialists often work closely with end-users to develop end mills tailored for specific applications or materials.
This might involve creating custom geometries, such as variable helix angles to reduce chatter in challenging materials, or incorporating special features like through-tool coolant channels for improved chip evacuation and cooling in deep pocketing operations. The ability to fine-tune every aspect of the end mill's design allows manufacturers to create tools that can significantly improve machining efficiency and quality in specific applications.
As with many industries, the manufacturing of carbide end mills is increasingly focusing on sustainability and environmental responsibility. This includes efforts to reduce waste, recycle materials, and improve energy efficiency in the production process.
One significant area of focus is the recycling of tungsten carbide. Given the valuable and sometimes scarce nature of the materials involved, many manufacturers have implemented programs to reclaim and recycle worn or broken carbide tools. These can be processed to recover the tungsten and cobalt, which can then be used to create new tools, reducing the demand for newly mined materials.
Additionally, advancements in manufacturing technologies, such as more efficient grinding processes and precision forming techniques, are helping to reduce material waste during production. Some manufacturers are also exploring alternative binding materials or manufacturing methods that could reduce the environmental impact of carbide tool production.
The field of carbide end mill manufacturing continues to evolve, driven by advances in materials science, manufacturing technologies, and the ever-increasing demands of modern machining operations. Research into new carbide formulations, innovative coating technologies, and advanced design optimization techniques promises to push the boundaries of what's possible with these essential cutting tools.
One area of particular interest is the use of additive manufacturing techniques in carbide tool production. While still in its early stages, 3D printing of carbide tools could potentially allow for even more complex geometries and internal features that are difficult or impossible to achieve with traditional manufacturing methods.
Another trend is the integration of sensors and smart technologies into cutting tools. While not yet common in end mills due to their small size, larger carbide cutting tools are beginning to incorporate sensors that can monitor factors like temperature, vibration, and wear in real-time. It's possible that future carbide end mills might include miniaturized versions of these technologies, providing machinists with unprecedented levels of control and insight into the cutting process.
The manufacturing of carbide end mills is a fascinating blend of metallurgy, precision engineering, and cutting-edge technology. From the careful formulation of the carbide material to the intricate grinding processes that shape the tool, every step in the production of these essential cutting tools is crucial to their performance.
As we've explored, the journey from raw tungsten carbide powder to a finished, high-performance end mill involves numerous complex processes, each requiring a high degree of skill and precision. The result is a tool that can withstand the rigors of modern machining operations, maintaining its sharp edge and accuracy even under extreme conditions.
The ongoing advancements in carbide end mill manufacturing are a testament to the importance of these tools in modern industry. As manufacturing processes continue to demand higher precision, faster production speeds, and the ability to work with increasingly diverse and challenging materials, the humble carbide end mill will undoubtedly continue to evolve, pushing the boundaries of what's possible in machining technology.
Whether you're a machinist working with these tools every day, an engineer designing parts to be manufactured, or simply someone fascinated by the intricacies of modern manufacturing, understanding how carbide end mills are made provides valuable insight into the complex world of precision tooling. It's a world where material science meets mechanical engineering, where microns matter, and where the quest for perfection drives continuous innovation.
As we look to the future, it's clear that carbide end mills will continue to play a crucial role in shaping our world, quite literally cutting the path to new possibilities in manufacturing and beyond.
