Cobalt Carbide End Mills: The Cutting Edge of Precision Machining

Content Menu

● Introduction

● Understanding End Mills

● The Composition of Cobalt Carbide End Mills

● Advantages of Cobalt Carbide End Mills

● Applications of Cobalt Carbide End Mills

● Optimizing Performance with Cobalt Carbide End Mills

● Coatings and Surface Treatments

● Challenges and Considerations

● Future Trends and Innovations

● Conclusion

Introduction

In the world of precision machining, where accuracy and efficiency are paramount, cobalt carbide end mills have emerged as indispensable tools for professionals across various industries. These cutting-edge instruments represent the pinnacle of machining technology, combining the strength of carbide with the heat resistance of cobalt to create a tool that excels in even the most demanding applications. This article delves deep into the world of cobalt carbide end mills, exploring their composition, advantages, applications, and the impact they have on modern manufacturing processes.

Understanding End Mills

Before we focus specifically on cobalt carbide end mills, it's essential to understand what end mills are and their role in machining. End mills are rotary cutting tools used in milling applications, designed to remove material from a workpiece. Unlike drill bits, which are primarily designed for vertical drilling, end mills are versatile tools capable of cutting in multiple directions. They feature cutting edges on both their end face and their sides, allowing for a wide range of operations such as profiling, contouring, slotting, and counterboring.

End mills come in various types, each designed for specific applications and materials. The most common types include:

1. Square End Mills: These are general-purpose tools used for slotting, profiling, and plunge cutting. They have flat ends that create square corners and flat-bottomed cavities.

2. Ball Nose End Mills: Featuring a hemispherical tip, these tools are ideal for 3D contour work and curved surface milling, offering high accuracy in complex geometries.

3. Tapered End Mills: These have a cutting edge that tapers at the end, making them suitable for machining draft angles and deep cavities.

4. Roughing End Mills: Designed for rapid material removal in the initial stages of machining, these tools prepare the workpiece for finishing operations.

The Composition of Cobalt Carbide End Mills

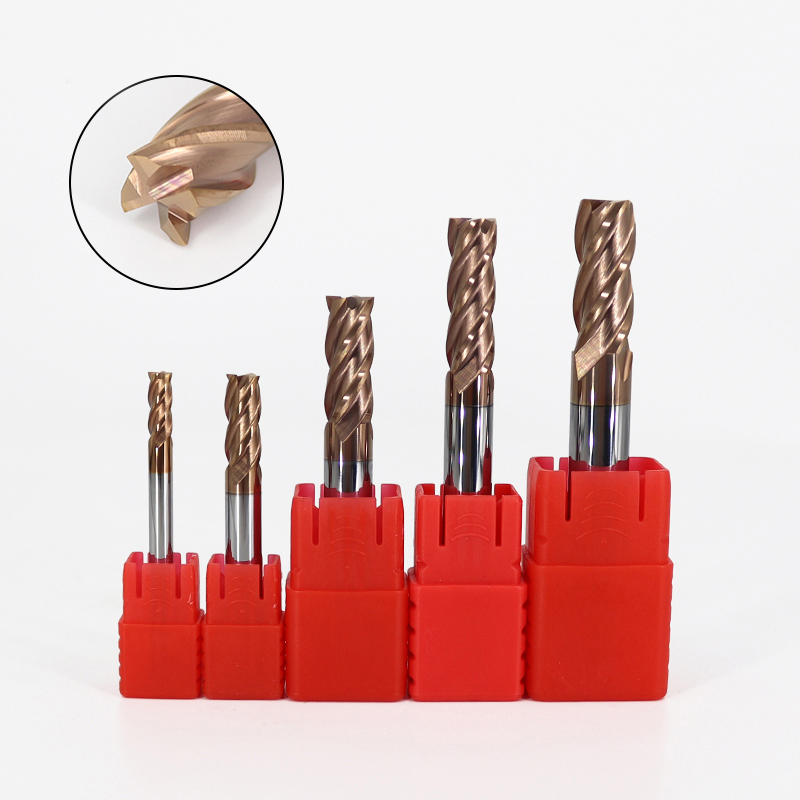

Cobalt carbide end mills represent a significant advancement in cutting tool technology. They are primarily composed of tungsten carbide, a compound known for its exceptional hardness and wear resistance. The addition of cobalt to the carbide matrix enhances the tool's toughness and heat resistance, making it particularly effective for machining hard materials and withstanding high temperatures generated during cutting operations.

The typical composition of a cobalt carbide end mill includes:

1. Tungsten Carbide: This forms the base material, providing extreme hardness and wear resistance.

2. Cobalt: Acting as a binder, cobalt enhances the tool's toughness and ability to withstand thermal shock.

3. Other Carbides: Small amounts of other carbides like titanium carbide or tantalum carbide may be added to further improve specific properties.

The percentage of cobalt in the mixture can vary, typically ranging from 6% to 12%. Higher cobalt content generally results in increased toughness but slightly reduced hardness, allowing manufacturers to tailor the tool's properties to specific applications.

Advantages of Cobalt Carbide End Mills

Cobalt carbide end mills offer several significant advantages over traditional high-speed steel (HSS) and standard carbide tools:

1. Superior Wear Resistance: The carbide composition provides exceptional resistance to abrasive wear, maintaining sharp cutting edges for longer periods.

2. High Heat Resistance: The addition of cobalt enhances the tool's ability to withstand high temperatures generated during high-speed machining operations.

3. Increased Cutting Speeds: Cobalt carbide end mills can operate at significantly higher cutting speeds compared to HSS tools, improving productivity.

4. Excellent Toughness: The cobalt binder increases the tool's toughness, reducing the risk of chipping and breakage during interrupted cuts or when machining hard materials.

5. Longer Tool Life: The combination of wear resistance and toughness results in a longer overall tool life, reducing downtime and tooling costs.

6. Precision and Surface Finish: These end mills can maintain tight tolerances and produce superior surface finishes, even in challenging materials.

7. Versatility: Cobalt carbide end mills can effectively machine a wide range of materials, from hardened steels to exotic alloys.

Applications of Cobalt Carbide End Mills

The unique properties of cobalt carbide end mills make them suitable for a wide range of machining applications across various industries:

1. Aerospace: In the aerospace industry, where precision and reliability are critical, cobalt carbide end mills are used to machine components from tough materials like titanium alloys, Inconel, and hardened steels.

2. Automotive: These tools are employed in the production of engine components, transmission parts, and molds for automotive manufacturing.

3. Die and Mold Making: The ability to maintain sharp edges and produce fine surface finishes makes cobalt carbide end mills ideal for creating complex molds and dies.

4. Medical Device Manufacturing: The biocompatibility of carbide and the precision offered by these tools make them suitable for producing medical implants and surgical instruments.

5. General Machining: In machine shops and fabrication facilities, cobalt carbide end mills are used for a variety of operations on materials ranging from aluminum to hardened steels.

6. Electronics: The miniaturization trend in electronics requires tools capable of machining small, precise components, a task well-suited to cobalt carbide end mills.

Optimizing Performance with Cobalt Carbide End Mills

To maximize the benefits of cobalt carbide end mills, machinists and engineers must consider several factors:

1. Cutting Parameters: Proper selection of cutting speed, feed rate, and depth of cut is crucial. While cobalt carbide tools can handle higher cutting speeds, they must be balanced with appropriate feed rates to prevent premature wear or breakage.

2. Coolant Strategy: Effective cooling and lubrication are essential, especially when machining at high speeds or working with tough materials. High-pressure coolant systems can significantly enhance tool life and chip evacuation.

3. Tool Geometry: The choice of flute count, helix angle, and end geometry should be tailored to the specific material and operation. For example, fewer flutes provide better chip evacuation in softer materials, while more flutes offer better surface finish in harder materials.

4. Workpiece Fixturing: Rigid workholding is critical to minimize vibration and ensure consistent cutting conditions, which is particularly important when pushing the limits of these high-performance tools.

5. Machine Tool Capabilities: To fully leverage the potential of cobalt carbide end mills, machine tools must have sufficient rigidity, spindle speed, and power to maintain stable cutting conditions.

Coatings and Surface Treatments

Many cobalt carbide end mills are further enhanced with specialized coatings or surface treatments to improve their performance:

1. TiAlN (Titanium Aluminum Nitride): This coating provides excellent heat resistance and hardness, making it ideal for high-speed machining of hardened materials.

2. TiCN (Titanium Carbon Nitride): Offering a good balance of hardness and toughness, TiCN coatings are suitable for a wide range of materials and cutting conditions.

3. AlCrN (Aluminum Chromium Nitride): Known for its high oxidation resistance, this coating excels in dry machining applications.

4. DLC (Diamond-Like Carbon): This ultra-hard coating provides exceptional wear resistance and low friction, making it ideal for machining abrasive materials.

5. Cryogenic Treatment: Some manufacturers subject cobalt carbide end mills to cryogenic processing, which can enhance the tool's wear resistance and overall performance.

These coatings and treatments can significantly extend tool life, improve cutting performance, and allow for even higher cutting speeds in certain applications.

Challenges and Considerations

While cobalt carbide end mills offer numerous advantages, they also present some challenges that users should be aware of:

1. Cost: The initial cost of cobalt carbide end mills is higher than that of HSS tools. However, their longer life and improved performance often result in lower overall machining costs.

2. Brittleness: Despite the added toughness from cobalt, these tools are still more brittle than HSS end mills. Care must be taken to avoid sudden impacts or excessive vibration.

3. Regrinding: Regrinding cobalt carbide end mills requires specialized equipment and expertise, which may not be available in all machine shops.

4. Material Specificity: While versatile, the performance of cobalt carbide end mills can vary significantly depending on the workpiece material. Careful selection and parameter optimization are necessary for each application.

5. Machine Tool Requirements: To fully utilize the capabilities of these high-performance tools, machine tools must meet certain rigidity and power requirements, which may necessitate investment in updated equipment.

Future Trends and Innovations

The field of cutting tool technology is continuously evolving, and cobalt carbide end mills are at the forefront of this innovation. Some emerging trends and developments include:

1. Nano-grain Carbides: Research into ultra-fine grain structures promises to further enhance the strength and wear resistance of carbide tools.

2. Advanced Coating Technologies: New multi-layer and nano-composite coatings are being developed to provide even better performance and longevity.

3. Additive Manufacturing: 3D printing technologies are being explored for creating complex internal cooling channels and optimized cutting geometries in end mills.

4. Smart Tools: Integration of sensors and IoT technologies into cutting tools for real-time monitoring of tool wear and cutting conditions.

5. Sustainable Manufacturing: Development of cobalt-reduced or cobalt-free carbide grades to address environmental and supply chain concerns.

Conclusion

Cobalt carbide end mills represent a pinnacle of cutting tool technology, offering a combination of hardness, toughness, and heat resistance that makes them indispensable in modern machining operations. From aerospace components to medical devices, these versatile tools enable manufacturers to push the boundaries of what's possible in terms of precision, efficiency, and material capabilities.

As manufacturing technologies continue to advance, cobalt carbide end mills will undoubtedly evolve, incorporating new materials, coatings, and designs to meet the ever-increasing demands of industry. For machinists, engineers, and manufacturing professionals, staying informed about these developments and understanding how to optimize the use of cobalt carbide end mills will be crucial in maintaining a competitive edge in the global marketplace.

The journey of cobalt carbide end mills from specialized tools to mainstream manufacturing staples is a testament to the ongoing innovation in materials science and machining technology. As we look to the future, these high-performance cutting tools will continue to play a vital role in shaping the products and technologies that define our modern world, one precision cut at a time.
