In the ever-evolving world of manufacturing and precision engineering, solid carbide end mills have emerged as indispensable tools, revolutionizing the machining industry. These cutting-edge instruments have become the backbone of modern machining processes, offering unparalleled performance, efficiency, and versatility. This article delves into the reasons why solid carbide end mills are essential in today's machining landscape, exploring their unique properties, applications, and the advantages they bring to various industries.

Understanding Solid Carbide End Mills

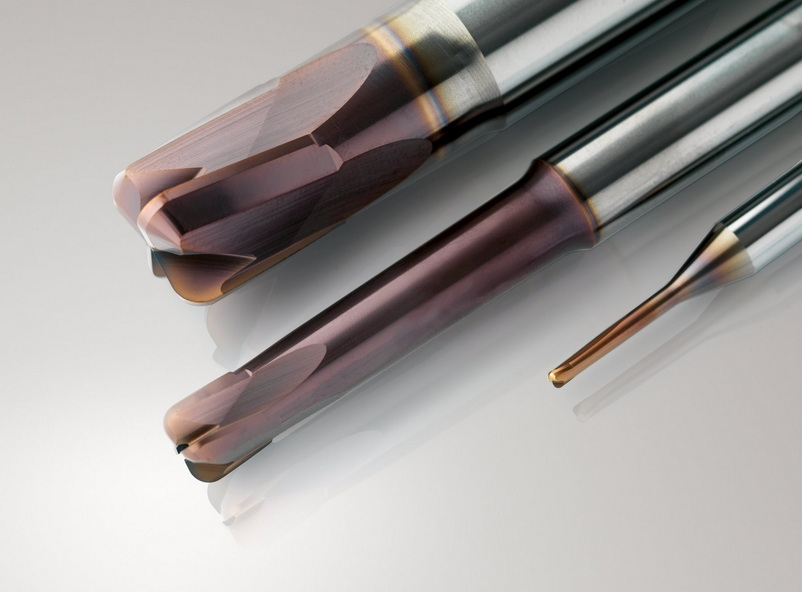

Before we explore their importance, it's crucial to understand what solid carbide end mills are. These cutting tools are cylindrical in shape and are made entirely from carbide, a compound of carbon and metal (typically tungsten). The end mill's body features sharp cutting edges along its sides and often on its tip, allowing it to remove material from a workpiece efficiently.

Solid carbide end mills come in various sizes, shapes, and designs, each tailored for specific machining operations. From standard two-flute designs to complex variable helix configurations, these tools are engineered to meet the diverse needs of modern manufacturing processes.

Key Properties of Solid Carbide End Mills

The exceptional performance of solid carbide end mills stems from several key properties:

1. Hardness and Wear Resistance: Carbide is significantly harder than high-speed steel (HSS), the traditional material for cutting tools. This hardness translates to superior wear resistance, allowing carbide end mills to maintain their sharp cutting edges for extended periods, even under demanding conditions.

2. Heat Resistance: Carbide exhibits excellent thermal stability, enabling these end mills to withstand the high temperatures generated during high-speed machining operations without losing their structural integrity or cutting efficiency.

3. Rigidity: The inherent stiffness of carbide provides solid end mills with exceptional rigidity. This property is crucial for maintaining accuracy and reducing vibration during machining, especially when working with tough materials or performing deep cuts.

4. Thermal Conductivity: Carbide's ability to conduct heat away from the cutting edge helps prevent premature tool wear and extends the overall lifespan of the end mill.

Applications in Modern Machining

Solid carbide end mills have found their place in a wide array of machining applications across various industries. Their versatility and performance make them suitable for both roughing and finishing operations. Some primary applications include:

1. Aerospace: In the aerospace industry, where precision and reliability are paramount, solid carbide end mills are used to machine complex components from tough materials like titanium alloys and heat-resistant superalloys (HRSAs).

2. Automotive: Carbide end mills play a crucial role in manufacturing engine components, transmission parts, and other precision elements in the automotive sector. Their ability to maintain tight tolerances and produce excellent surface finishes is particularly valuable in this industry.

3. Medical Devices: The medical industry relies on solid carbide end mills for producing intricate implants, surgical instruments, and other medical devices that require high precision and biocompatibility.

4. Mold and Die Making: In the production of molds and dies, carbide end mills excel at creating complex 3D surfaces with high accuracy and superior surface finish, essential for producing quality plastic and metal parts.

5. General Machining: From small job shops to large manufacturing facilities, solid carbide end mills are used in a wide range of general machining operations, including face milling, slot milling, plunging, and contouring.

Advantages in Modern Machining

The widespread adoption of solid carbide end mills in modern machining can be attributed to several key advantages:

1. Increased Productivity: The superior hardness and wear resistance of carbide allow these end mills to operate at higher cutting speeds and feed rates compared to HSS tools. This capability translates to faster material removal rates and reduced machining times, significantly boosting overall productivity.

2. Improved Surface Finish: The rigidity and precision of solid carbide end mills contribute to excellent surface finishes, often eliminating the need for secondary finishing operations. This not only saves time but also ensures consistent quality across machined parts.

3. Enhanced Accuracy: The stiffness of carbide, combined with advanced tool geometries, enables solid end mills to maintain tight tolerances even during challenging machining operations. This precision is crucial for industries that demand high-accuracy components.

4. Longer Tool Life: Despite their higher initial cost, solid carbide end mills often prove more economical in the long run due to their extended tool life. The ability to withstand wear and maintain sharp cutting edges for longer periods reduces the frequency of tool changes and associated downtime.

5. Versatility: Solid carbide end mills are available in a wide range of designs, including variable flute spacing, different helix angles, and specialized geometries. This variety allows manufacturers to select the optimal tool for specific materials and machining conditions, enhancing overall process efficiency.

6. Compatibility with Modern CNC Machines: The properties of solid carbide end mills make them ideal for use with advanced CNC machines that feature high-speed spindles and sophisticated control systems. This compatibility allows manufacturers to fully leverage the capabilities of modern machining centers.

Advancements in Solid Carbide End Mill Technology

The field of solid carbide end mill technology is continuously evolving, with manufacturers investing heavily in research and development to push the boundaries of performance and efficiency. Some notable advancements include:

1. Micro-Grain Carbide: The development of ultra-fine grain carbide grades has led to end mills with even greater hardness and toughness. These tools offer improved wear resistance and can maintain sharp cutting edges for extended periods, even in challenging applications.

2. Advanced Coatings: Innovative coating technologies, such as AlTiN (Aluminum Titanium Nitride) and diamond-like carbon (DLC) coatings, further enhance the performance of solid carbide end mills. These coatings provide additional wear resistance, reduce friction, and improve heat dissipation, allowing for higher cutting speeds and extended tool life.

3. Optimized Geometries: Tool manufacturers are continually refining end mill geometries to improve chip evacuation, reduce cutting forces, and enhance overall performance. Variable helix angles, asymmetrical flute designs, and specialized corner geometries are just a few examples of these advancements.

4. Additive Manufacturing: The emergence of 3D printing technologies in tool manufacturing has opened up new possibilities for creating complex internal cooling channels and optimized structures within solid carbide end mills, further improving their performance and longevity.

Challenges and Considerations

While solid carbide end mills offer numerous advantages, they are not without challenges. Some considerations for their effective use include:

1. Initial Cost: Solid carbide end mills generally have a higher upfront cost compared to HSS tools. However, their longer tool life and improved performance often result in a lower cost per part over time.

2. Brittleness: Although carbide is extremely hard, it can be brittle if not handled properly. Care must be taken during setup and operation to avoid chipping or breakage, especially when working with interrupted cuts or unstable workpiece setups.

3. Machine Capabilities: To fully leverage the benefits of solid carbide end mills, machine tools must have sufficient rigidity, spindle speed, and coolant delivery capabilities. Older or less capable machines may not be able to utilize these tools to their full potential.

4. Proper Programming: The high performance of carbide end mills requires careful consideration in CNC programming. Appropriate cutting parameters, tool paths, and entry/exit strategies must be employed to maximize tool life and part quality.

5. Material-Specific Selection: Different workpiece materials may require specific carbide grades, coatings, or geometries for optimal performance. Manufacturers must carefully select the right tool for each application to achieve the best results.

Future Trends and Innovations

As manufacturing technologies continue to advance, the future of solid carbide end mills looks promising. Some emerging trends and innovations include:

1. Integration with Digital Technologies: The development of "smart" end mills with embedded sensors for real-time monitoring of tool wear, cutting forces, and vibration is on the horizon. This integration with Industry 4.0 technologies will enable predictive maintenance and adaptive machining strategies.

2. Sustainable Manufacturing: There is a growing focus on developing more sustainable manufacturing processes, including the recycling and remanufacturing of carbide tools. Innovations in this area will help reduce the environmental impact of tool production and disposal.

3. Hybrid Materials: Research into combining carbide with other advanced materials, such as ceramics or high-performance alloys, may lead to a new generation of cutting tools with even greater performance and durability.

4. Customization and Rapid Prototyping: Advancements in additive manufacturing and rapid prototyping technologies may enable the production of customized solid carbide end mills tailored to specific applications, potentially revolutionizing tool design and manufacturing processes.

Conclusion

Solid carbide end mills have become essential tools in modern machining, driving improvements in productivity, precision, and efficiency across various industries. Their unique properties, including superior hardness, wear resistance, and thermal stability, make them indispensable for tackling the challenges of today's demanding manufacturing environment.

As technology continues to evolve, solid carbide end mills are likely to play an even more crucial role in shaping the future of machining. From aerospace and automotive to medical devices and beyond, these versatile tools will continue to push the boundaries of what is possible in precision manufacturing.

The ongoing advancements in materials science, coating technologies, and tool design promise to further enhance the capabilities of solid carbide end mills, ensuring their place at the forefront of modern machining for years to come. As manufacturers strive for greater efficiency, accuracy, and competitiveness, the importance of these cutting-edge tools in their arsenal cannot be overstated.

In conclusion, solid carbide end mills have proven themselves to be not just tools, but enablers of innovation and progress in the machining industry. Their ability to meet the ever-increasing demands for precision, speed, and reliability makes them an indispensable component of modern manufacturing processes, solidifying their position as essential instruments in the pursuit of engineering excellence.
