Introduction

In the world of precision machining and metalworking, carbide end mills stand out as indispensable tools. These cutting instruments, known for their exceptional hardness and wear resistance, play a crucial role in shaping various materials, from soft metals to hardened steels. This article delves into the composition of carbide end mills, exploring what they're made of, their unique properties, and why they've become the preferred choice for many manufacturing processes.

What Are Carbide End Mills?

Before we explore their composition, let's first understand what carbide end mills are. End mills are cutting tools used in milling applications, designed to remove material from a workpiece by moving along multiple axes. They are essentially rotating cutting instruments with teeth on the end and the periphery. Carbide end mills, as the name suggests, are end mills primarily made from carbide materials, which give them their exceptional hardness and wear resistance.

The Core Composition of Carbide End Mills

Carbide end mills are primarily composed of two main elements: tungsten carbide (WC) particles and a metallic binder, typically cobalt (Co). This combination creates a material known as cemented carbide or simply "carbide." The specific composition can vary depending on the intended application and desired properties of the end mill.

Tungsten Carbide (WC)

Tungsten carbide is the primary ingredient in carbide end mills, constituting the majority of the tool's composition. It is an inorganic chemical compound that combines equal parts of tungsten and carbon atoms. Tungsten carbide is renowned for its extreme hardness, second only to diamond among common materials. This hardness is what gives carbide end mills their exceptional cutting ability and wear resistance.

The tungsten carbide used in end mills is typically in the form of ultra-fine grains. The size of these grains can significantly affect the properties of the final tool. Generally, finer grain sizes result in increased hardness and wear resistance but may decrease the tool's toughness.

Cobalt Binder (Co)

Cobalt serves as the binder material in carbide end mills, typically making up a smaller percentage of the composition. The cobalt binder plays a crucial role in holding the tungsten carbide particles together and providing the necessary toughness to prevent the tool from being too brittle.

The amount of cobalt in the mixture significantly influences the properties of the end mill:

◆ Higher cobalt content: Results in a tougher but softer tool, suitable for roughing operations and machining softer materials.

◆ Lower cobalt content: Produces a harder but more brittle tool, ideal for finishing operations and machining harder materials.

Manufacturing Process of Carbide End Mills

The production of carbide end mills involves a sophisticated process known as powder metallurgy. Here's a simplified overview of the steps involved:

1. Powder Preparation: Tungsten carbide and cobalt powders are carefully measured and mixed in the desired proportions.

2. Pressing: The powder mixture is compressed into a near-net shape of the end mill using high-pressure presses.

3. Sintering: The compressed shape is heated in a controlled atmosphere to temperatures near the melting point of cobalt. This process causes the cobalt to melt and flow between the tungsten carbide particles, binding them together.

4. Grinding: After cooling, the sintered carbide blank is ground to the final shape and dimensions of the end mill. This step involves precision grinding of the flutes, cutting edges, and other geometrical features.

5. Coating (Optional): Many carbide end mills receive an additional coating to enhance their performance further.

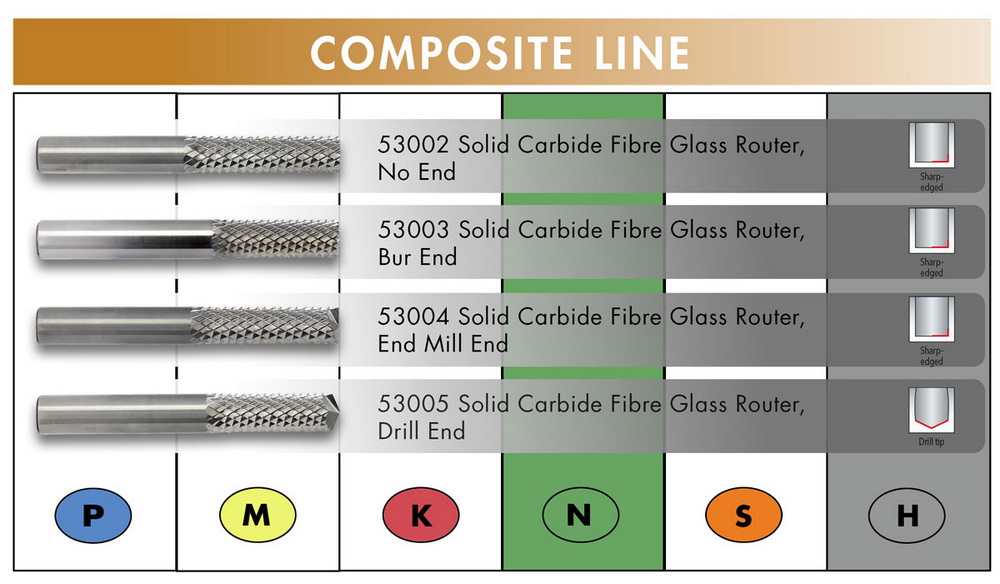

Types of Carbide End Mills

Carbide end mills come in various types, each designed for specific applications and materials. Some common types include:

1. Square End Mills: These have a flat bottom and are used for creating square corners and flat-bottomed cavities.

2. Ball Nose End Mills: Featuring a rounded tip, these are ideal for 3D contouring and finishing operations.

3. Corner Radius End Mills: These have a small radius at the corner, providing strength to the cutting edge and improving finish quality.

4. Tapered End Mills: With a conical shape, these are used for creating angled surfaces and tapered holes.

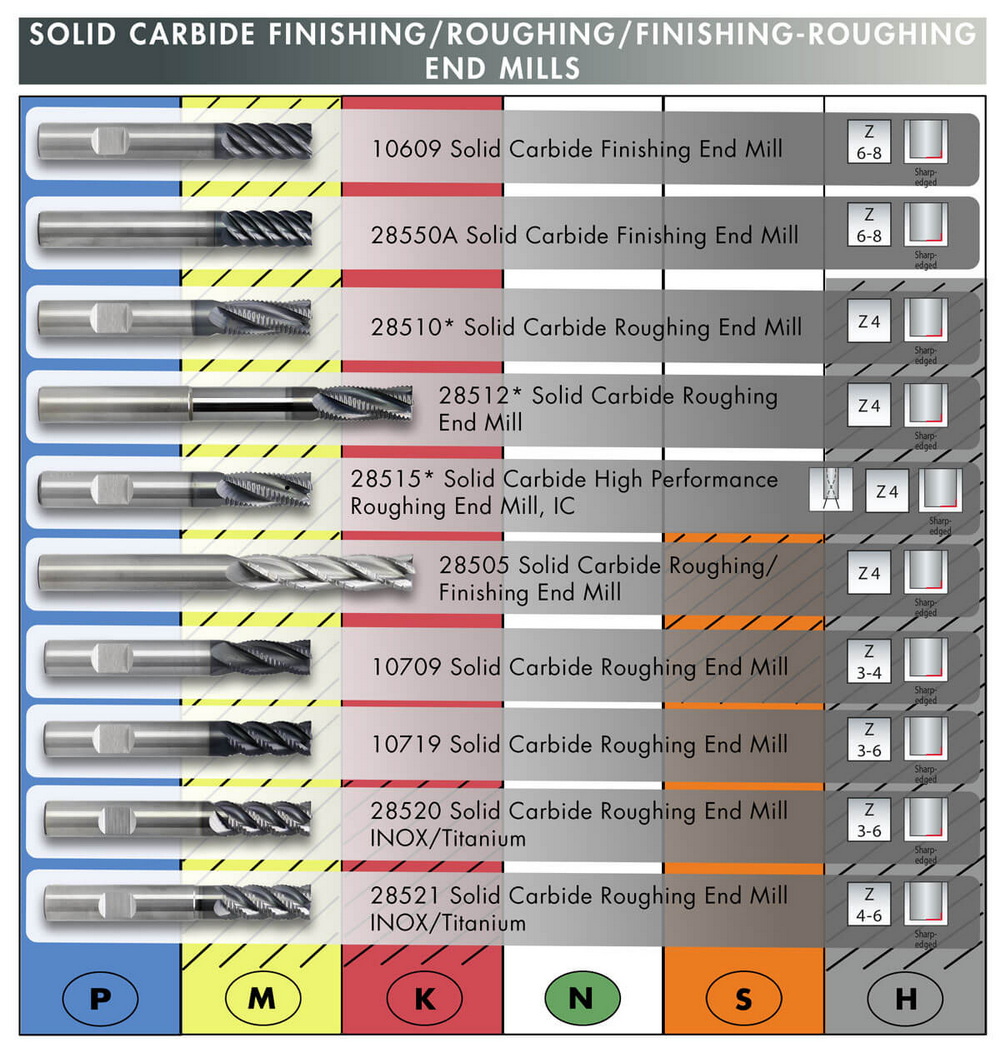

5. Roughing End Mills: These have serrated flutes designed to break chips into smaller pieces, making them ideal for high material removal rates.

Factors Affecting Carbide End Mill Performance

Several factors influence the performance of carbide end mills:

1. Carbide Grade: The specific combination of tungsten carbide grain size and cobalt content determines the grade of the carbide. Different grades are suited for different applications.

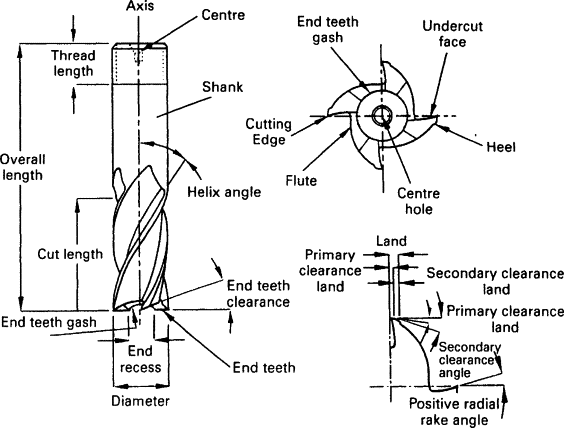

2. Geometry: The design of the end mill, including the number of flutes, helix angle, and cutting edge preparation, significantly affects its performance.

3. Coatings: Many carbide end mills are coated with materials like Titanium Nitride (TiN), Titanium Aluminum Nitride (TiAlN), or Diamond-Like Carbon (DLC) to enhance hardness, wear resistance, and heat dissipation.

4. Manufacturing Quality: The precision of the grinding process and overall quality control during manufacturing play crucial roles in the tool's performance.

Advantages of Carbide End Mills

Carbide end mills offer several advantages over their high-speed steel (HSS) counterparts:

1. Higher Hardness: Carbide is significantly harder than HSS, allowing for better wear resistance and longer tool life.

2. Heat Resistance: Carbide maintains its hardness at higher temperatures, enabling higher cutting speeds and feeds.

3. Rigidity: The stiffness of carbide allows for better dimensional accuracy and surface finish.

4. Productivity: Due to their ability to run at higher speeds and feeds, carbide end mills can significantly increase machining productivity.

Applications of Carbide End Mills

Carbide end mills find use in a wide range of industries and applications:

1. Aerospace: For machining lightweight alloys and heat-resistant superalloys used in aircraft components.

2. Automotive: In the production of engine parts, molds for body panels, and various other components.

3. Medical: For manufacturing precision medical devices and implants.

4. Mold and Die: In the creation of complex molds and dies for various manufacturing processes.

5. General Machining: For a wide array of metalworking operations in machine shops and manufacturing facilities.

Challenges and Considerations

While carbide end mills offer numerous advantages, they also come with some challenges:

1. Cost: Carbide end mills are generally more expensive than HSS tools, although this is often offset by their longer life and higher productivity.

2. Brittleness: Despite the toughness provided by the cobalt binder, carbide is more brittle than HSS and can chip if not used correctly.

3. Regrinding: Regrinding carbide end mills requires specialized equipment and expertise, making it less common than regrinding HSS tools.

4. Proper Use: To maximize the benefits of carbide end mills, proper speeds, feeds, and cutting conditions must be maintained.

Future Trends in Carbide End Mill Technology

The field of carbide end mill technology continues to evolve. Some emerging trends include:

1. Nano-grain Carbides: Development of carbides with even finer grain structures for improved hardness and wear resistance.

2. Advanced Coatings: Research into new coating materials and techniques to further enhance tool performance.

3. Additive Manufacturing: Exploration of 3D printing technologies for creating complex carbide tool geometries.

4. Smart Tools: Integration of sensors and monitoring systems into carbide tools for real-time performance tracking.

Conclusion

Carbide end mills, with their unique composition of tungsten carbide and cobalt, have revolutionized the world of machining. Their exceptional hardness, wear resistance, and heat tolerance make them indispensable tools in modern manufacturing processes. From their basic composition to the intricate manufacturing process, from the variety of types to their wide-ranging applications, carbide end mills represent a pinnacle of cutting tool technology.

As we look to the future, ongoing research and development in materials science and manufacturing techniques promise to push the boundaries of what's possible with carbide end mills even further. Whether it's through the development of new carbide grades, innovative geometries, advanced coatings, or smart manufacturing technologies, the evolution of carbide end mills continues to drive progress in the machining industry.

For machinists, engineers, and manufacturers, understanding the composition and characteristics of carbide end mills is crucial for selecting the right tool for each job and optimizing machining processes. As we continue to demand higher precision, faster production, and the ability to machine increasingly complex materials, carbide end mills will undoubtedly remain at the forefront of cutting tool technology, continually adapting to meet the challenges of modern manufacturing.
