The Cutting Edge: Exploring Carbide Materials in End Mill Manufacturing

Content Menu

● Understanding Carbide Materials

● The Manufacturing Process of Carbide End Mills

● Properties of Carbide End Mills

● Coatings and Their Impact

● Selecting the Right Carbide End Mill

● Advancements in Carbide Technology

● Conclusion

End mills are essential cutting tools in the manufacturing industry, widely used for various machining operations such as milling, drilling, and contouring. At the heart of these versatile tools lies a remarkable material known as carbide, which gives end mills their exceptional cutting performance and durability. In this article, we'll delve into the world of carbide end mills, exploring the types of carbide used, their manufacturing processes, and the properties that make them indispensable in modern machining.

Understanding Carbide Materials

Carbide, in its simplest form, is a compound of carbon and one or more metallic elements. In the context of cutting tools, the most commonly used carbide is tungsten carbide. This material is created by combining tungsten and carbon under high pressure and heat, resulting in a substance that boasts exceptional hardness, wear resistance, and thermal stability.

While tungsten carbide is the star of the show, other types of carbide materials are also used in the cutting tool industry:

1. Tungsten Carbide (WC): The most widely used carbide in end mills, known for its excellent wear resistance and toughness.

2. Titanium Carbide (TiC): Offers high hardness and is often used as a coating material to enhance tool performance.

3. Tantalum Carbide (TaC): Provides excellent high-temperature strength and is sometimes used in specialized cutting tools.

4. Niobium Carbide (NbC): Known for its high melting point and hardness, it's occasionally used in cutting tool applications.

The Manufacturing Process of Carbide End Mills

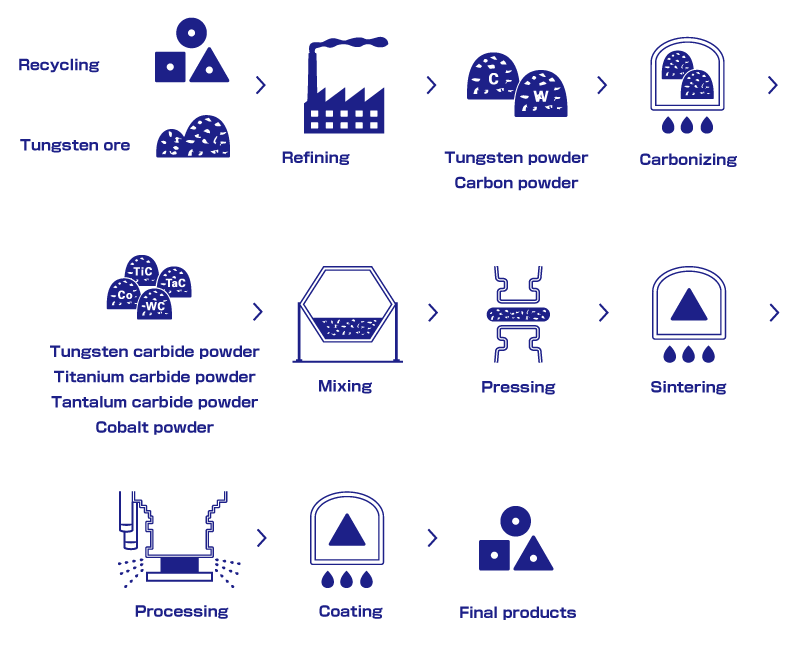

The production of carbide end mills is a complex process that involves several stages:

1. Raw Material Preparation: The process begins with the extraction and refinement of tungsten ore. This ore is processed to create tungsten carbide powder, which forms the base material for the end mills.

2. Powder Mixing: The tungsten carbide powder is mixed with cobalt, which acts as a binder. The ratio of tungsten carbide to cobalt can vary depending on the desired properties of the final product. Typically, the cobalt content ranges from 6% to 30%.

3. Pressing: The mixed powder is then poured into molds and subjected to high pressure. This process, known as pressing, gives the powder a preliminary shape and moderate strength.

4. Sintering: The pressed compacts are placed in a sintering furnace and heated to temperatures near the melting point of cobalt (around 1400°C). This process causes the cobalt to melt and flow between the tungsten carbide particles, binding them together and creating a dense, solid material.

5. Grinding and Shaping: After sintering, the carbide blanks are ground and shaped into the desired end mill geometry using precision grinding machines. This step is crucial in determining the cutting performance of the tool.

6. Coating (Optional): Many carbide end mills receive an additional coating to enhance their performance. Common coating materials include titanium nitride (TiN), titanium aluminum nitride (TiAlN), and diamond-like carbon (DLC).

Properties of Carbide End Mills

The unique combination of materials and manufacturing processes gives carbide end mills several advantageous properties:

1. Hardness: Carbide end mills are extremely hard, typically ranging from 1300 to 1600 on the Vickers hardness scale. This hardness allows them to maintain sharp cutting edges even under demanding conditions.

2. Wear Resistance: The high wear resistance of carbide materials enables end mills to maintain their cutting geometry for extended periods, resulting in longer tool life and consistent performance.

3. Heat Resistance: Carbide end mills can withstand high temperatures generated during machining operations, maintaining their strength and hardness even at elevated temperatures.

4. Toughness: Despite their hardness, carbide end mills also possess a degree of toughness that helps prevent chipping and breakage during interrupted cuts or when machining hard materials.

5. Chemical Stability: Carbide materials are chemically inert, which helps prevent reactions with workpiece materials and coolants, ensuring consistent performance across various applications.

Coatings and Their Impact

To further enhance the performance of carbide end mills, various coatings are applied to the tool surface. These coatings serve multiple purposes:

1. Increased Hardness: Coatings like titanium nitride (TiN) or aluminum titanium nitride (AlTiN) can increase the surface hardness of the tool, improving wear resistance.

2. Reduced Friction: Some coatings, such as diamond-like carbon (DLC), provide a low-friction surface that helps in chip evacuation and reduces heat generation during cutting.

3. Thermal Barrier: Certain coatings act as a thermal barrier, protecting the carbide substrate from excessive heat and extending tool life.

4. Improved Chemical Resistance: Coatings can enhance the tool's resistance to chemical reactions with workpiece materials, particularly in high-temperature cutting conditions.

Selecting the Right Carbide End Mill

Choosing the appropriate carbide end mill for a specific application involves considering several factors:

1. Workpiece Material: Different carbide grades and coatings are optimized for machining specific materials. For example, uncoated carbide end mills with polished flutes are often preferred for machining aluminum and other non-ferrous materials.

2. Cutting Parameters: The intended cutting speed, feed rate, and depth of cut influence the choice of carbide grade and tool geometry.

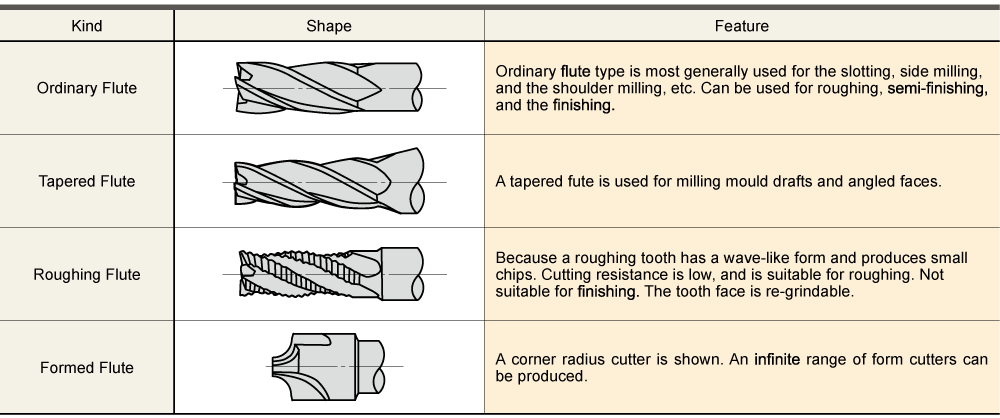

3. Tool Geometry: Various end mill geometries are available, each designed for specific operations such as roughing, finishing, or high-speed machining.

4. Machine Capabilities: The rigidity and power of the machine tool should be considered when selecting an end mill to ensure optimal performance.

5. Cost Considerations: While carbide end mills generally have a higher initial cost compared to high-speed steel tools, their longer life and improved performance often result in lower overall machining costs.

Advancements in Carbide Technology

The field of carbide end mill technology is continuously evolving, with ongoing research and development focused on improving tool performance and longevity. Some recent advancements include:

1. Nano-grain Carbide: By reducing the grain size of tungsten carbide particles to the nanometer scale, manufacturers can create tools with even higher hardness and toughness.

2. Variable Helix and Pitch Designs: Advanced end mill geometries with variable helix angles and pitch spacing help reduce vibration and chatter during machining, improving surface finish and tool life.

3. Hybrid Carbide Grades: Some manufacturers are developing carbide grades that combine the properties of different carbide types to achieve optimal performance in specific applications.

4. Advanced Coating Technologies: New coating materials and deposition techniques are being developed to further enhance tool performance, including multi-layer coatings that combine the benefits of different materials.

5. Additive Manufacturing: While still in its early stages, 3D printing of carbide tools shows promise for creating complex geometries and customized cutting tools.

Conclusion

Carbide end mills represent a pinnacle of cutting tool technology, combining advanced materials science with precision manufacturing processes. The unique properties of carbide materials, particularly tungsten carbide, make these tools indispensable in modern machining operations. From their exceptional hardness and wear resistance to their ability to maintain performance under extreme conditions, carbide end mills continue to push the boundaries of what's possible in metal cutting.

As manufacturing technologies evolve and new materials emerge, the development of carbide end mills will undoubtedly continue, driven by the ever-present need for higher productivity, improved precision, and reduced machining costs. By understanding the types of carbide used in end mills, their manufacturing processes, and the properties that make them so effective, manufacturers and machinists can make informed decisions to optimize their cutting operations and stay at the forefront of manufacturing technology.

Whether you're machining aerospace alloys, medical implants, or everyday consumer products, the humble carbide end mill, with its remarkable material properties and advanced design, will continue to play a crucial role in shaping the world around us, one precise cut at a time.
