Introduction

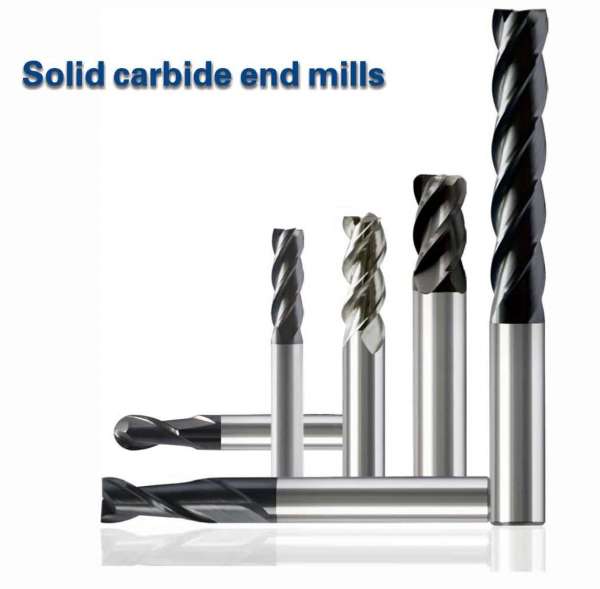

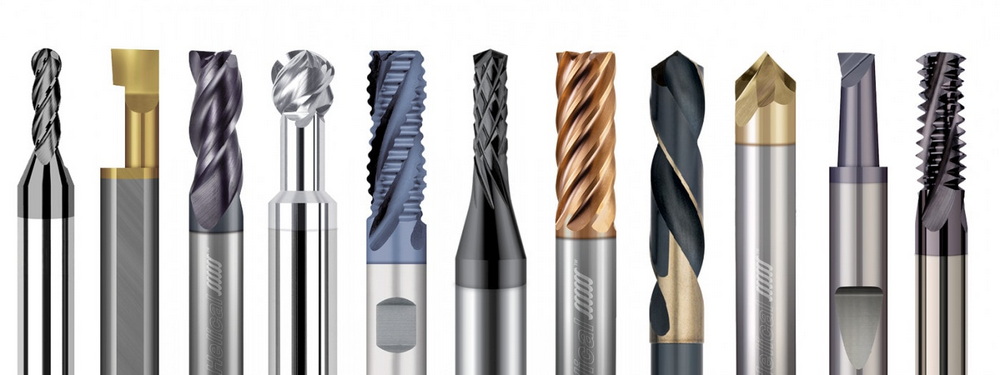

In the world of precision machining and metalworking, carbide end mills have become indispensable tools. These cutting instruments are renowned for their exceptional hardness, wear resistance, and ability to maintain sharp edges even under extreme conditions. But what exactly makes these tools so effective? The answer lies in the type of carbide used in their construction. This article delves deep into the world of carbide end mills, exploring the most commonly used carbide materials, their properties, and why they are preferred in various machining applications.

Understanding Carbide

Before we dive into the specific types of carbide used in end mills, it's essential to understand what carbide is. Carbide is a compound composed of carbon and one or more metallic elements. The most common type of carbide used in cutting tools is tungsten carbide, but there are other varieties as well. These materials are prized for their extreme hardness, which often exceeds that of many steels and other conventional tool materials.

Tungsten Carbide: The Gold Standard

When it comes to carbide end mills, tungsten carbide reigns supreme as the most widely used material. This compound, formed by combining tungsten and carbon atoms, offers an exceptional blend of hardness and toughness that makes it ideal for cutting tools.

Properties of Tungsten Carbide:

1. Extreme Hardness: Tungsten carbide typically ranges from 8.5 to 9.5 on the Mohs scale, making it one of the hardest materials available for tooling.

2. High Wear Resistance: The material's hardness translates to excellent wear resistance, allowing tools to maintain their cutting edge for extended periods.

3. Heat Resistance: Tungsten carbide retains its hardness at high temperatures, which is crucial during high-speed machining operations.

4. Thermal Conductivity: It conducts heat away from the cutting edge more efficiently than high-speed steel, reducing the risk of thermal damage.

Grades of Tungsten Carbide

Not all tungsten carbide is created equal. The material is available in various grades, each optimized for specific applications. The two main factors that determine the grade are:

1. Grain Size: This refers to the size of the tungsten carbide particles. Finer grains generally result in higher hardness but lower toughness, while coarser grains offer more toughness at the expense of some hardness.

2. Cobalt Content: Cobalt is used as a binder in tungsten carbide. Higher cobalt content increases toughness but decreases hardness and wear resistance.

Common grades of tungsten carbide used in end mills include:

◆ Submicron Grade: With extremely fine grain sizes, this grade offers superior wear resistance and is ideal for finishing operations on hard materials.

◆ Fine Grain: Balancing hardness and toughness, fine-grain carbide is versatile and suitable for a wide range of machining tasks.

◆ Medium Grain: Offering increased toughness, this grade is often used for roughing operations or when machining materials that may cause tool chipping.

◆ Coarse Grain: The toughest grade, it's used in applications where tool breakage is a significant concern, such as interrupted cutting or when machining abrasive materials.

Titanium Carbide: The Tough Contender

While tungsten carbide dominates the carbide end mill market, titanium carbide (TiC) has carved out its own niche. This compound offers some unique properties that make it valuable in certain applications.

Properties of Titanium Carbide:

1. High Hardness: TiC is even harder than tungsten carbide, with a Mohs hardness of about 9-9.5.

2. Lower Density: It's lighter than tungsten carbide, which can be advantageous in some high-speed applications.

3. Chemical Stability: TiC is highly resistant to chemical reactions, making it suitable for machining reactive materials.

4. Wear Resistance: Its extreme hardness translates to excellent wear resistance, particularly at high temperatures.

Titanium carbide is often used as a coating on tungsten carbide tools rather than as the primary material. This combination leverages the toughness of tungsten carbide with the superior wear resistance of titanium carbide.

Tantalum Carbide: The Heat Resistant Specialist

Another carbide that finds use in specialized end mills is tantalum carbide (TaC). While not as common as tungsten or titanium carbide, it offers some unique properties that make it valuable in certain high-temperature applications.

Properties of Tantalum Carbide:

1. Extreme Heat Resistance: TaC has one of the highest melting points of any known material, making it exceptionally resistant to heat.

2. Chemical Stability: It's highly resistant to chemical attack, even at elevated temperatures.

3. Hardness: While not as hard as tungsten or titanium carbide, it still offers significant hardness, especially at high temperatures.

Tantalum carbide is often used in combination with other carbides to enhance the high-temperature performance of cutting tools. It's particularly valuable in applications involving the machining of heat-resistant superalloys.

Cemented Carbides: The Best of Both Worlds

While pure carbides offer exceptional hardness, they can be brittle. To overcome this limitation, many end mills are made from cemented carbides. These are composite materials where carbide particles (usually tungsten carbide) are bound together with a tough metallic binder, most commonly cobalt.

The use of cemented carbides allows for a customizable balance between hardness and toughness. By adjusting the ratio of carbide to binder and the grain size of the carbide particles, manufacturers can create tools optimized for specific applications.

Properties of Cemented Carbides:

1. Adjustable Hardness and Toughness: The properties can be fine-tuned by altering the composition.

2. Improved Impact Resistance: The metallic binder provides better shock absorption than pure carbides.

3. Easier Manufacturing: Cemented carbides can be formed into complex shapes more easily than pure carbides.

Cemented carbides are the most common material used in carbide end mills, offering a balance of performance characteristics that pure carbides can't match.

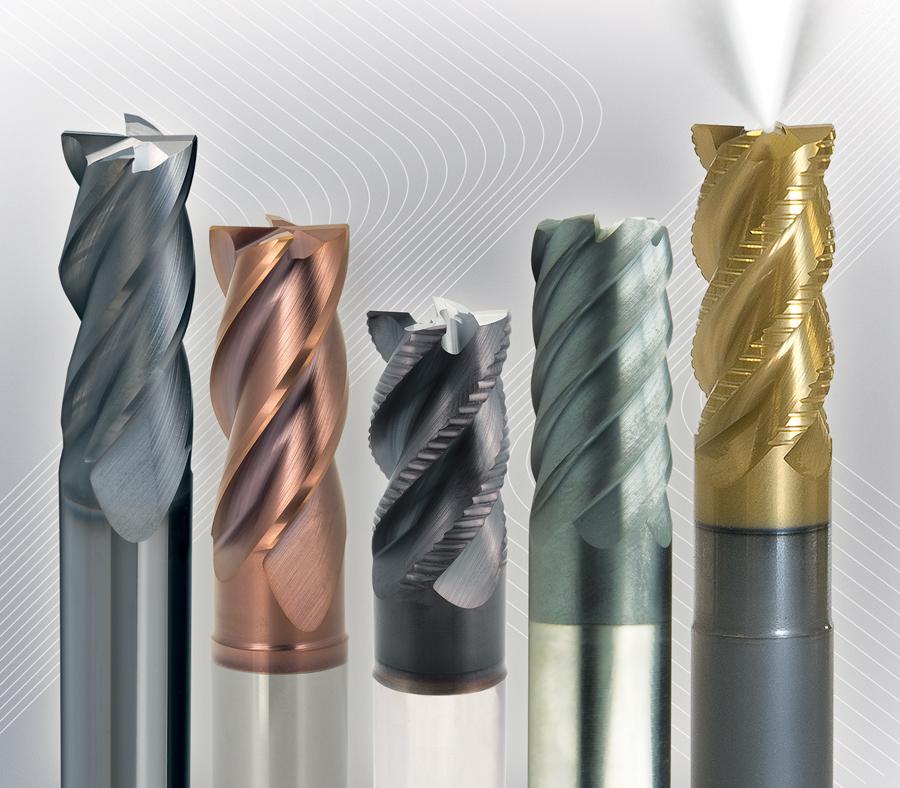

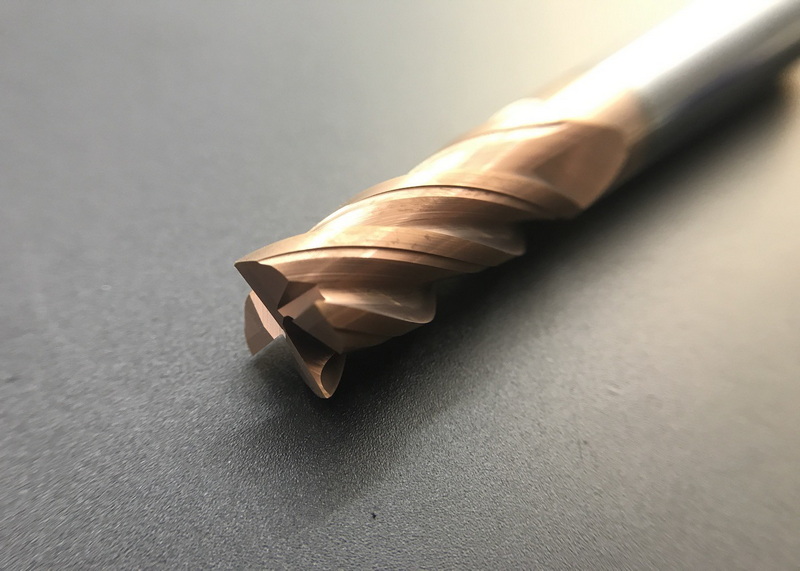

Coatings: Enhancing Carbide Performance

While the base material of an end mill is crucial, many modern carbide end mills also feature advanced coatings to further enhance their performance. These coatings can significantly improve wear resistance, reduce friction, and allow for higher cutting speeds.

Common coatings used on carbide end mills include:

1. Titanium Nitride (TiN): A gold-colored coating that increases surface hardness and wear resistance.

2. Titanium Carbonitride (TiCN): Offers higher hardness and toughness than TiN, with good oxidation resistance.

3. Titanium Aluminum Nitride (TiAlN): Provides excellent heat resistance, allowing for high-speed dry machining.

4. Diamond-Like Carbon (DLC): Offers extremely low friction and high hardness, ideal for machining abrasive materials.

These coatings are often applied using physical vapor deposition (PVD) or chemical vapor deposition (CVD) processes, resulting in a thin but extremely hard layer on the surface of the carbide tool.

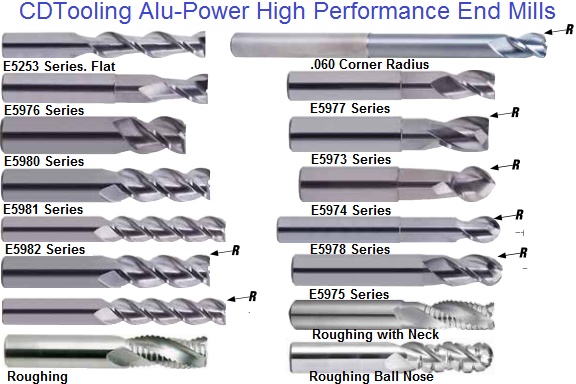

Choosing the Right Carbide for the Job

Selecting the appropriate carbide type and grade for an end mill depends on various factors:

1. Workpiece Material: Harder workpiece materials generally require harder carbide grades with higher wear resistance.

2. Machining Operation: Roughing operations might benefit from tougher grades, while finishing operations often require harder grades for better surface finish.

3. Cutting Conditions: High-speed machining or dry cutting may require grades with better heat resistance.

4. Tool Life Expectations: Harder grades generally offer longer tool life but at a higher initial cost.

5. Machine Stability: Less rigid setups may benefit from tougher carbide grades to resist chipping and breakage.

Innovations in Carbide Technology

The world of carbide end mills is constantly evolving, with ongoing research and development leading to new and improved materials. Some recent innovations include:

1. Nano-grain Carbides: These ultra-fine-grained carbides offer exceptional hardness and wear resistance while maintaining reasonable toughness.

2. Functionally Graded Carbides: These materials have a composition that varies throughout the tool, allowing for a tough core with a hard outer layer.

3. Binderless Carbides: By eliminating the metallic binder, these carbides offer extreme hardness and wear resistance, though they're typically more brittle.

4. Multi-layer and Nanocomposite Coatings: Advanced coating technologies allow for multiple layers of different materials or nanostructured coatings that offer unprecedented combinations of hardness, toughness, and wear resistance.

Conclusion

In the world of carbide end mills, tungsten carbide remains the most commonly used material, prized for its excellent balance of hardness, toughness, and wear resistance. However, the specific grade of tungsten carbide, as well as the use of other carbides like titanium carbide and tantalum carbide, can vary depending on the application.

Cemented carbides, which combine the hardness of carbide particles with the toughness of a metallic binder, offer a customizable solution that dominates the market. These materials, often enhanced with advanced coatings, provide the performance characteristics needed for a wide range of machining operations.

As manufacturing technologies continue to advance, pushing the limits of speed, precision, and efficiency, the development of carbide materials for end mills will undoubtedly keep pace. From nano-grained carbides to advanced multi-layer coatings, the future of carbide end mills promises even greater performance and longevity.

Understanding the types of carbide used in end mills, their properties, and their suitable applications is crucial for anyone involved in machining operations. By choosing the right carbide for the job, manufacturers can optimize their processes, improve product quality, and ultimately, enhance their bottom line. As we look to the future, the ongoing evolution of carbide technology will continue to shape the landscape of precision machining, enabling new possibilities and pushing the boundaries of what's achievable in metalworking.
