In the world of manufacturing and metalworking, precision and efficiency are paramount. Among the various tools that have revolutionized these industries, the carbide end mill stands out as a true game-changer. This versatile cutting tool has become an indispensable component in modern machining processes, enabling manufacturers to create complex shapes and intricate designs with unparalleled accuracy. In this comprehensive exploration, we will delve into the world of carbide end mills, uncovering their definition, uses, types, materials, and manufacturing processes. Whether you're a seasoned machinist or a curious novice, this article will provide you with a deep understanding of these remarkable tools that are shaping the future of manufacturing.

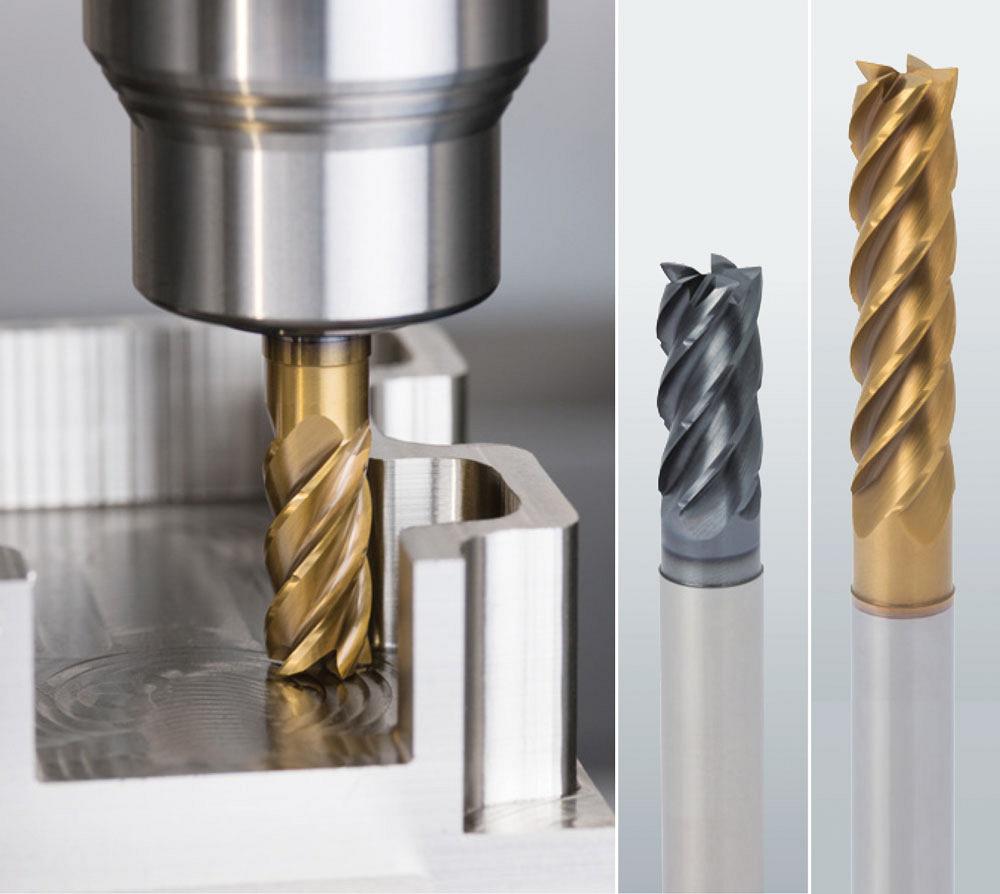

At its core, a carbide end mill is a type of rotary cutting tool used in milling applications. It is designed to remove material from a workpiece by combining rotational motion with linear movement. What sets carbide end mills apart from their counterparts is the material from which they are crafted: tungsten carbide. This exceptionally hard and durable compound allows carbide end mills to maintain their sharp cutting edges even when subjected to high temperatures and abrasive materials.
Carbide end mills are cylindrical in shape, with sharp cutting edges along their sides and often on their flat or rounded ends. This design allows them to cut in multiple directions, making them incredibly versatile for a wide range of machining tasks. From creating precise slots and channels to carving out complex three-dimensional shapes, carbide end mills are the go-to tools for machinists who demand both precision and durability.
To truly appreciate the capabilities of carbide end mills, it's essential to understand their anatomy. Let's break down the key components:
1. Shank: This is the part of the end mill that is held by the machine's tool holder. It's typically cylindrical and must be precisely sized to ensure a secure fit.

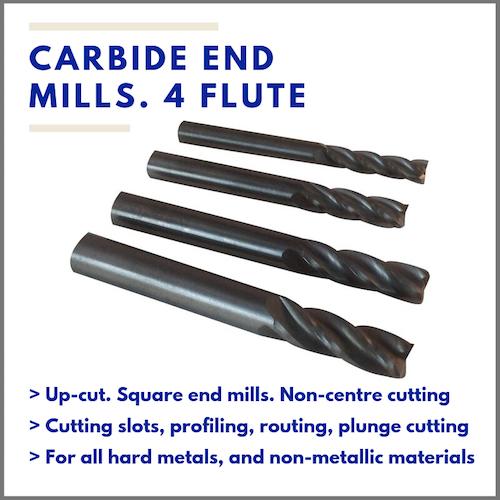

2. Flutes: These are the spiral grooves that run along the length of the cutting portion of the end mill. They serve to evacuate chips and provide cutting edges.
3. Cutting Edges: Located along the flutes, these are the sharp edges that actually perform the cutting action.
4. Helix Angle: This is the angle at which the flutes twist around the body of the end mill. It affects chip evacuation and cutting performance.
5. End Cutting Edge: The cutting edges on the end of the tool, which allow for plunging and face milling operations.
6. Diameter: The overall width of the cutting portion of the end mill.
7. Length of Cut: The portion of the end mill that contains the flutes and can engage in cutting.
8. Overall Length: The total length of the end mill from tip to the end of the shank.
Understanding these components is crucial for selecting the right carbide end mill for specific machining tasks and optimizing its performance.

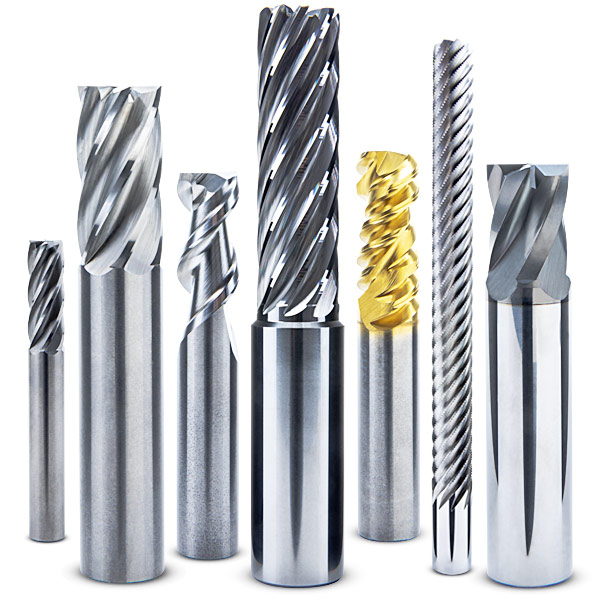

The world of carbide end mills is diverse, with various types designed to excel in different applications. Here are some of the most common types:
1. Flat End Mills: These have a flat end and are ideal for creating square shoulders and flat-bottomed cavities. They are versatile and widely used in general milling operations.
2. Ball Nose End Mills: Featuring a hemispherical end, these are perfect for 3D contouring, especially in the production of molds and dies.
3. Corner Radius End Mills: These combine features of flat and ball nose end mills, with a small radius at the corner. They're excellent for creating fillets and improving tool life in heavy cutting operations.
4. Tapered End Mills: With a conical shape, these are used for creating angled surfaces and tapered holes.
5. Roughing End Mills: Designed with serrated flutes, these tools quickly remove large amounts of material in the initial stages of machining.
6. Finishing End Mills: These have a higher number of flutes and are used to achieve smooth surface finishes in the final stages of machining.
Each type of carbide end mill has its unique characteristics and is chosen based on the specific requirements of the machining task at hand. The selection process involves considering factors such as the material being machined, the desired finish, and the complexity of the part being produced.
The exceptional performance of carbide end mills is largely attributed to their material composition and manufacturing process. Let's delve into these aspects:
Material Composition: Carbide end mills are primarily made from tungsten carbide, a compound of tungsten and carbon. This material is known for its extreme hardness, wear resistance, and ability to maintain a sharp cutting edge even at high temperatures. The specific grade of carbide used can vary, with cobalt often added as a binder to improve toughness. The balance between hardness and toughness is crucial, as it affects the tool's performance and longevity in different machining conditions.
Manufacturing Process: The production of carbide end mills is a complex and precise process that involves several steps:
1. Powder Preparation: The process begins with the creation of a fine powder mixture of tungsten carbide and cobalt.
2. Pressing: This powder is then compressed into a near-net shape of the end mill using high-pressure molds.
3. Sintering: The compressed form is heated to temperatures near the melting point of cobalt in a controlled atmosphere. This process, known as sintering, causes the cobalt to melt and act as a binder, fusing the carbide particles together.
4. Grinding: After cooling, the sintered blank is ground to its final dimensions. This step is crucial for achieving the precise geometry required for effective cutting.
5. Flute Grinding: The flutes are carefully ground into the carbide blank, creating the cutting edges and chip evacuation channels.
6. Edge Preparation: The cutting edges are honed to remove any micro-fractures and to achieve the optimal edge geometry for cutting performance.
7. Coating: Many carbide end mills receive a thin coating of materials such as titanium nitride (TiN) or aluminum titanium nitride (AlTiN) to enhance hardness, reduce friction, and improve wear resistance.
This meticulous manufacturing process ensures that each carbide end mill meets the exacting standards required for high-performance machining operations.
The versatility and durability of carbide end mills make them indispensable in a wide range of industries and applications. Here are some key areas where these tools excel:
1. Aerospace Industry: Carbide end mills are crucial in the production of aircraft components, where precision and the ability to machine tough materials like titanium alloys are essential.
2. Automotive Manufacturing: From engine components to body panels, carbide end mills are used extensively in the automotive industry for both prototyping and production.
3. Medical Device Manufacturing: The production of medical implants, prosthetics, and surgical instruments relies heavily on the precision offered by carbide end mills.
4. Mold and Die Making: The ability to create complex 3D shapes makes carbide end mills ideal for producing molds and dies used in various manufacturing processes.
5. Electronics Industry: Carbide end mills are used to machine precise components for electronic devices and circuit boards.
6. General Machining: In machine shops and fabrication facilities, carbide end mills are used for a wide variety of tasks, from simple slot cutting to complex profiling operations.
The popularity of carbide end mills in modern machining can be attributed to several key advantages:
1. Superior Hardness: Tungsten carbide is significantly harder than high-speed steel, allowing carbide end mills to maintain their sharp cutting edges for longer periods.
2. High Temperature Resistance: Carbide end mills can withstand higher cutting temperatures without losing their hardness, enabling higher cutting speeds and increased productivity.
3. Wear Resistance: The durability of carbide results in less frequent tool changes and more consistent part quality over time.
4. Precision: The rigidity of carbide allows for the production of end mills with very tight tolerances, resulting in highly accurate machining.
5. Versatility: Carbide end mills can effectively machine a wide range of materials, from soft aluminum to hardened steels and exotic alloys.
6. Improved Surface Finish: The ability to maintain a sharp cutting edge results in better surface finishes, often reducing or eliminating the need for secondary finishing operations.
7. Cost-Effectiveness: While initially more expensive than high-speed steel alternatives, the longer life and improved performance of carbide end mills often result in lower overall machining costs.
Choosing the appropriate carbide end mill for a specific machining task is crucial for achieving optimal results. Here are some factors to consider:
1. Workpiece Material: Different grades of carbide and coatings are better suited for specific materials. For example, a carbide grade with higher cobalt content might be preferred for tougher materials.
2. Operation Type: The type of machining operation (e.g., slotting, profiling, or 3D contouring) will influence the choice of end mill geometry.
3. Machine Capabilities: The rigidity and power of the milling machine should be considered when selecting an end mill, as it affects the cutting parameters that can be used.
4. Surface Finish Requirements: The number of flutes and the helix angle can impact the surface finish. More flutes generally produce a better finish but may require slower feed rates.
5. Tool Life Expectations: Consider the balance between performance and tool life. Sometimes, a slightly less aggressive tool might be preferred for longer production runs.
6. Coolant Use: Some end mill designs are optimized for use with specific cooling methods, such as through-tool coolant delivery.
7. Cost Considerations: While high-performance carbide end mills can be expensive, their improved efficiency and longer life often justify the investment.
To maximize the performance and lifespan of carbide end mills, consider the following best practices:
1. Proper Tool Holding: Ensure that the end mill is securely held in a high-quality tool holder to minimize runout and vibration.
2. Optimal Cutting Parameters: Use recommended cutting speeds, feed rates, and depths of cut for the specific carbide grade and workpiece material.
3. Consistent Coolant Supply: Maintain a steady supply of coolant to manage heat generation and chip evacuation.
4. Climb Milling: When possible, use climb milling (where the cutter rotation is in the same direction as the feed) for better chip evacuation and surface finish.
5. Avoid Dwelling: Minimize time spent with the tool engaged without feeding, as this can lead to premature wear or chipping.
6. Proper Storage: Store carbide end mills carefully to prevent damage to the cutting edges when not in use.
7. Regular Inspection: Periodically inspect the cutting edges for signs of wear or damage, and replace or resharpen as necessary.
8. Gradual Engagement: When possible, use helical interpolation or ramping techniques to gradually engage the full width of the tool, reducing shock loading.
As manufacturing technology continues to advance, so too does the development of carbide end mills. Some emerging trends include:
1. Advanced Coatings: New coating materials and application techniques are being developed to further enhance the performance and longevity of carbide end mills.
2. Optimized Geometries: Computer-aided design and simulation are enabling the creation of increasingly complex and application-specific end mill geometries.
3. Additive Manufacturing: 3D printing technologies are being explored for the production of carbide end mills with internal cooling channels and other features difficult to achieve with traditional manufacturing methods.
4. Smart Tools: The integration of sensors and monitoring systems into cutting tools, including end mills, is paving the way for real-time performance optimization and predictive maintenance.
5. Sustainability: There is a growing focus on developing more sustainable manufacturing processes, including the recycling and reuse of carbide materials from worn tools.
Carbide end mills have revolutionized the world of machining, offering unparalleled performance in terms of precision, durability, and versatility. From their composition and manufacturing process to their diverse applications across industries, these cutting tools continue to push the boundaries of what's possible in modern manufacturing.
As we've explored in this comprehensive overview, the success of carbide end mills lies not just in their material properties, but in the careful consideration of their design, selection, and use. By understanding the intricacies of these remarkable tools, machinists and engineers can harness their full potential to create products with ever-increasing complexity and quality.
As technology continues to evolve, carbide end mills will undoubtedly play a crucial role in shaping the future of manufacturing. Whether it's through advanced coatings, optimized geometries, or integration with smart manufacturing systems, these tools will continue to be at the cutting edge of precision machining, driving innovation and efficiency across industries.
In the hands of skilled professionals and integrated into advanced manufacturing processes, carbide end mills will remain indispensable tools, enabling the creation of the complex components and products that define our modern world. As we look to the future, the ongoing development and refinement of carbide end mill technology promise to unlock new possibilities in machining, pushing the boundaries of what can be achieved in the realm of precision manufacturing.
