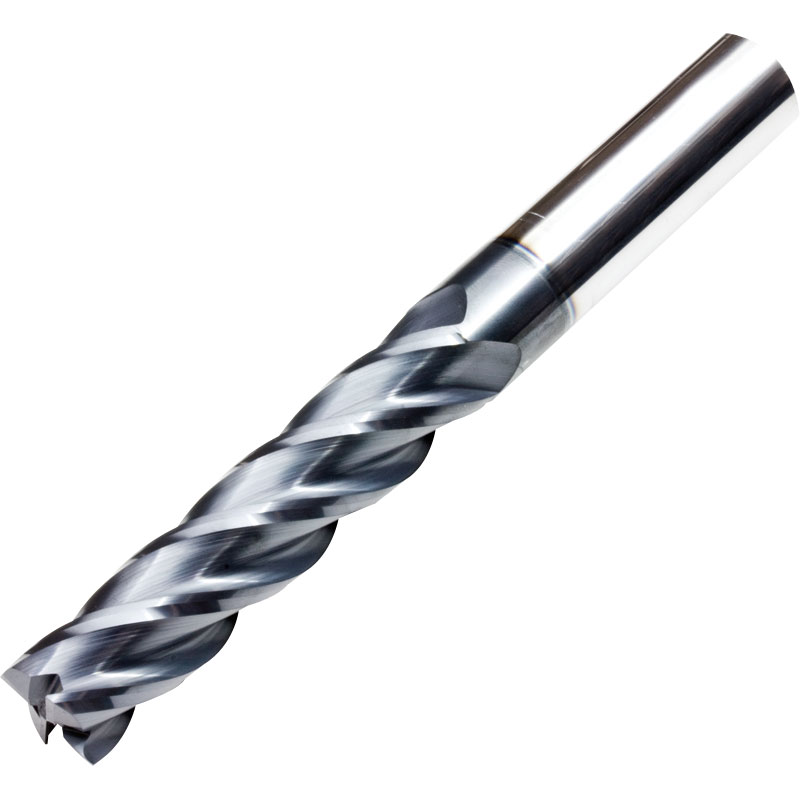

Carbide end mills are essential tools in the world of machining, known for their exceptional durability, precision, and versatility. These cutting tools have revolutionized the manufacturing industry, enabling machinists to work with a wide range of materials with unprecedented efficiency and accuracy. At the heart of these remarkable tools lies a crucial component: carbide. But what exactly is carbide, and what type of carbide is used in carbide end mills? Let's delve into this fascinating topic and explore the world of carbide end mills in detail.
Before we dive into the specific types of carbide used in end mills, it's essential to understand what carbide is. Carbide is a compound composed of carbon and one or more metallic elements. In the context of cutting tools, the term "carbide" typically refers to cemented carbide, also known as tungsten carbide or simply "carbide."
Cemented carbide is a composite material made by combining tungsten carbide (WC) particles with a metallic binder, usually cobalt (Co). The tungsten carbide particles provide extreme hardness and wear resistance, while the cobalt binder adds toughness and impact resistance. This combination results in a material that offers an excellent balance of hardness and toughness, making it ideal for cutting tools like end mills.
The type of carbide used in end mills can vary depending on the specific application and desired performance characteristics. Here are the main types of carbide commonly used in the production of carbide end mills:
Submicron grade carbide is characterized by its extremely fine grain structure, with tungsten carbide particles smaller than one micron in size. This type of carbide offers exceptional hardness and wear resistance, making it ideal for high-speed machining applications and working with abrasive materials. End mills made from submicron grade carbide can maintain sharp cutting edges for extended periods, resulting in improved surface finishes and longer tool life.
Micrograin carbide features slightly larger tungsten carbide particles compared to submicron grade, typically ranging from 1 to 3 microns in size. This grade offers a good balance between hardness and toughness, making it suitable for a wide range of machining applications. Micrograin carbide end mills are versatile tools that can handle various materials and cutting conditions.
Fine grain carbide has tungsten carbide particles ranging from 3 to 5 microns in size. This grade provides increased toughness compared to submicron and micrograin carbides, making it suitable for applications that require greater impact resistance. Fine grain carbide end mills are often used in roughing operations or when machining materials that tend to cause tool chipping.
Medium grain carbide features tungsten carbide particles between 5 and 7 microns in size. This grade offers even higher toughness than fine grain carbide, making it suitable for heavy-duty machining operations and applications where tool breakage is a concern. Medium grain carbide end mills are often used in challenging machining conditions or when working with difficult-to-machine materials.
Coarse grain carbide has the largest tungsten carbide particles, typically ranging from 7 to 10 microns in size. This grade provides the highest level of toughness among carbide grades, making it ideal for applications that require maximum impact resistance. Coarse grain carbide end mills are often used in severe machining conditions or when working with extremely hard or abrasive materials.
The choice of carbide grade for end mills depends on various factors, including:
1. Workpiece Material: The hardness, abrasiveness, and machinability of the workpiece material play a crucial role in determining the appropriate carbide grade. Harder materials may require a finer grain carbide for increased wear resistance, while tougher materials might benefit from a coarser grain carbide for improved impact resistance.
2. Cutting Conditions: The cutting speed, feed rate, and depth of cut influence the selection of carbide grade. High-speed machining operations often benefit from finer grain carbides, while heavy-duty cutting may require tougher, coarser grain carbides.
3. Tool Geometry: The design of the end mill, including the number of flutes, helix angle, and cutting edge preparation, can affect the choice of carbide grade. Some geometries may require a specific carbide grade to achieve optimal performance.
4. Surface Finish Requirements: When high-quality surface finishes are required, finer grain carbides are often preferred due to their ability to maintain sharp cutting edges for longer periods.
5. Tool Life Expectations: The desired tool life and replacement frequency can influence the selection of carbide grade. Finer grain carbides generally offer longer tool life but may be more expensive, while coarser grain carbides may be more cost-effective for certain applications.
In addition to the grain size, the composition of the carbide and the amount of binder material used also play crucial roles in determining the performance characteristics of carbide end mills. The most common binder material used in cemented carbide is cobalt, but other materials such as nickel or iron may be used in specific applications.
The amount of binder material, typically expressed as a percentage by weight, affects the properties of the carbide. Generally, a higher binder content results in increased toughness but decreased hardness and wear resistance. Conversely, a lower binder content leads to higher hardness and wear resistance but reduced toughness.
For carbide end mills, the binder content usually ranges from 6% to 12%, depending on the specific grade and intended application. End mills designed for high-speed machining or working with abrasive materials may have a lower binder content to maximize hardness and wear resistance. In contrast, end mills intended for heavy-duty cutting or machining tough materials may have a higher binder content to improve impact resistance and reduce the risk of tool breakage.
While the type of carbide used in end mills is crucial for their performance, many carbide end mills also feature specialized coatings to further enhance their capabilities. These coatings can significantly improve wear resistance, reduce friction, and extend tool life. Some common coatings used on carbide end mills include:
1. Titanium Nitride (TiN): This golden-colored coating provides improved wear resistance and lubricity, making it suitable for a wide range of materials.
2. Titanium Carbonitride (TiCN): Offering higher hardness than TiN, this coating is excellent for machining abrasive materials and high-speed cutting applications.
3. Titanium Aluminum Nitride (TiAlN): Known for its high heat resistance, TiAlN is ideal for high-speed and dry machining operations.
4. Aluminum Titanium Nitride (AlTiN): Similar to TiAlN but with a higher aluminum content, this coating offers excellent heat resistance and is suitable for machining hard materials.
5. Diamond-Like Carbon (DLC): This coating provides exceptional hardness and low friction, making it ideal for machining non-ferrous materials and composites.
The choice of coating depends on the specific application, workpiece material, and desired performance characteristics. Some end mills may even feature multiple layers of different coatings to combine the benefits of various coating materials.
The field of carbide technology is continuously evolving, with researchers and manufacturers constantly working to develop new grades and compositions to meet the ever-increasing demands of modern machining. Some recent advancements in carbide technology for end mills include:
1. Nano-grain Carbides: These ultra-fine grain carbides offer even higher levels of hardness and wear resistance than traditional submicron grades, pushing the boundaries of cutting tool performance.
2. Gradient Carbides: By varying the carbide composition and grain size throughout the tool, manufacturers can create end mills with optimized properties in different regions, such as a tough core and a wear-resistant surface.
3. Binderless Carbides: These innovative carbides eliminate the need for a metallic binder, resulting in extremely hard and wear-resistant tools suitable for specialized applications.
4. Alternative Binder Materials: Researchers are exploring the use of alternative binder materials to cobalt, such as nickel-based alloys or ceramic binders, to create carbides with unique properties and performance characteristics.
5. Hybrid Carbides: By combining different types of carbide particles or incorporating other hard materials like cubic boron nitride (CBN), manufacturers can create end mills with enhanced performance in specific applications.
Choosing the appropriate carbide end mill for a specific application requires careful consideration of various factors, including the workpiece material, cutting conditions, and desired outcomes. Here are some guidelines to help in the selection process:
1. For general-purpose machining of a wide range of materials, micrograin carbide end mills with a moderate binder content are often a good choice.
2. When working with hard or abrasive materials, consider submicron or fine-grain carbide end mills with lower binder content and appropriate coatings for increased wear resistance.
3. For heavy-duty cutting or machining tough materials prone to causing tool breakage, opt for medium or coarse-grain carbide end mills with higher binder content to improve impact resistance.
4. High-speed machining applications often benefit from submicron or micrograin carbide end mills with specialized coatings designed for heat resistance.
5. When high-quality surface finishes are required, choose end mills made from finer grain carbides with sharp cutting edges and appropriate coatings to maintain edge quality.
6. Consider the overall cost-effectiveness of the tool, balancing initial cost with expected tool life and performance in your specific application.
The type of carbide used in carbide end mills plays a crucial role in determining their performance, durability, and suitability for various machining applications. From submicron grades offering exceptional hardness and wear resistance to coarse-grain carbides providing maximum toughness, the range of available carbide types allows manufacturers to create end mills tailored to specific needs.
As machining technology continues to advance, the development of new carbide grades, compositions, and coatings will further expand the capabilities of carbide end mills. By understanding the characteristics of different carbide types and considering factors such as workpiece material, cutting conditions, and desired outcomes, machinists can select the most appropriate carbide end mills for their applications, ultimately improving productivity, quality, and cost-effectiveness in their machining operations.
Whether you're working with common materials like aluminum and steel or tackling challenging materials such as titanium and high-temperature alloys, there's a carbide end mill designed to meet your specific needs. By leveraging the right combination of carbide grade, tool geometry, and coating technology, you can unlock the full potential of your machining processes and achieve outstanding results in your manufacturing endeavors.
