1. Adopt carburizing quenching process, high surface hardness, high wear resistance and fatigue strength, keep the heart with low-carbon quenching strong toughness, so that the shank can withstand impact loads!
2. Adopt high quality spring steel elastic design, high elasticity, high clamping force, not easy to deformation after repeated use.

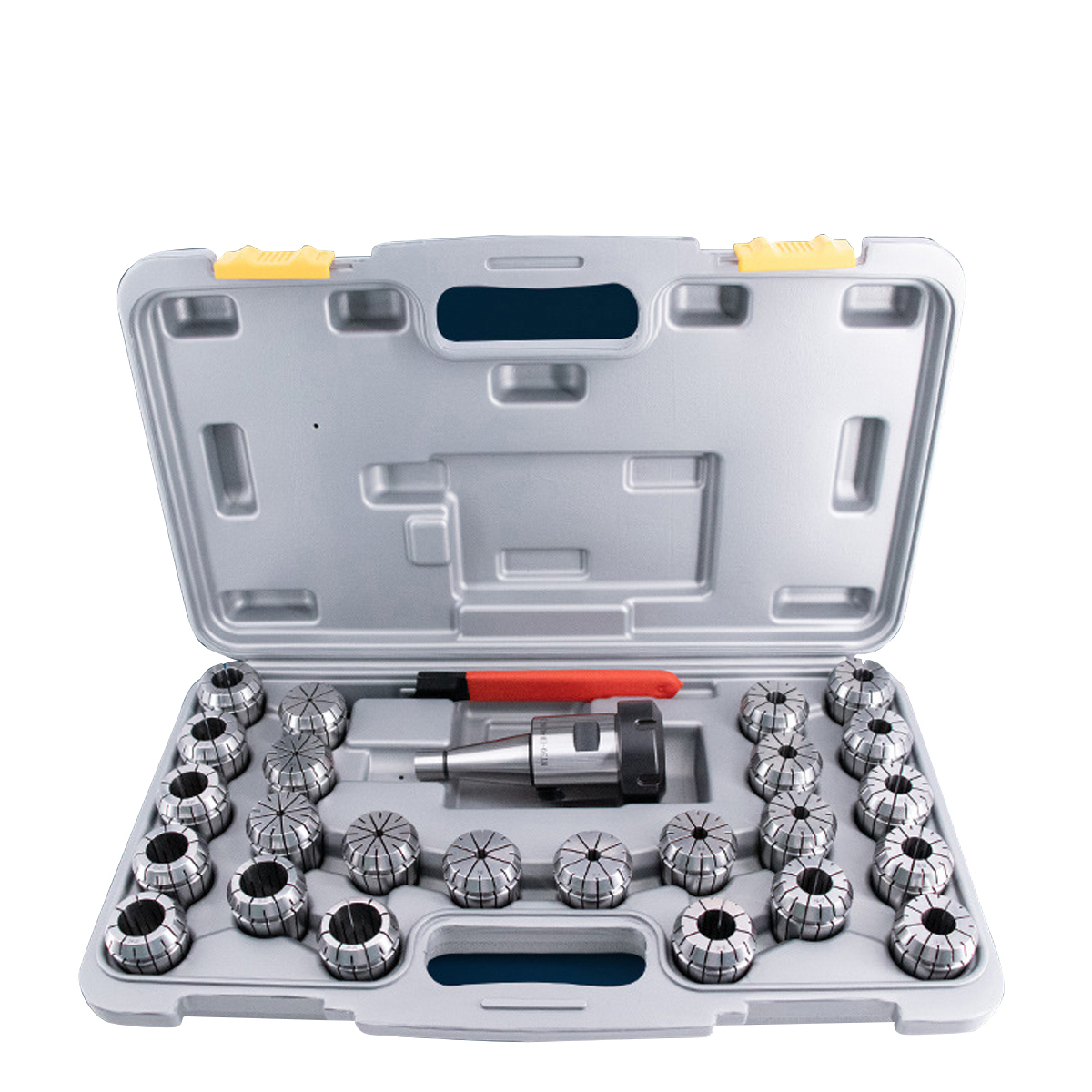

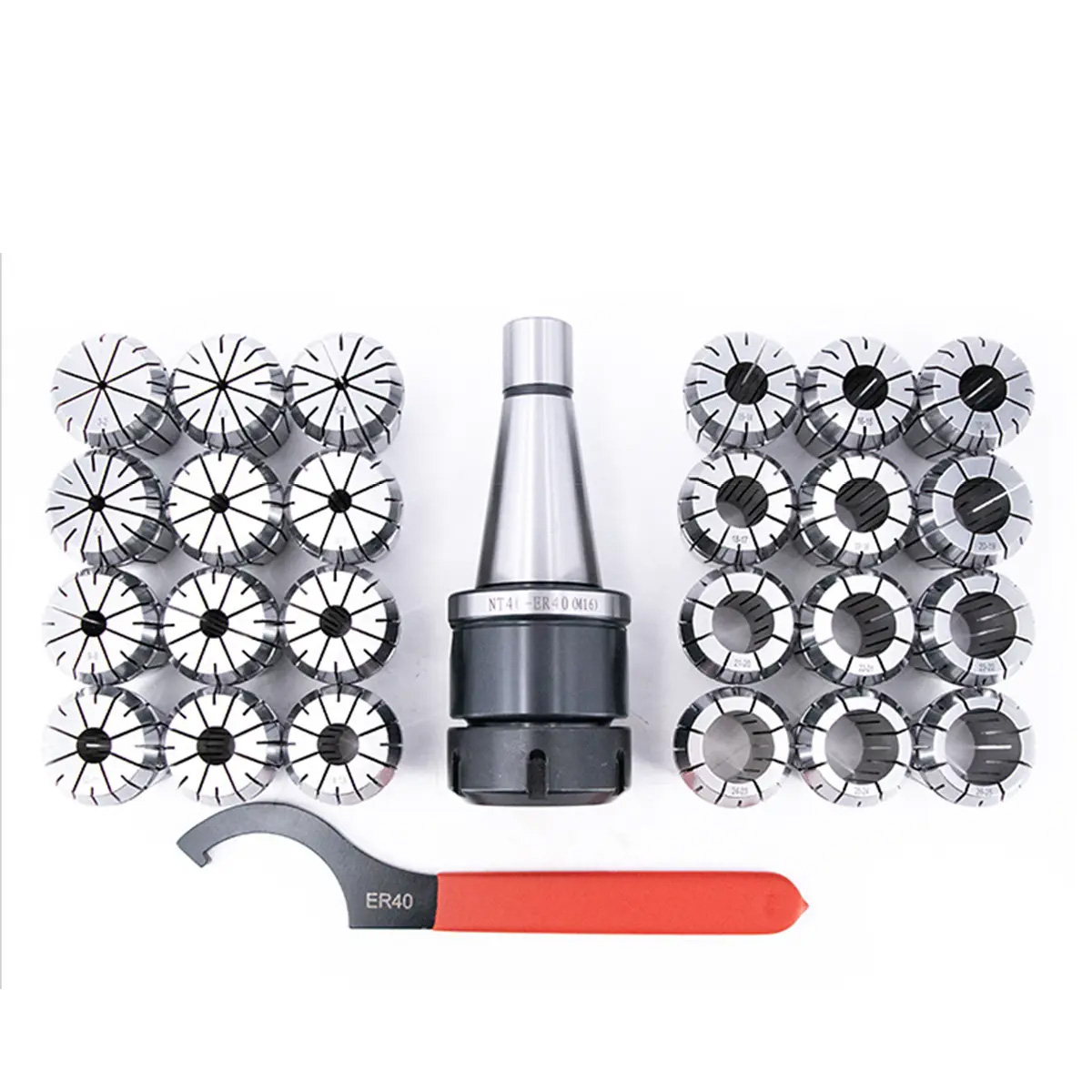

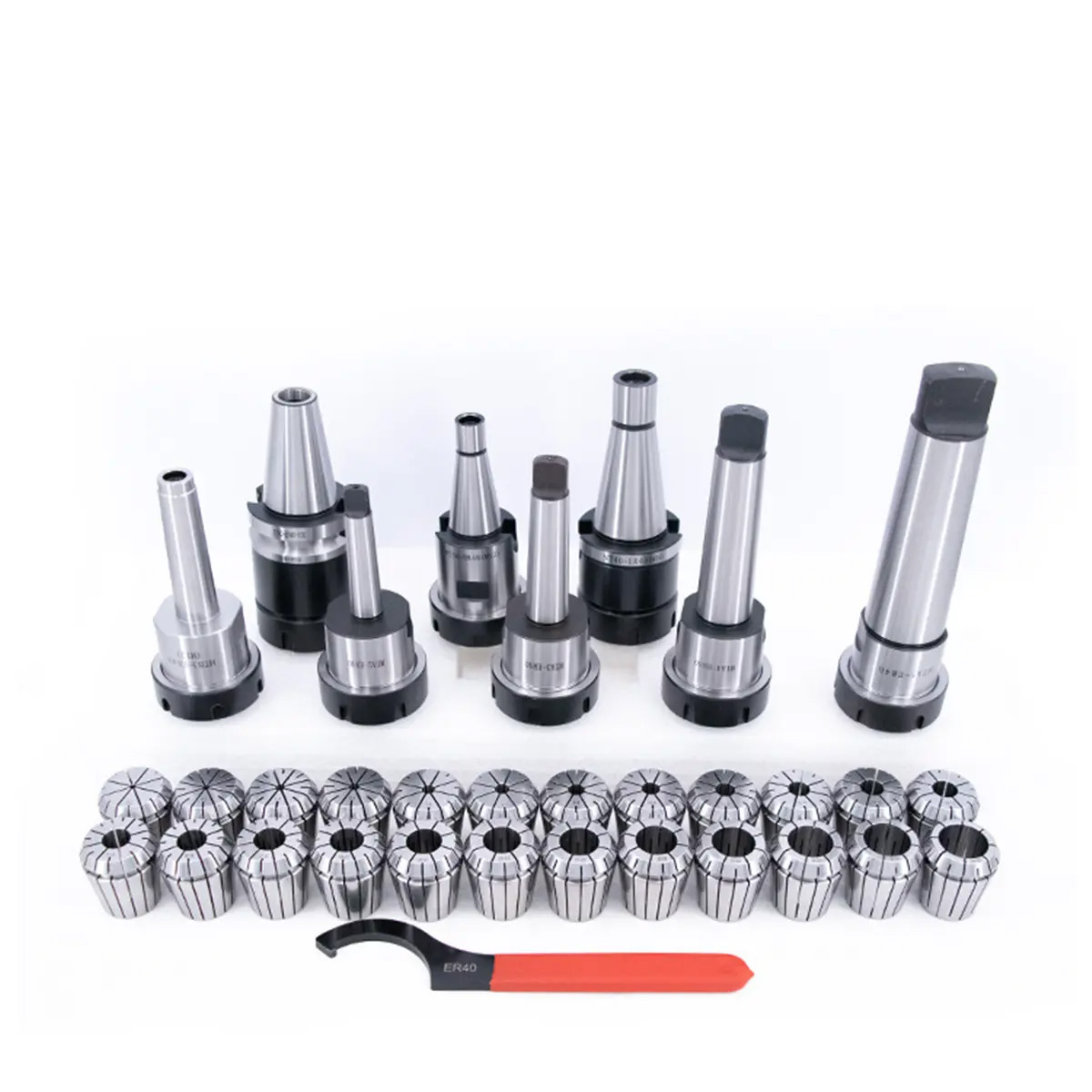

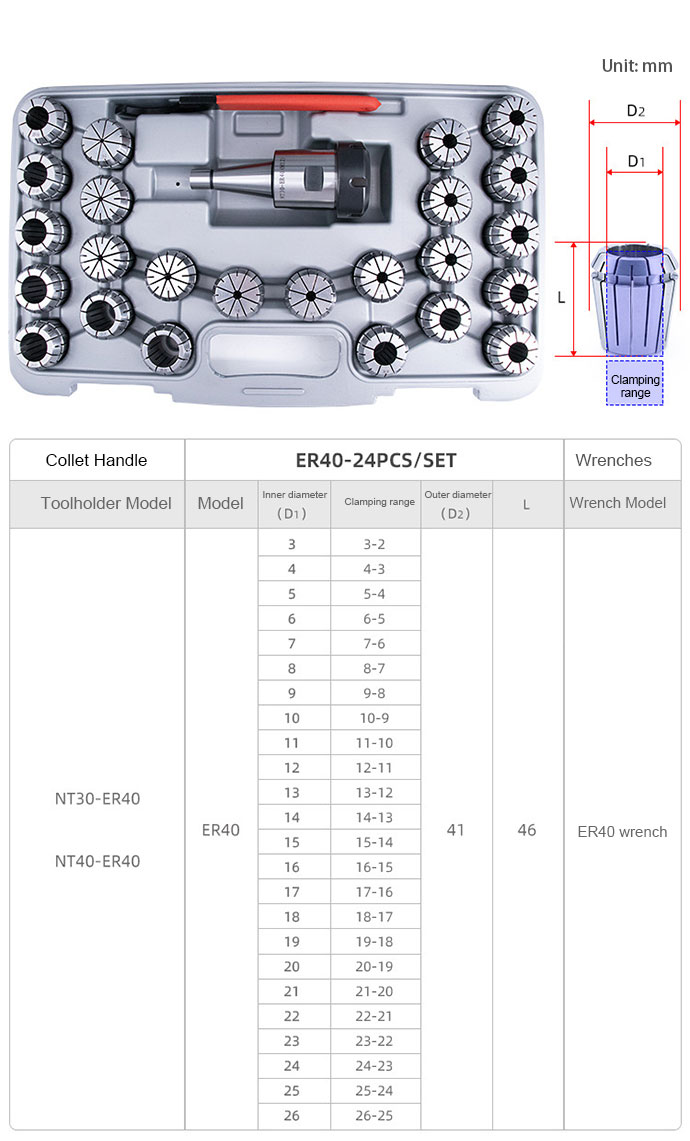

3. 26-piece set contains 1 NT-ER40 toolholder + 24 specifications of ER40 collet + 1 ER40 wrench, which can meet the clamping of many specifications of drills, milling cutters, more knives and other tools, more convenient to use and more cost-effective.
| Product Name | |
| Brand | MSK |
| Origin | Guangdong |
| MOQ | 5pcs per size |
| Spot goods | yes |
| Material | 65Mn |
| Type | Milling Tools |
| Structure type | Integral |
| Coating | Uncoated |
| Applicable machine tools | Milling machine |
1. Put the groove of the collet into the position of the eccentric circle of the nut, and push the collet in according to the direction indicated by the arrow until you hear a "click, which means the collet is in place;
2. Then install the spring collet on the tool and make sure it is in place.
3. Install the nut on the tool handle and lock it with a wrench (it is recommended to use a torque wrench to tighten the nut)
When disassembling, first unscrew the nut from the handle, pull out the tool, push in from the front of the collet, and press down against the bottom of the eccentric circle at the same time. Push the chuck obliquely until the chuck and the nut are separated.
Note: When disassembling, if you can't press down or it's very difficult, you can try pressing down in other directions." Never use brute force.
To facilitate the installation and disassembly of the collet, the eccentric circle slot of the nut is eccentrically designed for the inner and outer circles, so that the upper distance is greater than the lower distance. When installing and dismounting, it must be installed from the position with the smallest distance below. and disassembly. Do not use brute force or violence to install and remove collets during operation, so as to avoid unnecessary losses. Be sure to use cleverness" to install and remove collets.
