The Cutting Edge: Exploring the Benefits of Carbide End Mills

Unlocking the Secrets of Carbide End Mills: Unleashing Unprecedented Precision and Efficiency in the World of Machining!

Understanding Carbide End Mills

Before we jump into the selection process, it's crucial to understand what carbide end mills are and how they are manufactured. Carbide end mills are cutting tools made from carbide, a hard and durable material formed by combining tungsten or titanium carbide particles with a binder material like cobalt. This unique composition gives carbide end mills exceptional hardness and wear resistance.

Start Now

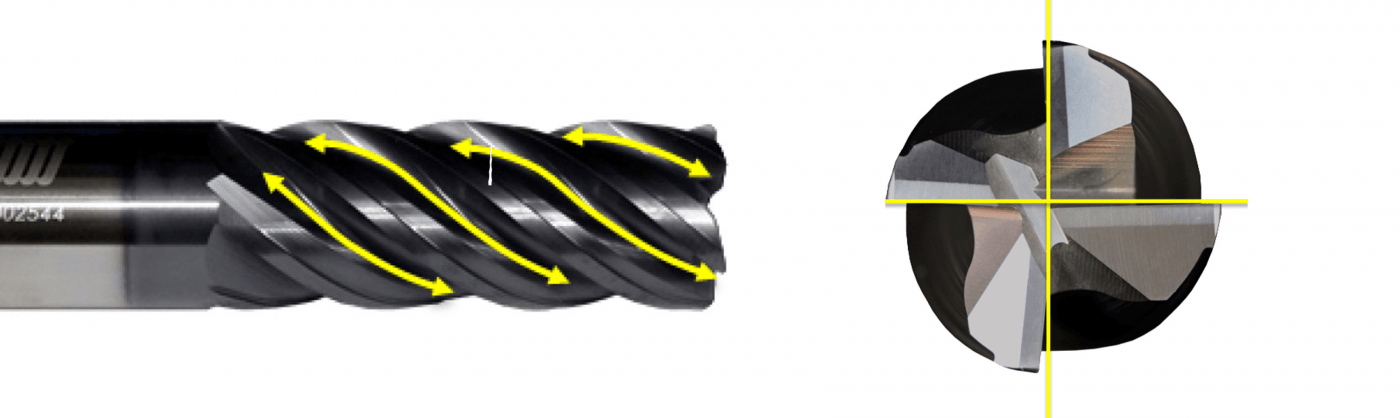

Carbide end mills come in various types and variations, with differences in size, flute geometries, and coatings. Sizes range from miniature end mills for precise applications to larger, heavy-duty options for more robust tasks. Flute geometries, such as square, ballnose, and corner radius, offer different cutting capabilities. Additionally, coatings can enhance tool performance by improving lubricity, heat resistance, and reducing wear.

Factors to Consider When Choosing Carbide End Mills

When selecting carbide end mills, several factors come into play to ensure the best machining results. Here are some key considerations:

Material to be Machined and its Hardness

The first step is understanding the material you'll be machining and its hardness. Different materials require specific cutter designs and coatings to achieve optimal results. For example, a harder material like stainless steel would benefit from a carbide end mill with a TiAlN coating, while softer materials like aluminum may perform better with an uncoated or coated end mill.

Desired Cutting Speed and Feed Rate

Next, determine the desired cutting speed and feed rate for your application. Higher cutting speeds can increase productivity, but it's essential to balance speed with the machine's capabilities and the material being machined. A higher feed rate allows for faster material removal but may result in increased tool wear. Consider consulting tooling suppliers or experts for recommendations specific to your project.

Required Surface Finish and Tolerance

The surface finish and tolerance required play a significant role in choosing the right carbide end mill. Finer finishes and tighter tolerances may demand specific flute geometries or coatings. Analyze your project's specifications to ensure the selected end mill can meet the desired surface finish and tolerance requirements.

Machine Stability and Spindle Power

Take into account the stability of the machine and its spindle power when selecting a carbide end mill. Smaller machines may not handle heavy-duty end mills efficiently or may require adjustments to cutting parameters. Assessing machine capabilities will help avoid any issues during the machining process and maximize tool life.

Budget and Cost-Effectiveness

Lastly, consider your budget and the cost-effectiveness of your choice. Carbide end mills often come with a higher price tag compared to other materials. However, they offer exceptional durability, longer tool life, and better performance, making them a worthwhile investment in the long run. Balance your budget with the desired tool quality and the expected lifespan for the best value.

Choosing the Right Carbide End Mill

With the factors above in mind, let's go through the process of choosing the right carbide end mill:

First, assess your application requirements based on the factors mentioned earlier. Understand the material, required cutting parameters, and the desired surface finish. Analyzing this information will help you navigate through the abundance of choices available in the market.

Don't be shy to consult with tooling suppliers or experts. They possess valuable knowledge and experience when it comes to selecting the perfect carbide end mill for your specific needs. Their insights can save you time, money, and ensure better machining results.

Consider the various flute geometries available and their corresponding applications. For example, a square end mill is ideal for general milling, while a ballnose end mill allows for contouring and finishing surfaces. Understanding the flute geometries will help you achieve the desired cutting results.

Coatings are another important aspect to consider. Carbide end mills can be coated with various materials like TiAlN, TiCN, or AlTiN. These coatings enhance tool performance by reducing friction, dissipating heat, and prolonging tool life. Take into account the material being machined and the desired outcome when choosing the appropriate coating.

Proper Use and Maintenance of Carbide End Mills

To get the most out of your carbide end mills, it's crucial to use and maintain them properly:

Handling and Storage

Handle carbide end mills with care to prevent damage. Avoid dropping or mishandling them. When storing, make sure they are kept in a clean and dry environment to prevent corrosion or contamination.

Mounting and Alignment

Follow proper mounting and alignment procedures when using carbide end mills. Ensure they are inserted securely into the machine's spindle with appropriate tool holders and collets. Poor alignment can result in reduced tool life and poor machining performance.

Optimal Cutting Parameters

Find the optimal cutting parameters for your application. Experiment with cutting speeds, feed rates, and depth of cuts to achieve the best results. Start with conservative parameters and gradually increase them while monitoring tool performance and surface finish.

Maximizing Tool Life and Productivity

To maximize tool life and productivity, consider using coolant to dissipate heat and improve chip removal. Regularly inspect the tool for signs of wear or damage and replace as necessary. Cleaning the tool and removing chips will also help prolong its lifespan.

Troubleshooting and Resolving Common Issues

Despite your best efforts, issues may arise during the machining process. Here are some common problems and techniques to resolve them:

Tool Wear

Tool wear is inevitable but can be minimized. Regularly inspect the tool for signs of wear, such as dull cutting edges. Depending on the extent of wear, you may need to replace the tool or simply resharpen it. Use proper coolant and cutting parameters to avoid excessive tool wear.

Poor Surface Finish

If you're not achieving the desired surface finish, try reducing the feed rate or increasing the cutting speed. Properly aligning the tool and ensuring rigidity in your setup can also help improve surface finish.

Safety Considerations

Safety is paramount when working with carbide end mills. Consider the following precautions:

Wear appropriate safety gear, including safety glasses, gloves, and protective clothing. Make sure you have a well-ventilated workspace to avoid inhaling any machining byproducts or fumes. Follow manufacturer recommendations for tool changes and adjustments, and be cautious when handling sharp tools. Dispose of used carbide end mills responsibly and consider recycling options.

Start Now

Conclusion

And there you have it! We've explored the benefits of carbide end mills, how to choose the right one for your machining needs, and the proper techniques to use and maintain them. Remember, carbide end mills are your allies when it comes to precision machining. By understanding their capabilities and implementing best practices, you'll be well on your way to achieving exceptional results in your machining projects. Happy machining!
