APMT1135 1604 CNC Milling Tools For Hard Metal

Product Name: APMT1135 1604 CNC Milling Tools for Hard Metal

Model Number: APMT1135 APMT1604

Product Parameters:

1. Brand name: KESAI

2. Grade: KP0625 KP0528 KALU10

3. Hardness: 92HRC

4. Type: Milling inserts, Regular

5. Coating/Coverage: PVD Coated, CVD coated

6. HRC: for 45HRC work material

7. Holder: BAP300R, BAP400R milling holders

8. Minimum Order Quantity(MOQ): 10pcs/1 box

9. Controlling mode: CNC Milling Machines

10. Work material: Cast iron, Steel, Stainless steel

Main Features:

Carbide milling inserts: Carbide (tungsten steel) has a series of excellent properties such as good hot hardness, wear resistance, good strength and toughness, heat resistance, and corrosion resistance. Especially high hardness and wear resistance, even at 500 degrees, 1000 degrees hardness is still very high.

When selecting a milling insert, the pitch will determine the number of teeth involved in milling at the same time, thus affecting the stability of the cutting and the cutting speed requirements of the machine tool.

Coarse-tooth milling inserts: mostly used for rough machining because of the large chip pocket. If the chip pocket is not large enough, it will make it difficult for the chip to roll or increase the friction between the chip and the workpiece of the cutter body. Coarse-pitch milling inserts have a higher chip load per tooth than fine-pitch milling inserts.

Fine-tooth milling inserts: often used for fine milling, the cutting depth is shallow during fine milling, the required power is not large, and a larger feed rate can be selected.

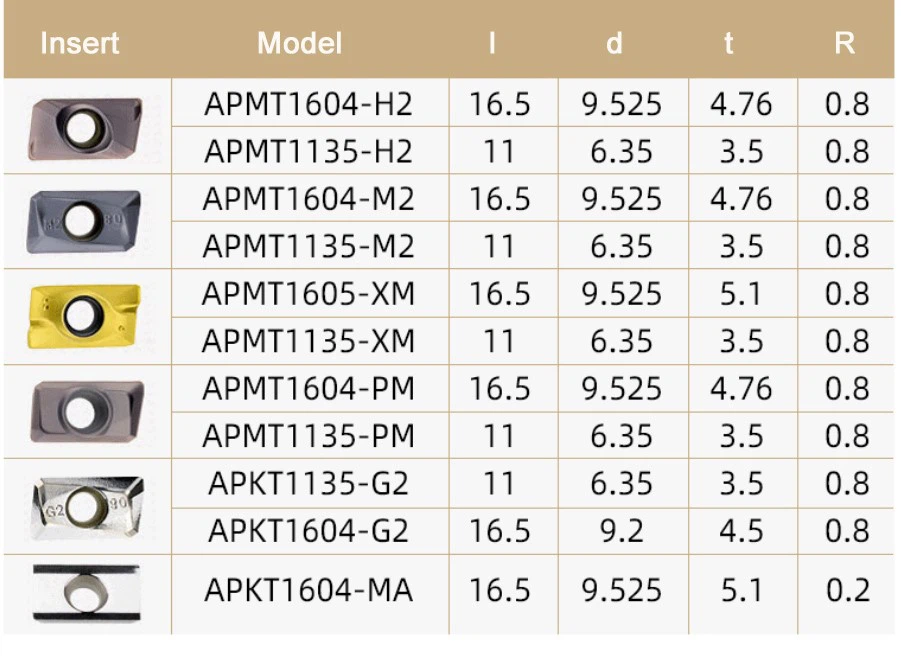

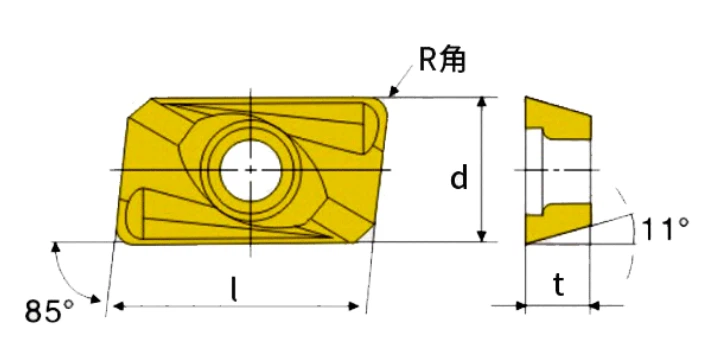

Models & Grade:
